16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP

SKU: D-1656GP
$12.99 $12.99
16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $12.99 = $12.99
save $0.00
Add to Favorites
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
1/1
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
  • Description

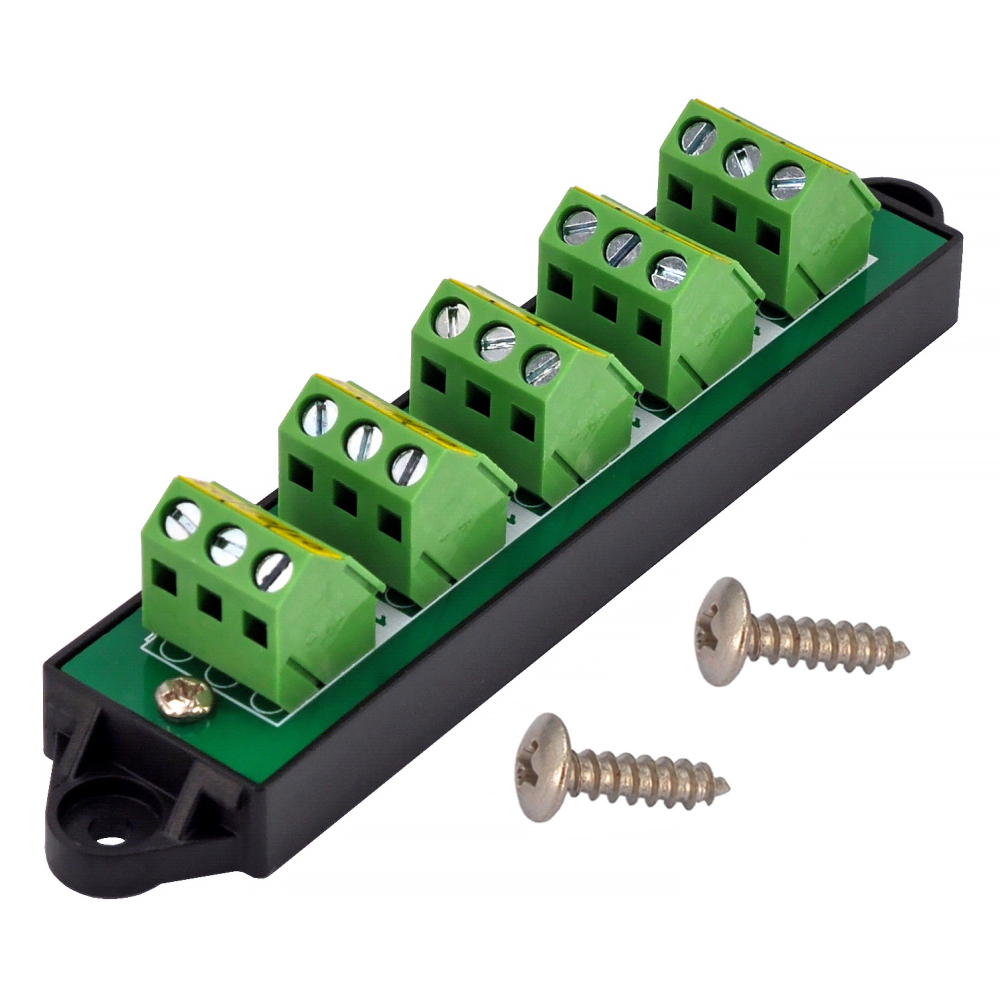

1, 16Amp 300V 3x5 position screw terminal block distribution module.
2, Rated current 16 Amp(per pole total input or output), Maximum voltage 300V.
3, Screw terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
4, UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.

Other, if you can purchase more than 100 pieces, we can provide special customization services and print the content you want on the mounting base, such as your logo and product number, etc.
