16Amp 48V 2x12 Position Terminal Block Distribution Module. OONO D-1410GP

Name: 16Amp 48V 2x12 Position Terminal Block Distribution Module. OONO D-1410GP
Brand: Xiken Tech
SKU: D-1410GP
Price: 12.99 USD
Availability: InStock

SKU: D-1410GP

$12.99 ~~$12.99~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

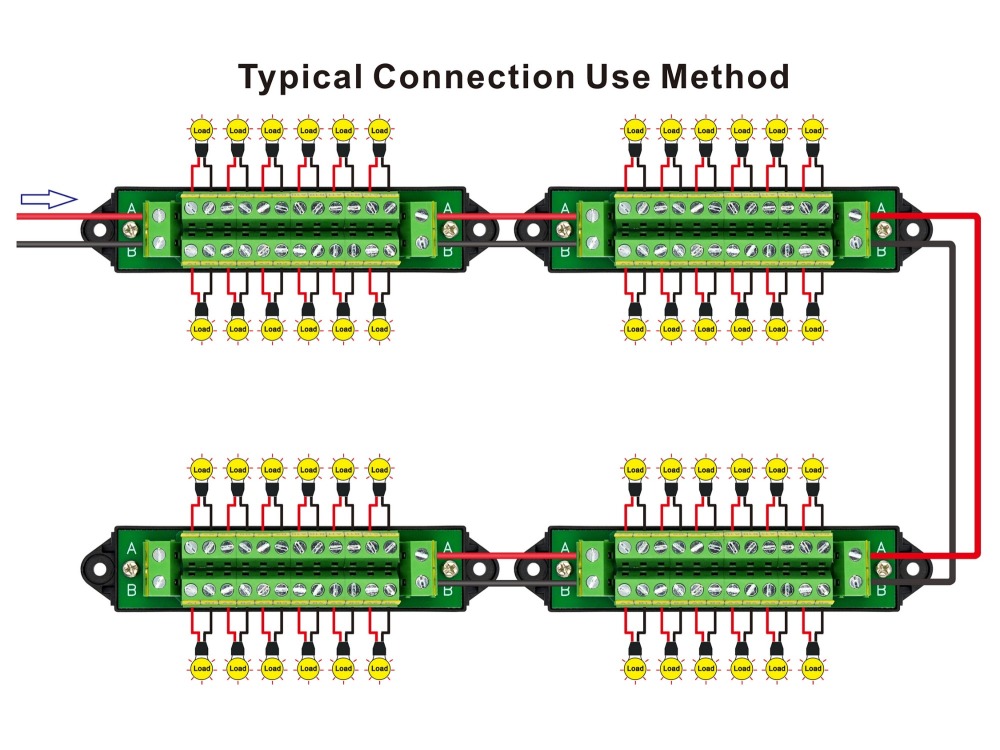

1, 16Amp 48V 2x12 position screw terminal block distribution module. Support for multiple module extension connections.
2, Rated current 16 Amp(total input or output), Maximum voltage 48V.

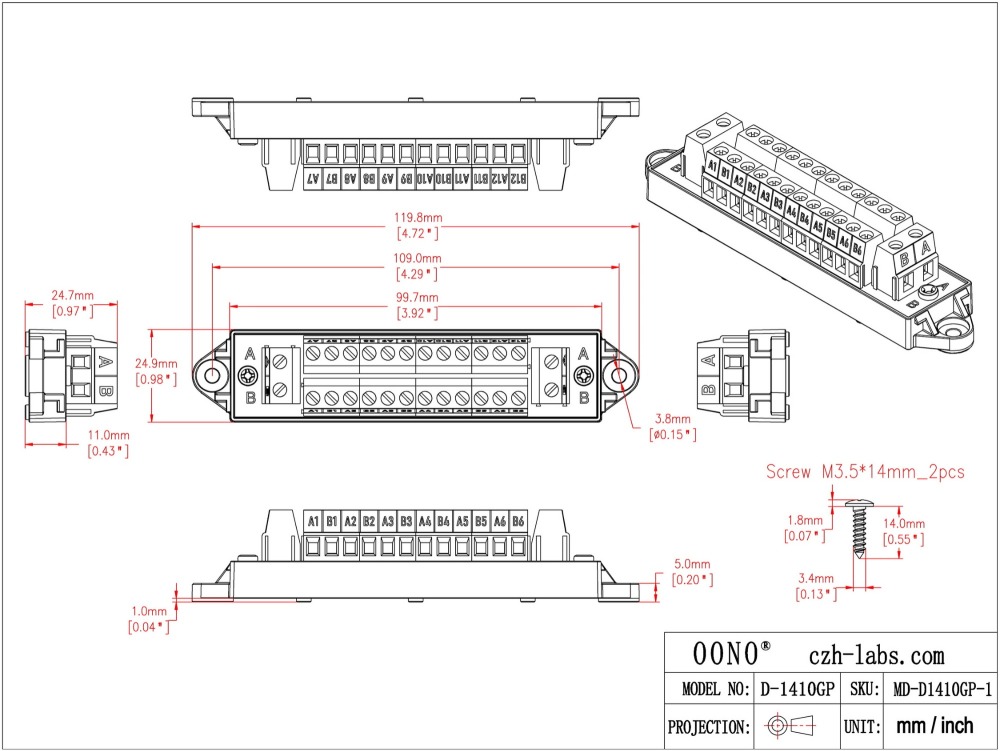

3, A / B terminal blocks, Pitch 7.5mm/0.295", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
4, A1~B6 / A7~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

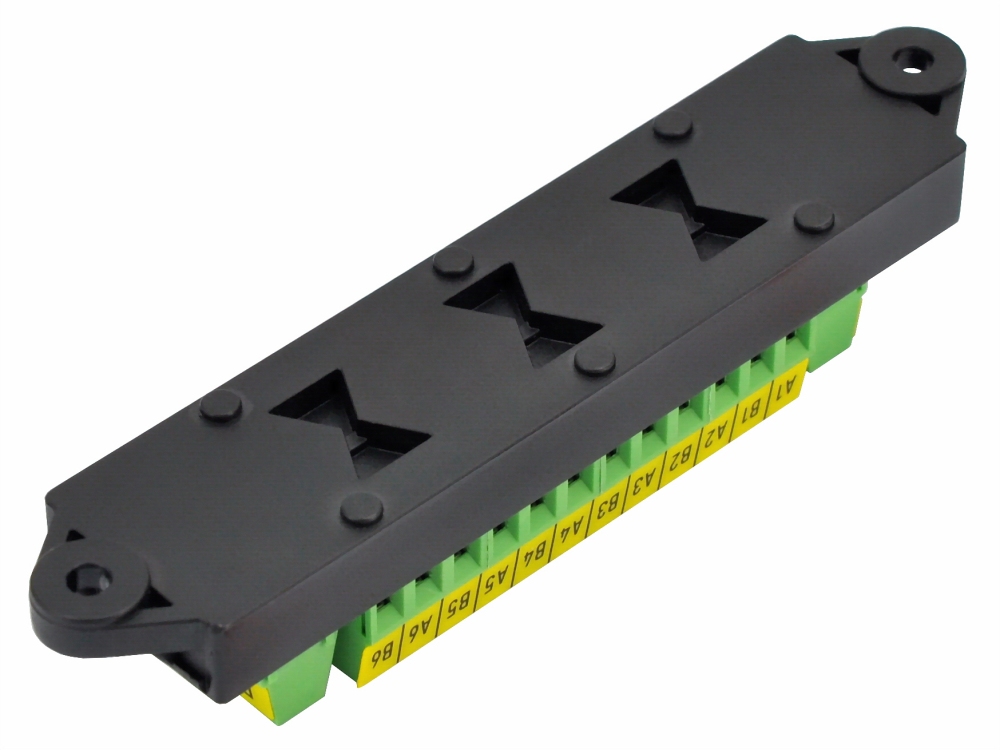

5, UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.

Other, if you can purchase more than 100 pieces, we can provide special customization services and print the content you want on the mounting base, such as your logo and product number, etc.
