20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)

SKU: HD028T
$22.99 $22.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $22.99 = $22.99
save $0.00
Add to Favorites
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
1/1
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • Description

DIN Rail Mount 20 Position 30A / 300V Screw Terminal Block Distribution Module.
Terminal Block Pitch 7.62mm/0.3", Strip length 8mm, Screws - M3,steel,Cr3+ Zn plated. Pin header and Cage - Brass.
Wire range 26AWG ~ 10AWG / 4mm square. Rated voltage 300V, rated current 30Amp(per position).
High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.

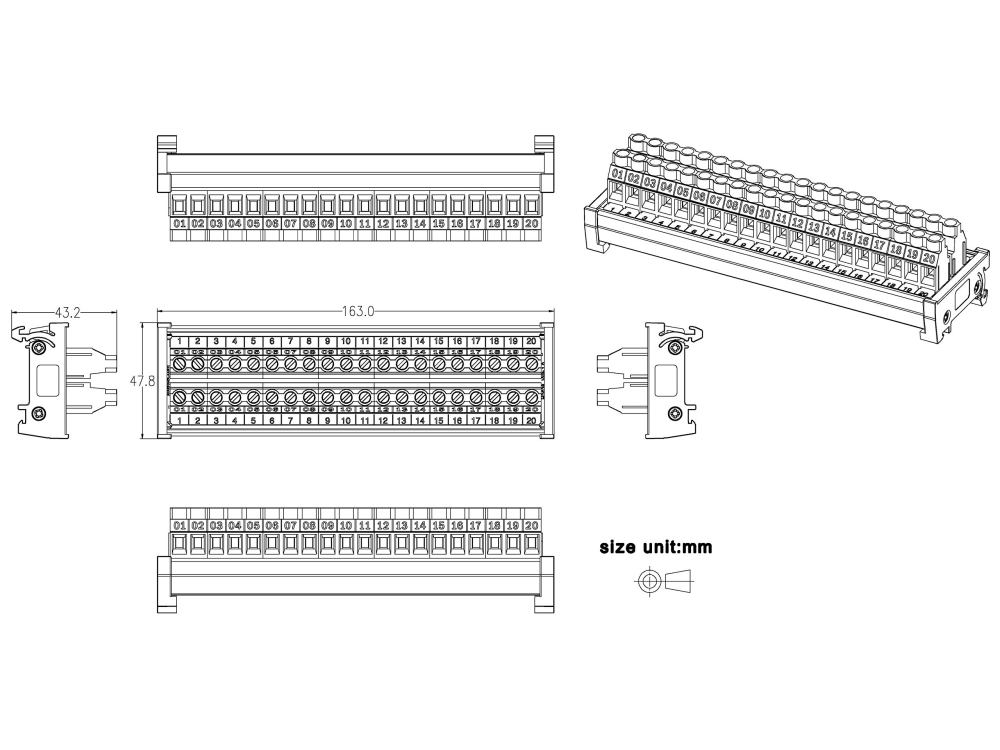

External dimensions: L163mm x W48mm x H43mm / 6.42" x 1.89" x 1.69"
