Home > Power Distribution Module > Barrier Terminal Block Distribution Module > 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
1/1
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
Share:

20Amp 2x6 Position Barrier Terminal Block Module

SKU: D-1448P
$9.90 $9.90
20Amp 2x6 Position Barrier Terminal Block Module
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $9.9 = $9.9
save $0.00
Add to Favorites
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
1/1
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • 20Amp 2x6 Position Barrier Terminal Block Module
  • Description

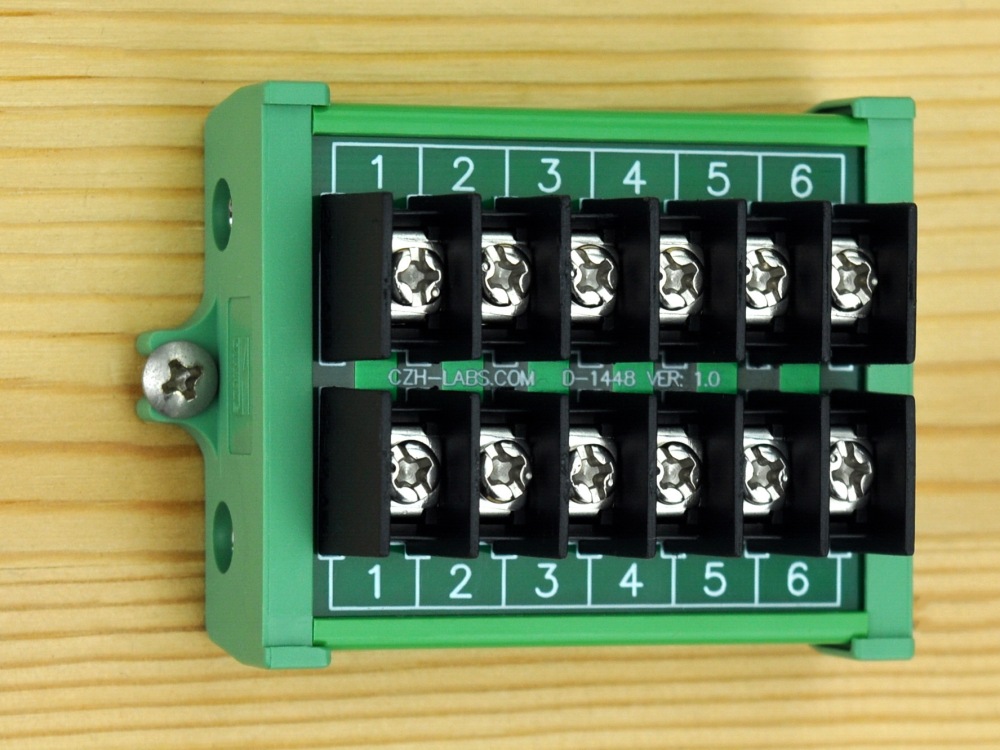

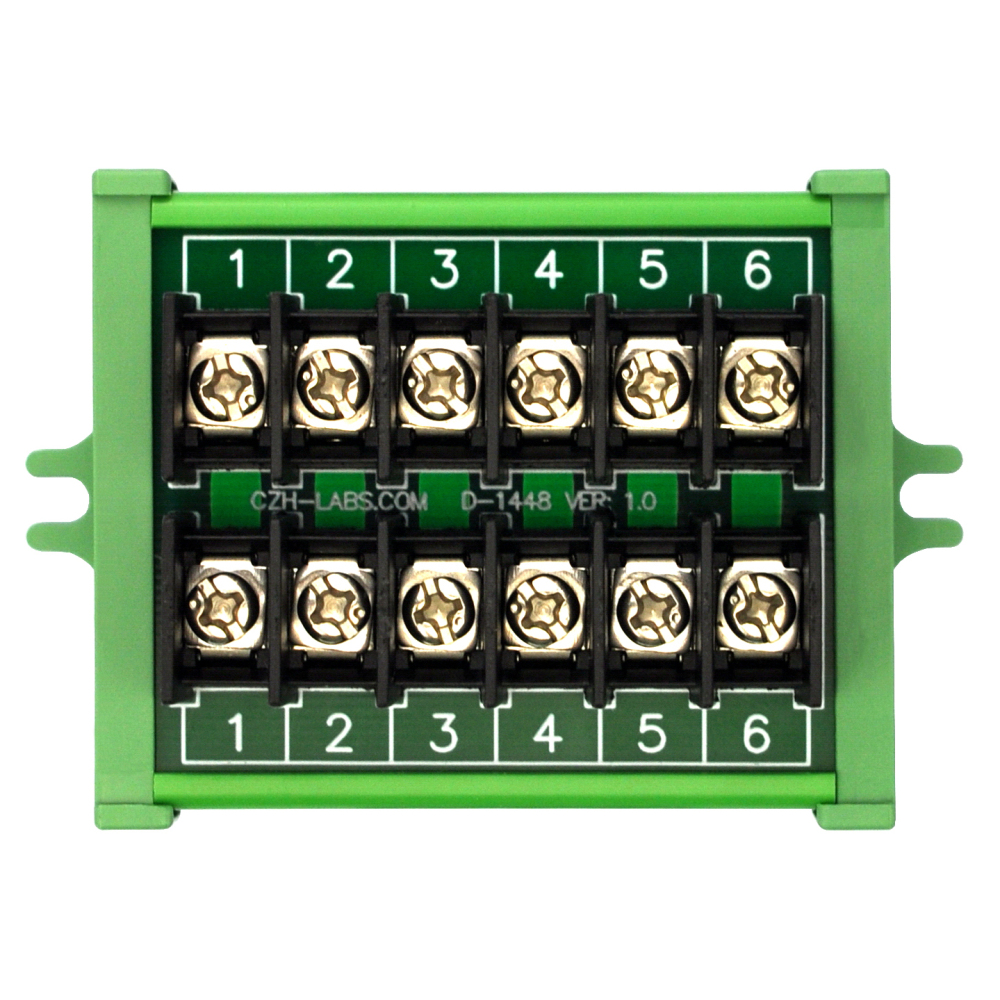

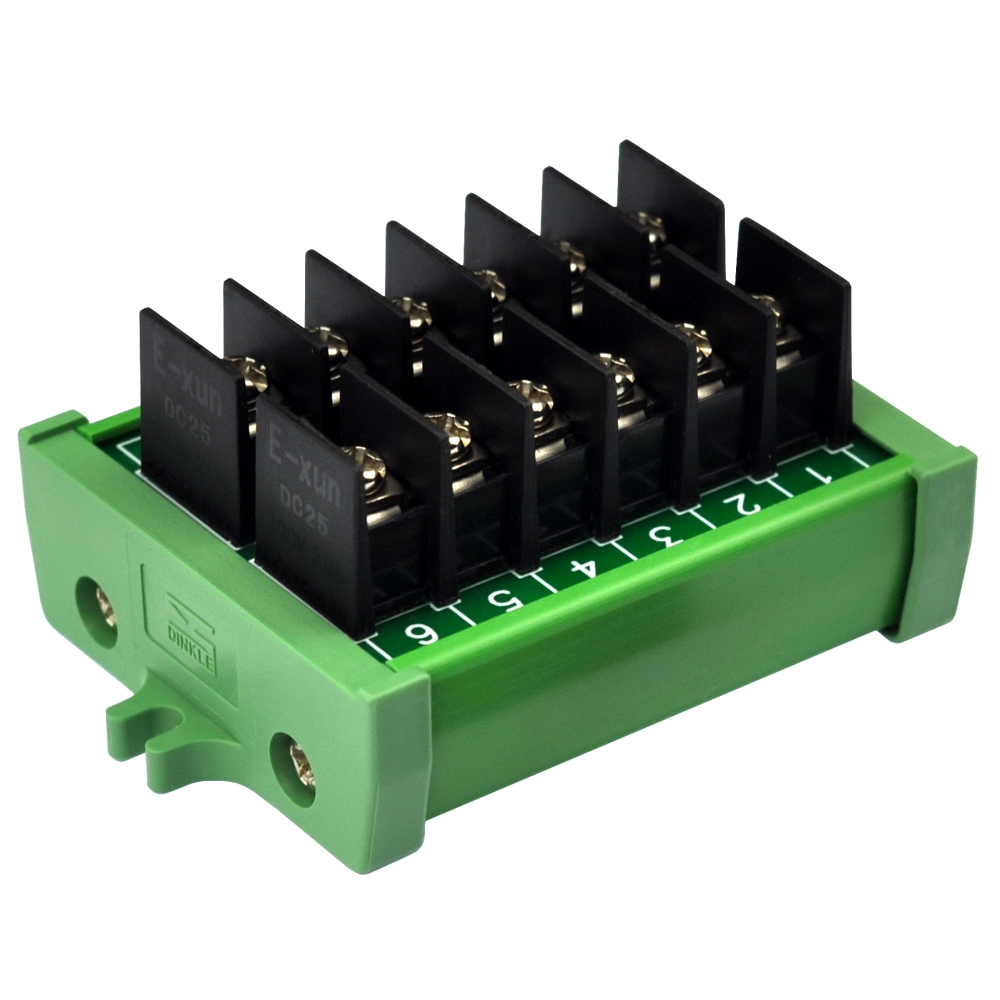

1, 20Amp 2x6 position barrier terminal block module. Screw mount version, included two M3 x 10mm wood screws, you can easily mount it on a wooden board.
2, Rated current 20A(per position). Rated voltage 300V.

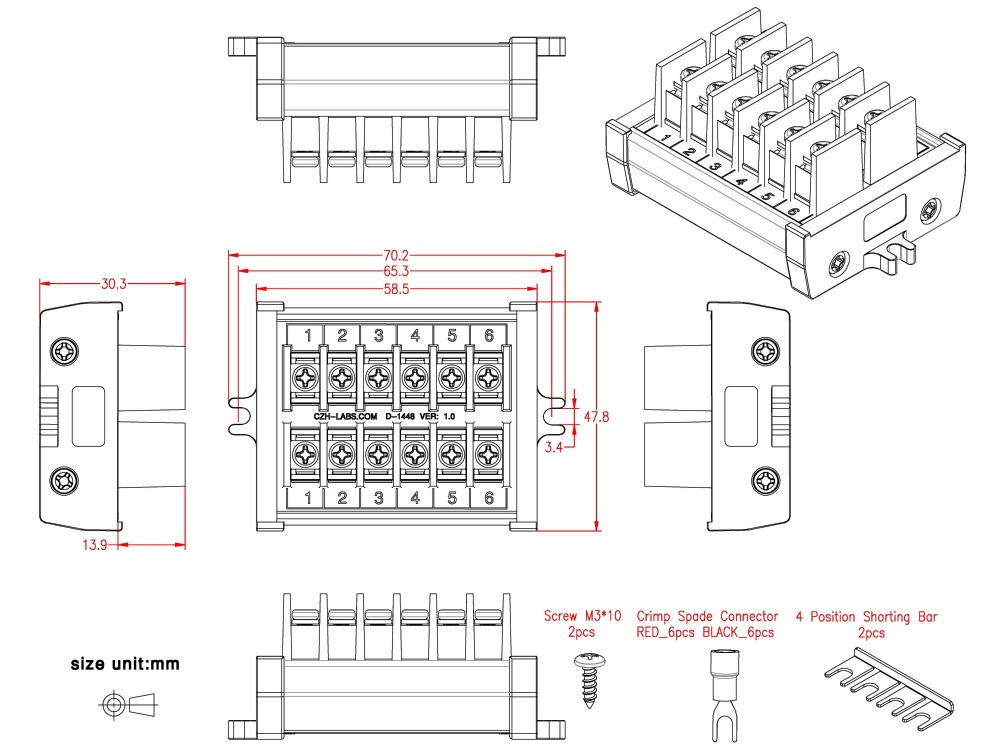

3, Barrier terminal blocks: pitch 7.62mm / 0.3 inch, screw Metric M3(thread diameter 3mm).
4, Taiwan high quality fireproof nylon material mount carrier(not China low quality carrier). FR-4 glass fiber PCB.

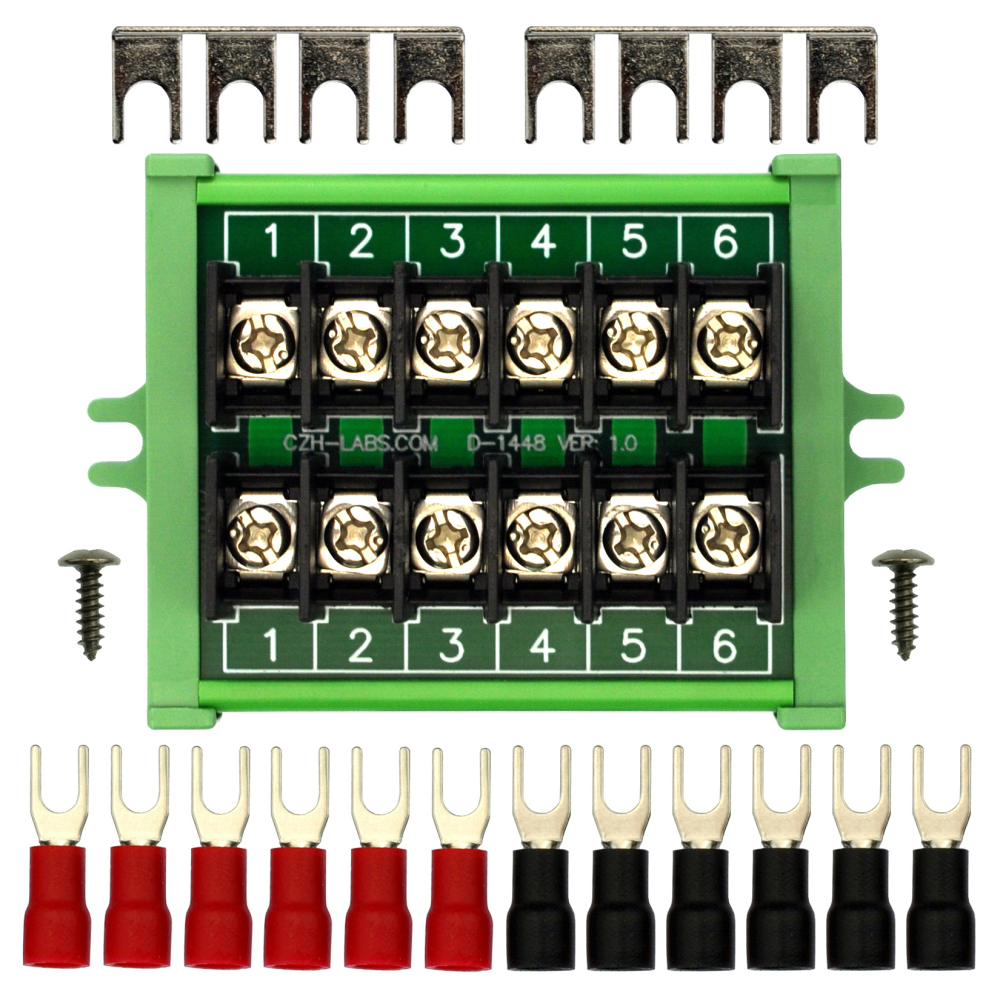

5, Packing list:
    1x Barrier terminal block module.
    2x M3 x 10mm wood screws.
    6x Red crimp spade connectors(26AWG ~ 12AWG / 2.5mm square).
    6x Black crimp spade connectors(26AWG ~ 12AWG / 2.5mm square).
    2x 4-Position shorting bars(It is convenient for you to flexibly short-circuit the wiring).
