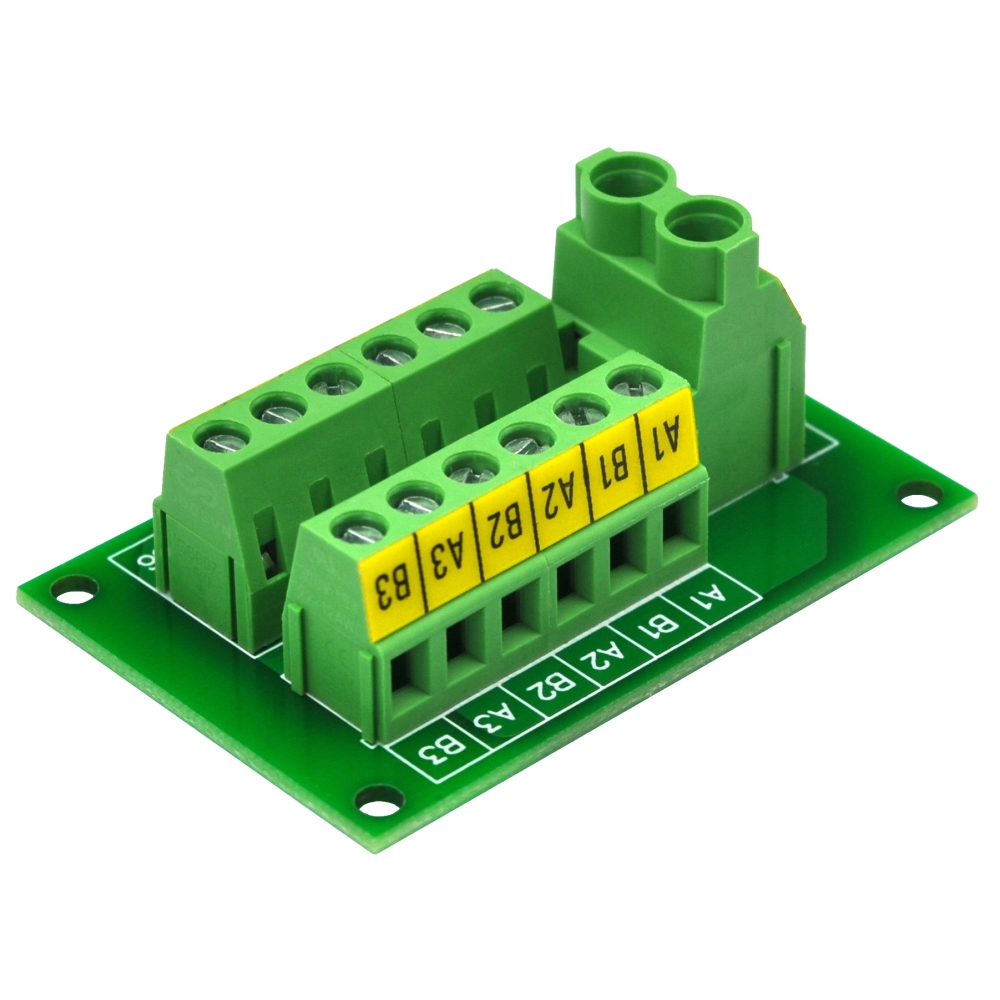

30Amp 48V 2x6 Position Terminal Block Distribution Module

Name: 30Amp 48V 2x6 Position Terminal Block Distribution Module
Brand: Xiken Tech
SKU: D-1459
Price: 9.99 USD
Availability: InStock

SKU: D-1459

$9.99 ~~$9.99~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

1, 30Amp 48V 2x6 position screw terminal block distribution module.
2, Rated current 30 Amp(total input or output), Maximum voltage 48V.

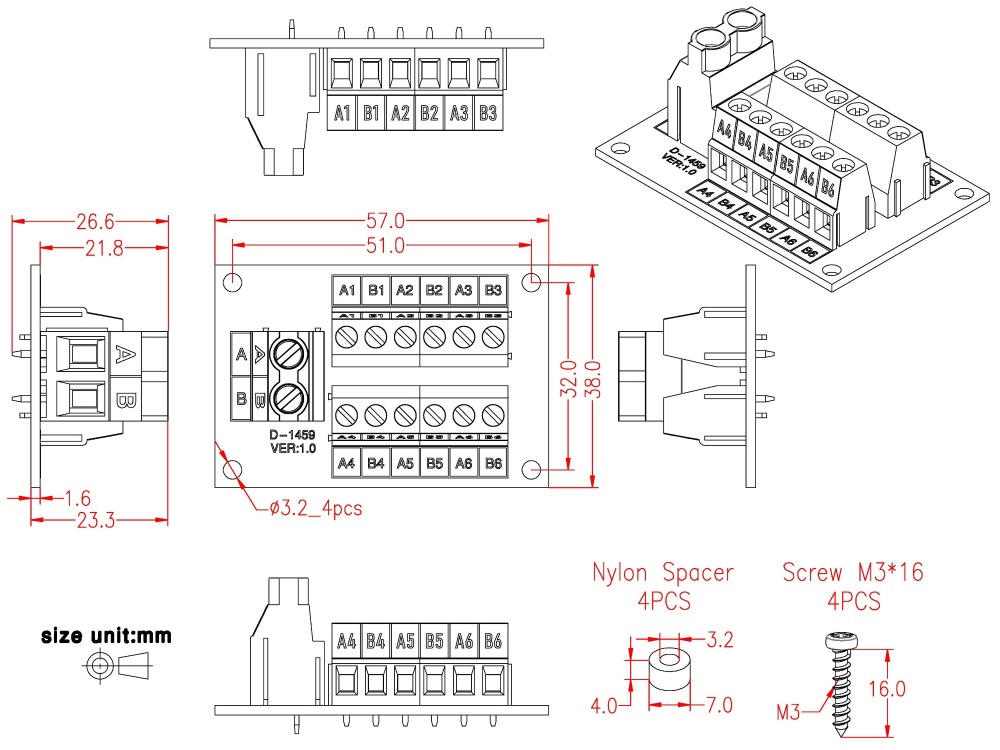

3, A / B terminal blocks, Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, rated current 30Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
4, A1~B3 / A4~B6 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
5, UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.
