This item has been assembled, and electrical test passed.

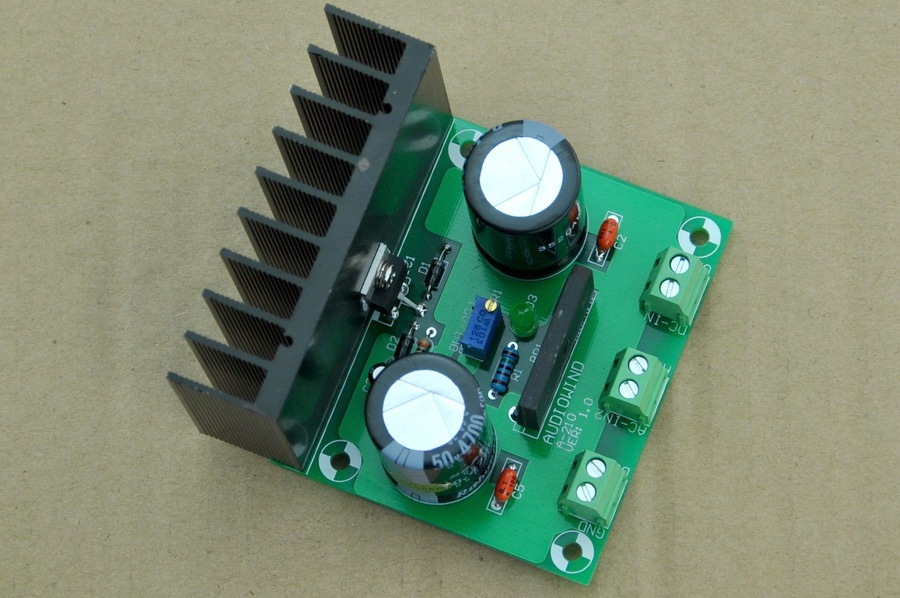

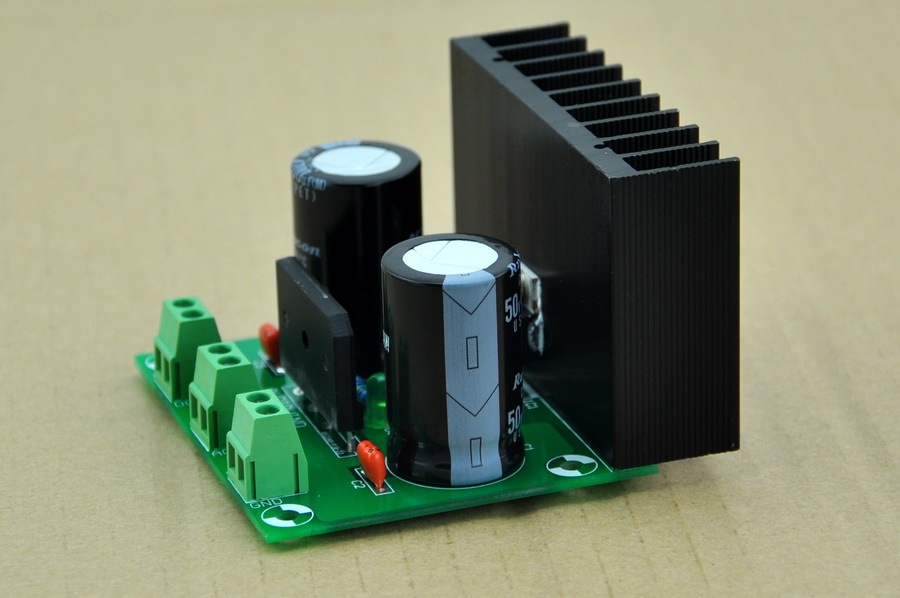

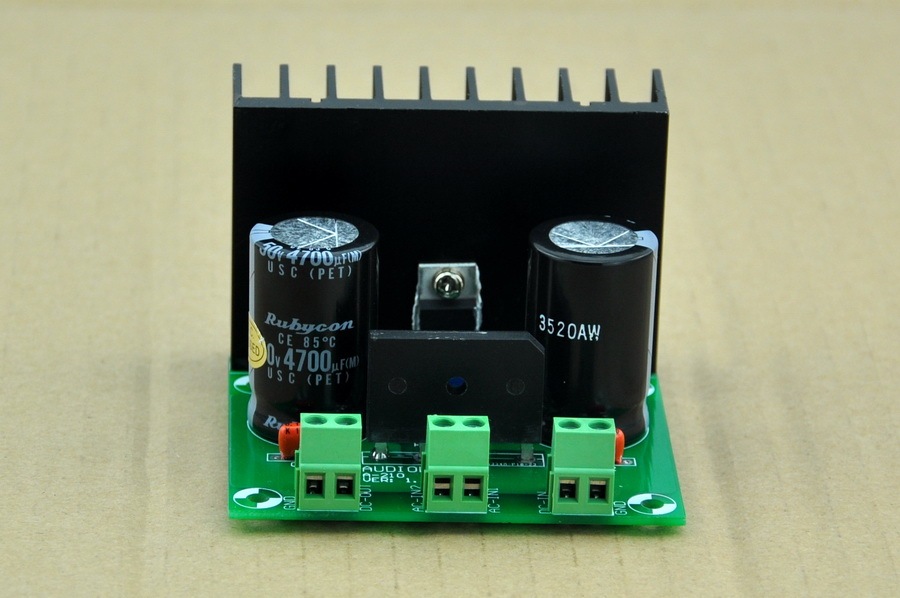

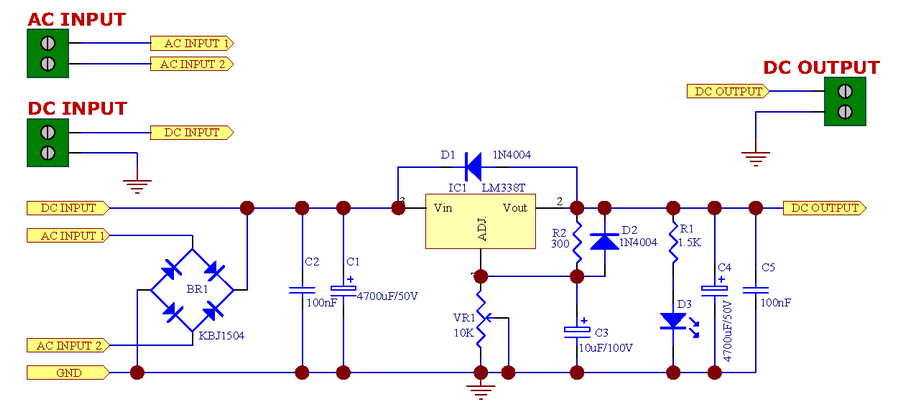

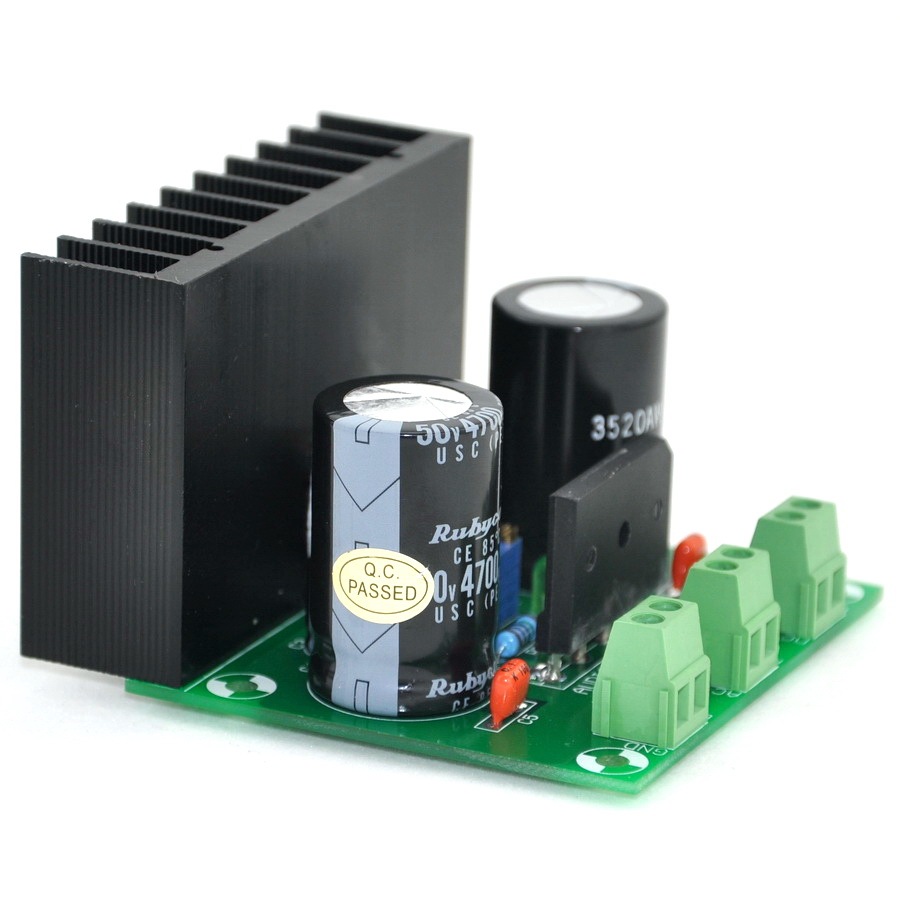

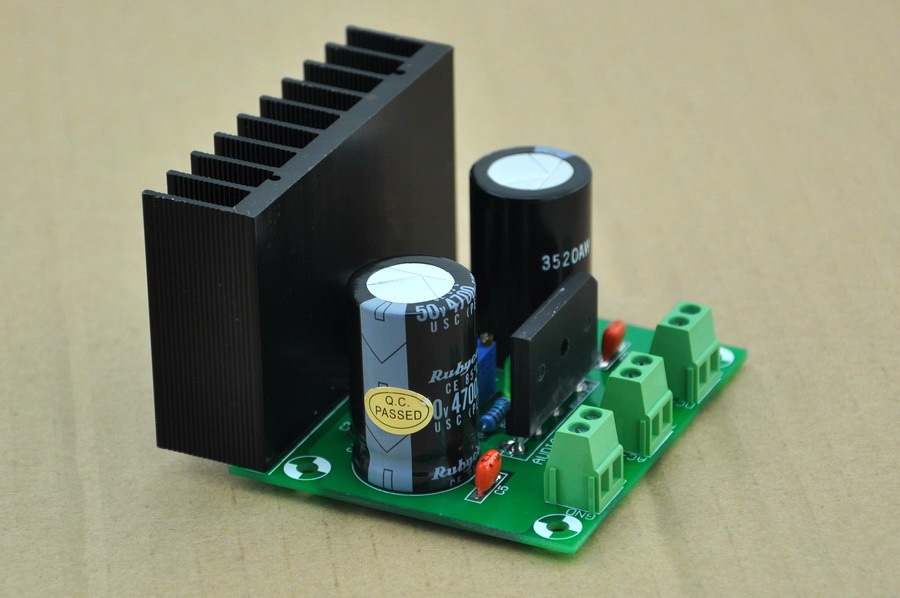

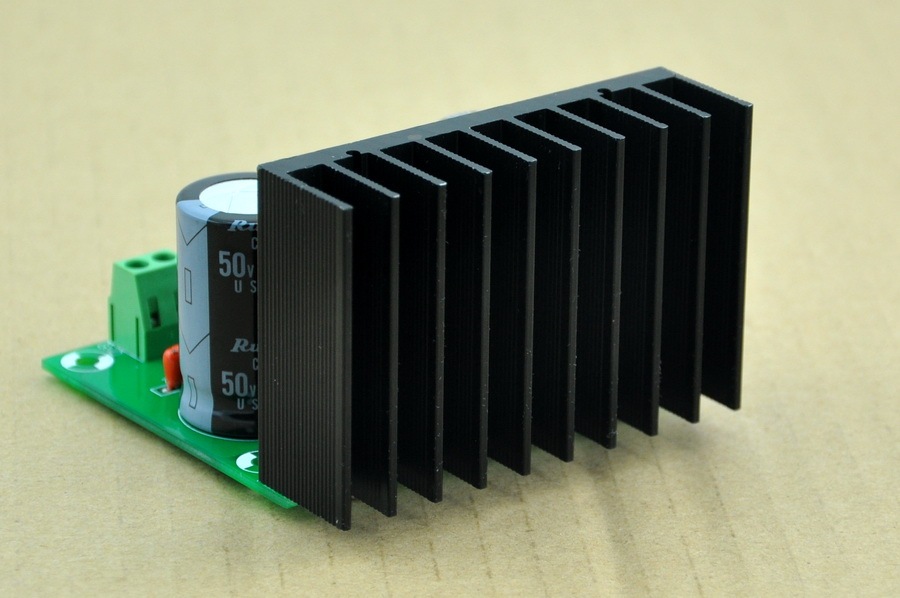

5 Amps voltage regulator module, based on LM338T regulator IC design, AC or DC input, DC output, output voltage LED indicator.
Used high-quality electronic components:

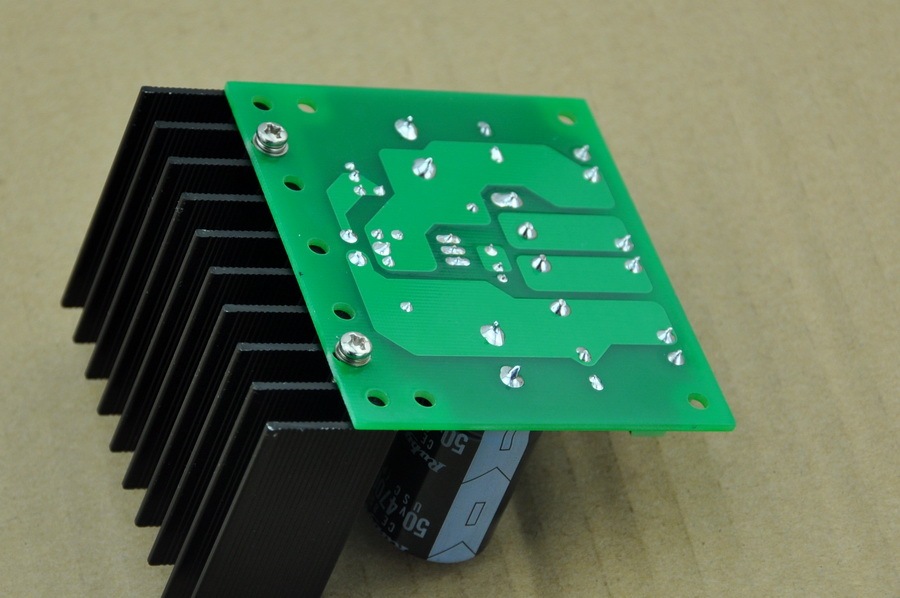

Thickness 1.6mm FR-4 fiber glass PCB (double layer).

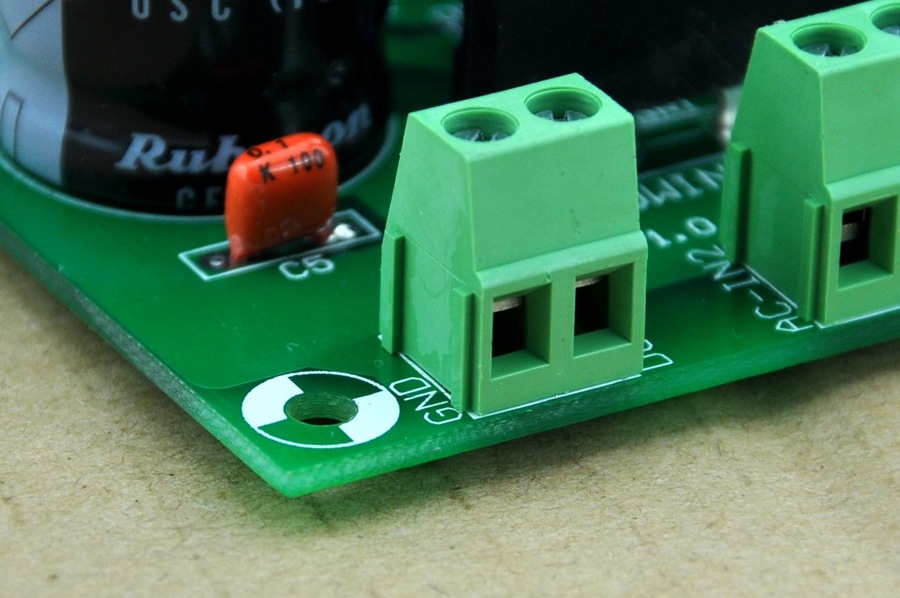

HQ terminal blocks easy connection wire.

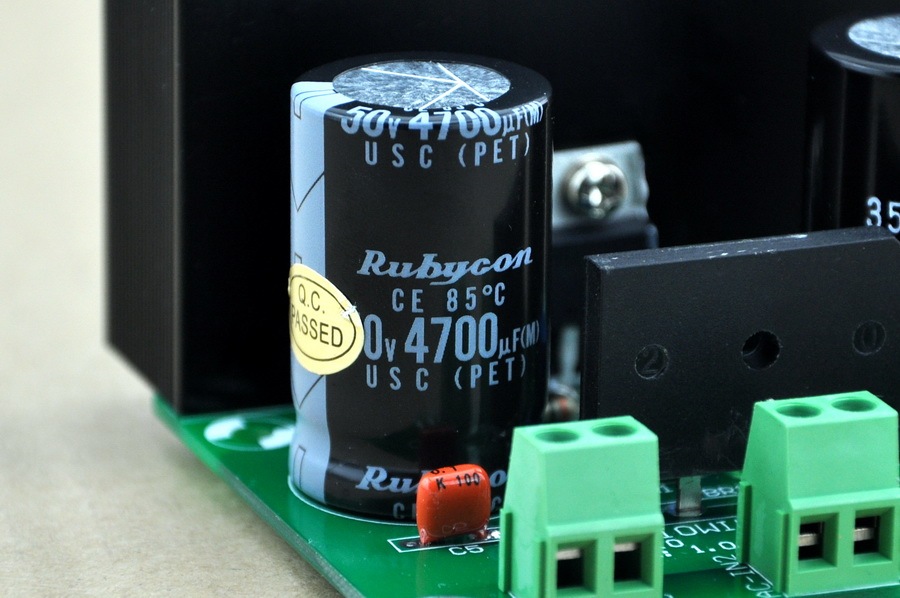

4700uF/50V input and output filter capacitors, 100nF/100V metal film capacitors, conducive to filtering high-frequency noise.
Precision multiturn(28+-3 turns) trimming potentiometer adjust output voltage.
Input voltage:DC 4 - 35V, or AC 4 - 26V.
Output adjustable range: 1.5 - 32V DC.
Maximum continuous output current: 5 Amps.
Module size: 80 x 76.2 x 55 mm (L x W x H)
3.15 x 3 x 2.2 inch (L x W x H)
