AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.

SKU: BYQ-PTC25/18V-1
$54.00 $54.00
AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $54 = $54
save $0.00
Add to Favorites
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
1/1
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • AUDIOWIND In 115/230Vac Out 2x18Vac 25 Watts(VA) Encapsulated Toroidal Power Transformer.
  • Description

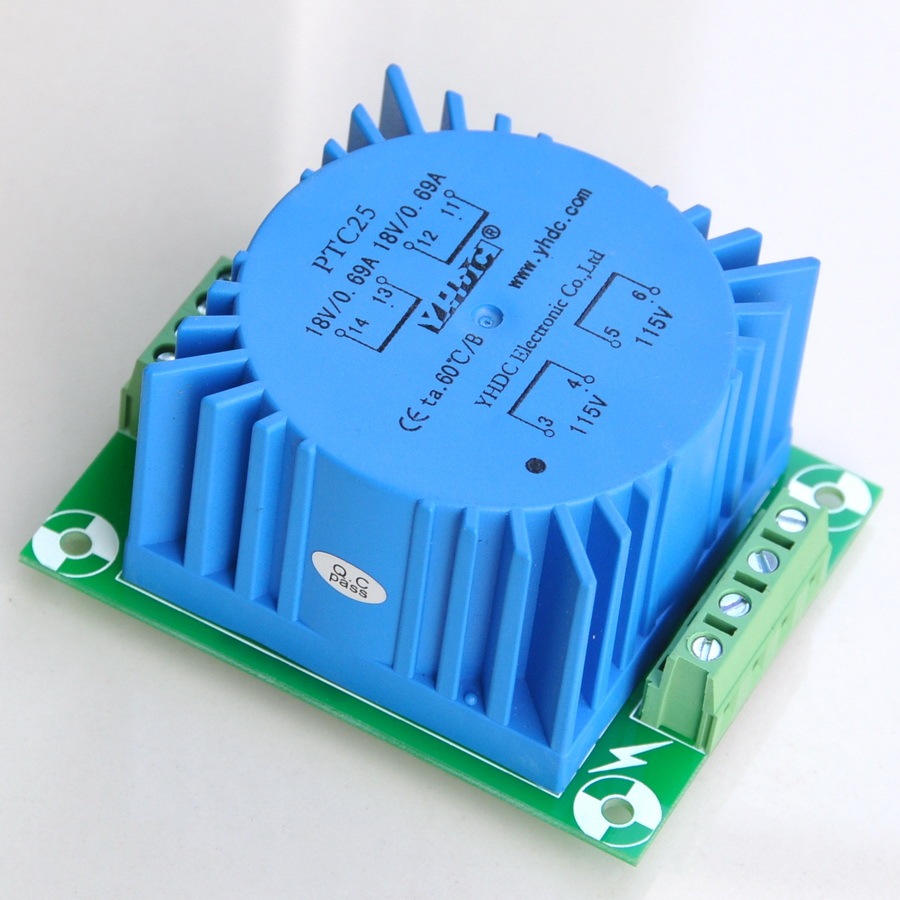

Encapsulated Toroidal Transformer.
Primary: Dual primary, 115V/230V +/-10%, 50/60Hz.
Output Power: 25VA.
Output Voltage: Dual 18V AC.
Output Current: 0.69A.
Secondary: Series or parallel.

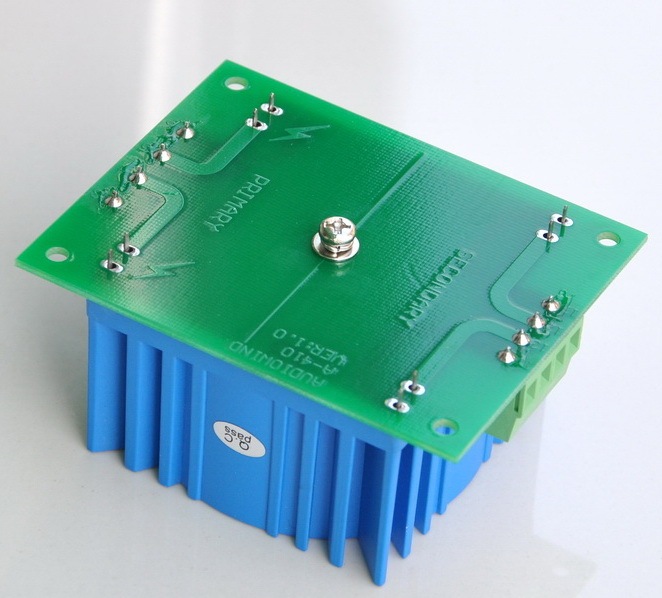

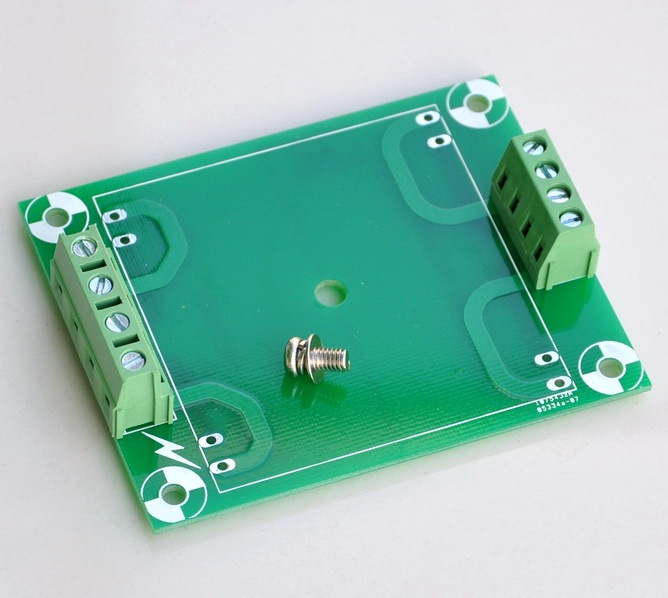

PCB mount type (FREE adaptor PCB, unassembled)
Low magnetic stray field emissions
Low standby current
Low profile
Fully encapsulated
High efficiency
Ambient operating temperature( 40 degree C max.)
Safety/Quality Approvals Details: CE, CQC
Purpose: Applicable for high-end audio, medical equipment & industrial control device requiring low power dissipation .
