Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067

SKU: HD067/120V30A
$99.00 $99.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $99 = $99
save $0.00
Add to Favorites
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
1/1
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
  • Automatic Transfer Switch, AC120V 30A, ATS Auto Transfer Switch, HCDC HD067
  • Description
FEATURES:
1, HCDC HD067 Series Automatic transfer switch, voltage AC 120V / 230V current 20 / 30 Amp 4 versions are available. Select input source automatically or manually. With output on/off control function. With power-off memory function.
2, In automatic mode (press the AUTO button), the automatic selection priorities are: 1 – PRIORITY, 2 - BACKUP. If you want to manually select an input source (manual mode), you can directly press button: PRIORITY or BACKUP. When you want to return to automatic mode, just click the AUTO button.
3, Power ON/OFF control function: When you want to disconnect the load power, just click the ON/OFF button, it will immediately disconnect the live wire and the neutral wire at the same time, and all indicator LEDs will go out.

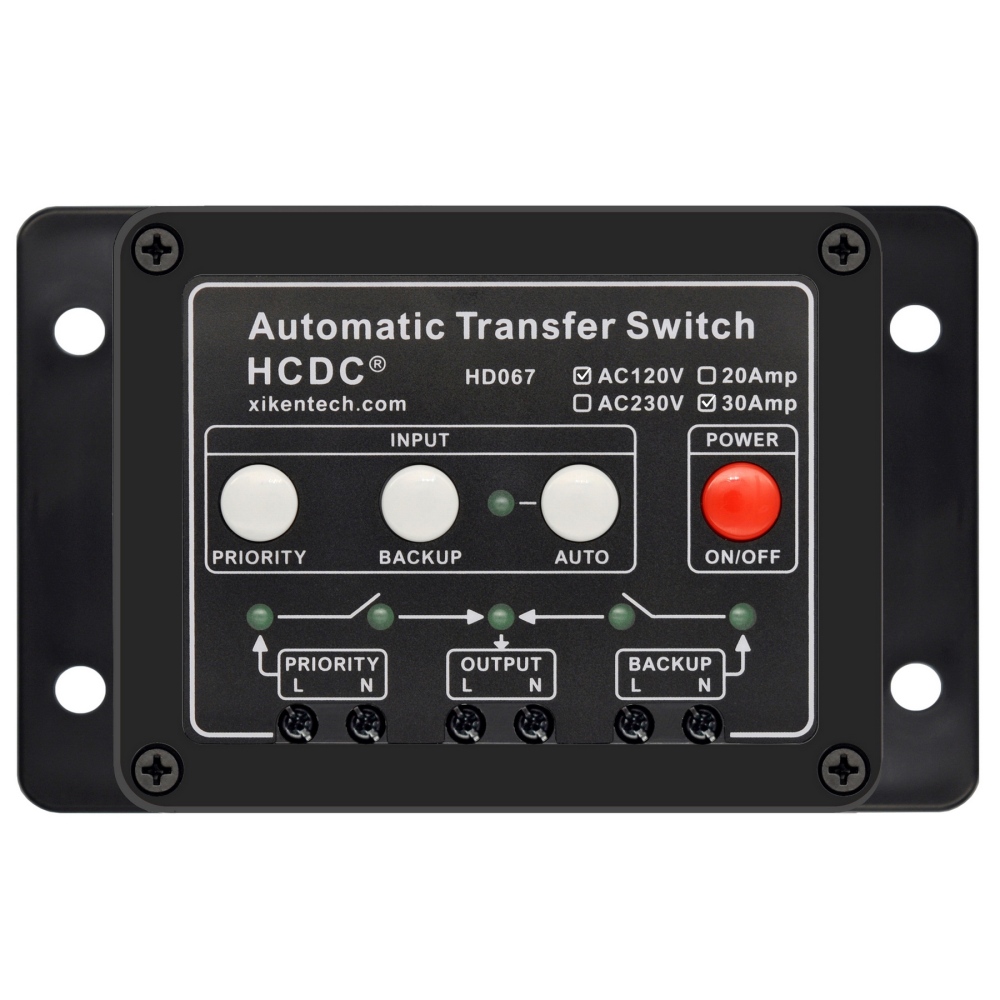

4, Multiple indicator lights allow you to clearly see the product's input source status, output status, operating mode, and the status of the internal relay switch.
5, It has a power-off memory function, and the next time it is powered on, it will return to the state before the power-off, which will not cause unpredictable consequences. The memory includes the operating mode, input source, and output switch status.
6, Transfer time less than 30mS (usually around 15 mS), for most smart devices or computers, the switching action of 30mS time will not affect their normal operation.

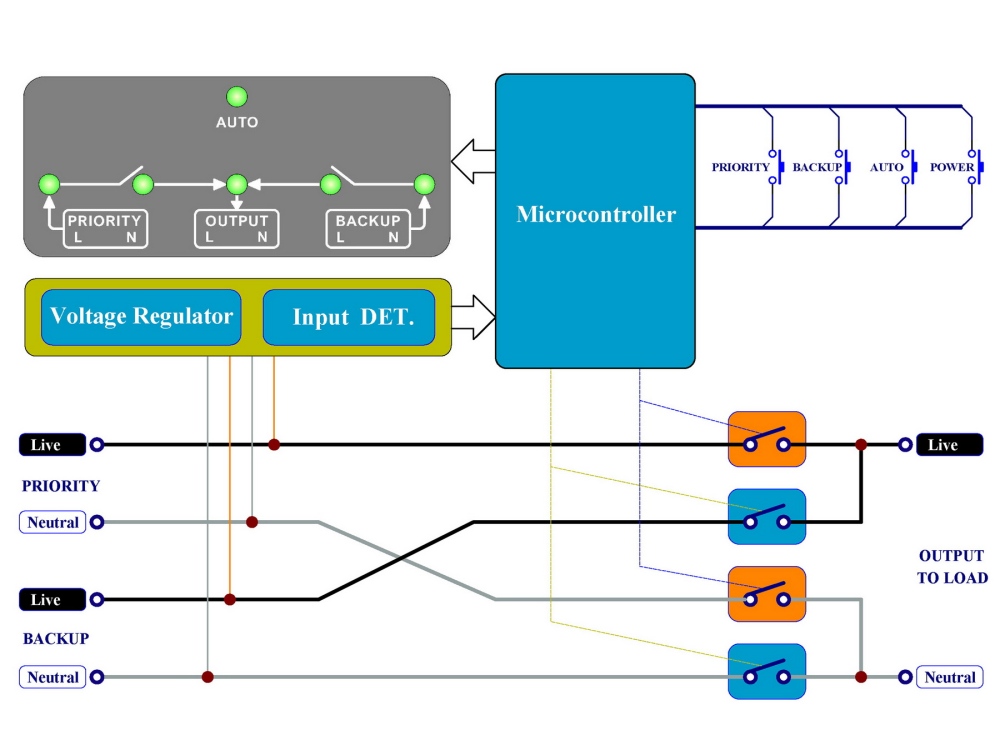

7, The live wire and neutral wire of each input source are controlled by different high-power SPST relays, ensuring that there will be no power arcing and no creepage between different input sources. The design is specially optimized to not cause your GFCI protector to trip for no reason.

SPECIFICATIONS:
    Input or Output Voltage:
        AC 90 - 135V 50/60Hz (for AC120V version)
        AC 180 - 250V 50/60Hz (for AC230V version)
    Maximum Load Current: Available in 20 and 30 Amp versions.
    Transfer Time: < 30 millisecond (usually around 15 milliseconds).
    Terminal Block: Wire 20 - 6 AWG / 10 Square millimeters, Stripping length 10mm, Screw Metric M4
    Case material: ABS plastic.

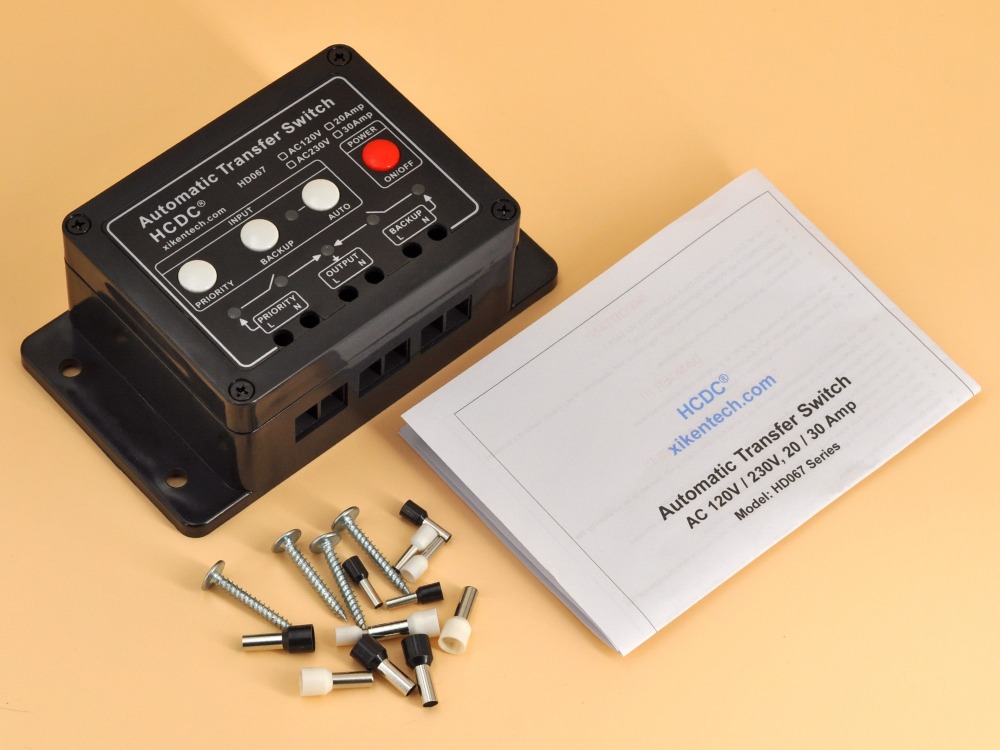

Packing list: 1x ATS module, 4x screws, 3x white and 3x black cord end terminals for AWG 14 - AWG 9, 3x white and 3x black cord end terminals for AWG 10 - AWG 6, 1x user manual.
