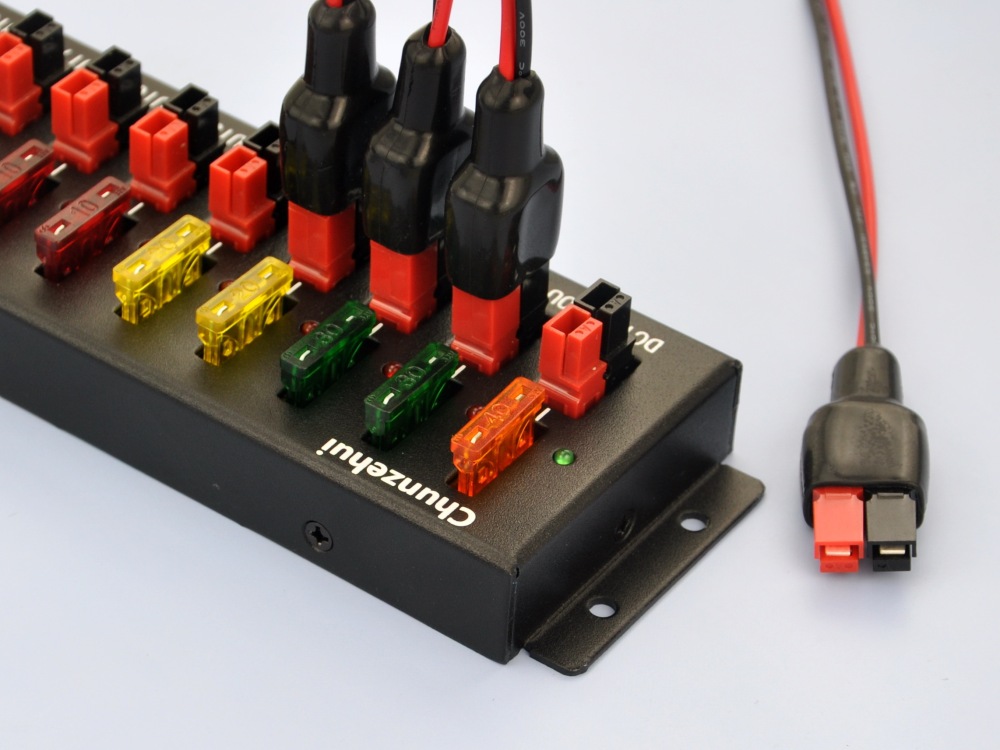

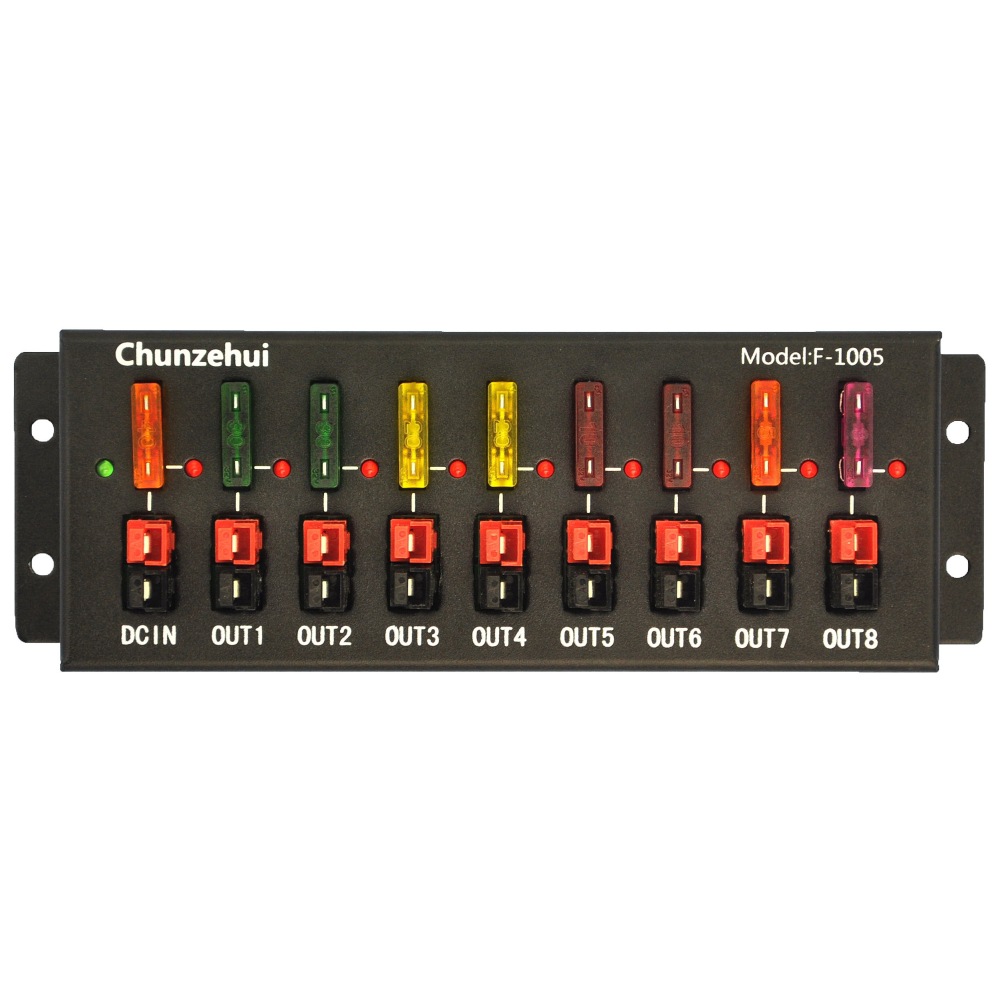

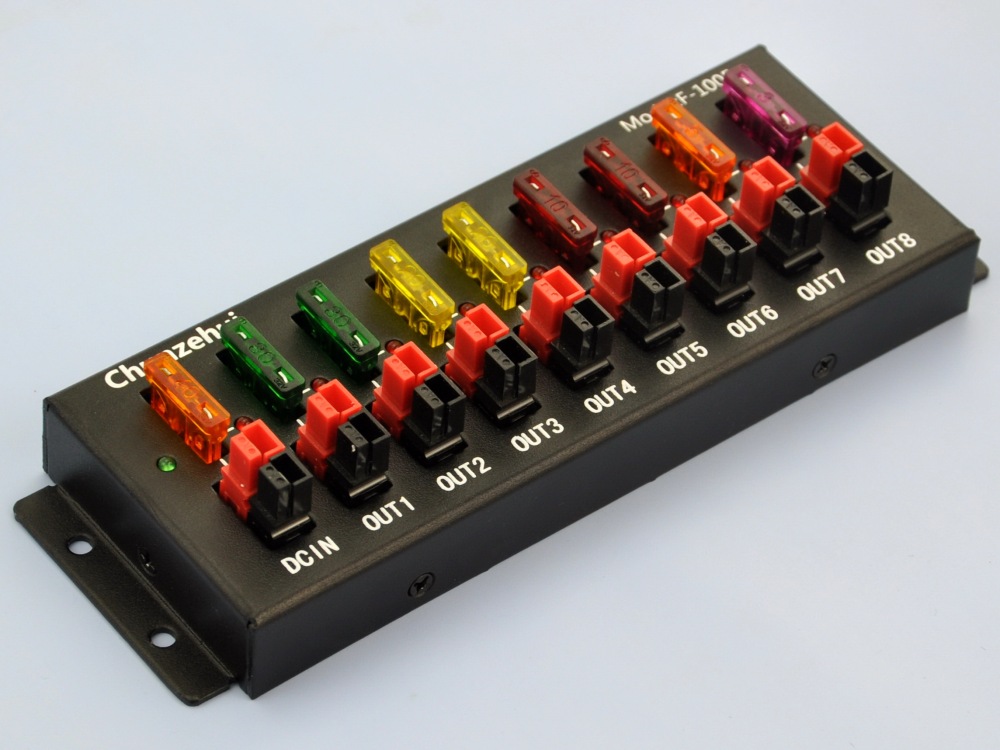

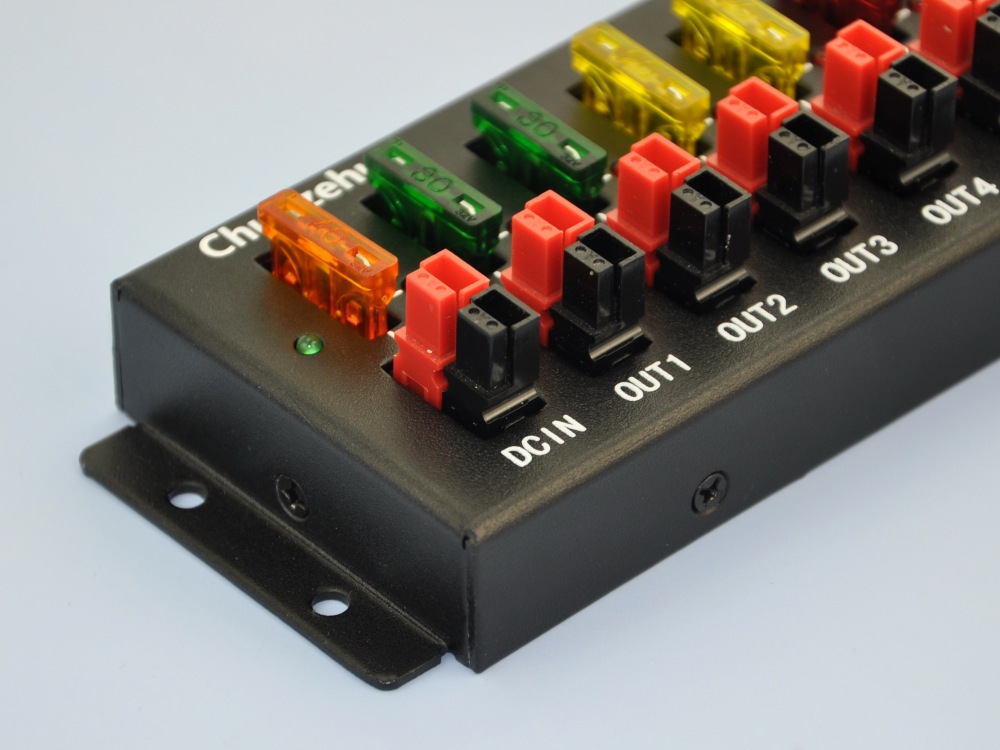

Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.

SKU: F-1005
$59.00 $59.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $59 = $59
save $0.00
Add to Favorites
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
1/1
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Chunzehui F-1005 9 Port 40A Anderson Powerpole Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.
  • Description
Operating voltage: 0 to 32VDC, No-load current: 2mA(for power indicator LED). Input port: maximum input current 40A, fuse 40A. Output port: 8 output ports, fuse 30A*2, 20A*2, 10A*2, 5A*1, 3A*1.

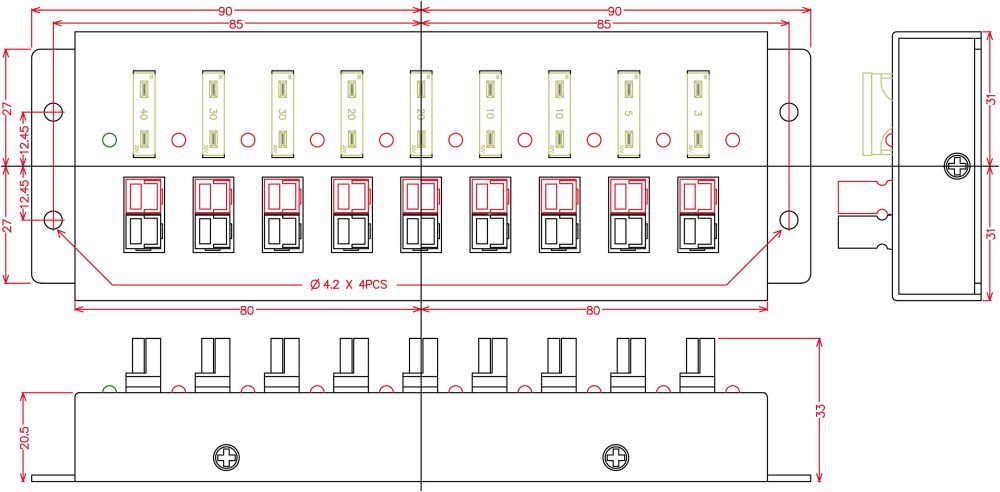

Overall Dimensions(maximum, w/o cables): L180mm x W62mm x H33mm / 7.09"x2.44"x1.30". Gross weight: 320g, Net weight: 250g
With power indicator LED, with fault indicator LED for each fuse. High-quality fuse holder, you can very easy to replace fuse from the outside, ATC/ATO auto fuses are easy to get and are available in 10 values from 1 to 40A.
Aluminum enclosure,thickness 1.5mm/0.06"

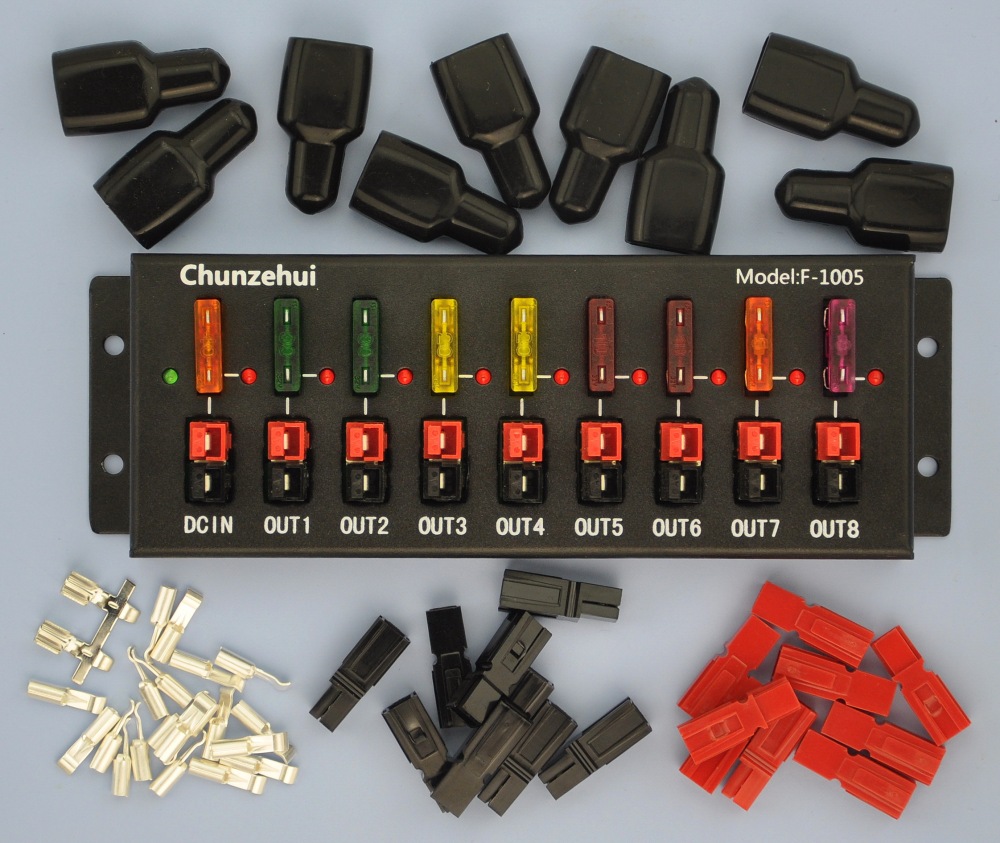

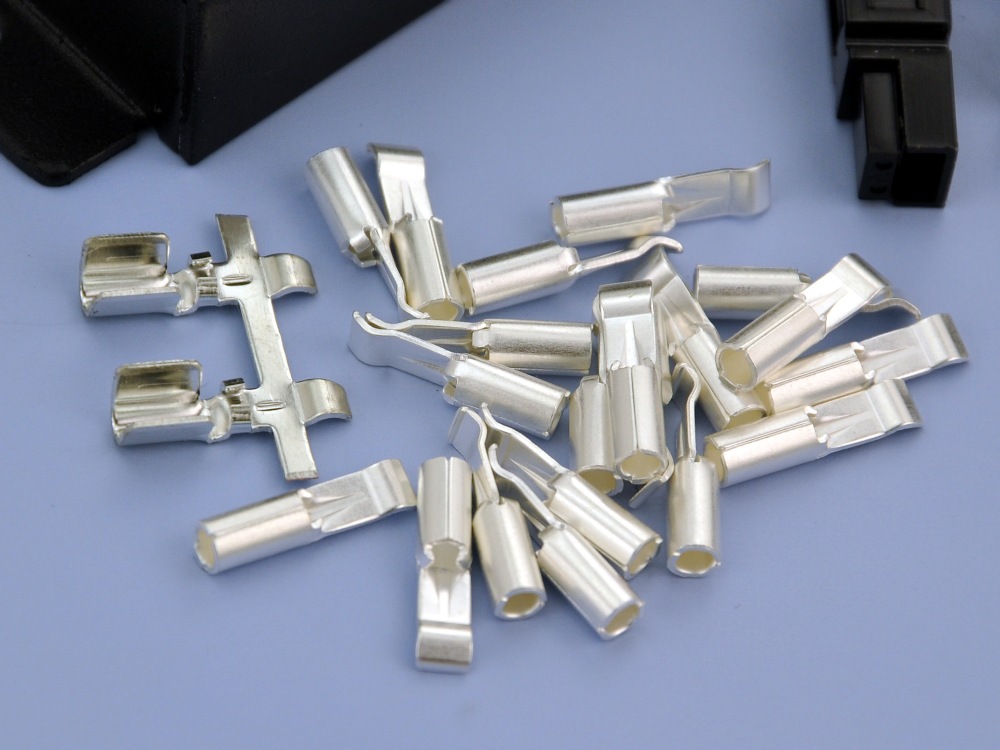

Includes: 9 black powerpole housings, 9 red powerpole housings, 9 PVC cover flame retardant sleeve, 18 silver plated copper 30A 14-12AWG powerpole contacts, 2x tinned copper 45A 12-10AWG powerpole contacts.
