CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.

SKU: D-1015T/12V
$66.00 $66.00
CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $66 = $66
save $0.00
Add to Favorites
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
1/1
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • CZH-Labs DIN Rail Mount 12V Passive 8 SPST-NO 30Amp Power Relay Module.
  • Description

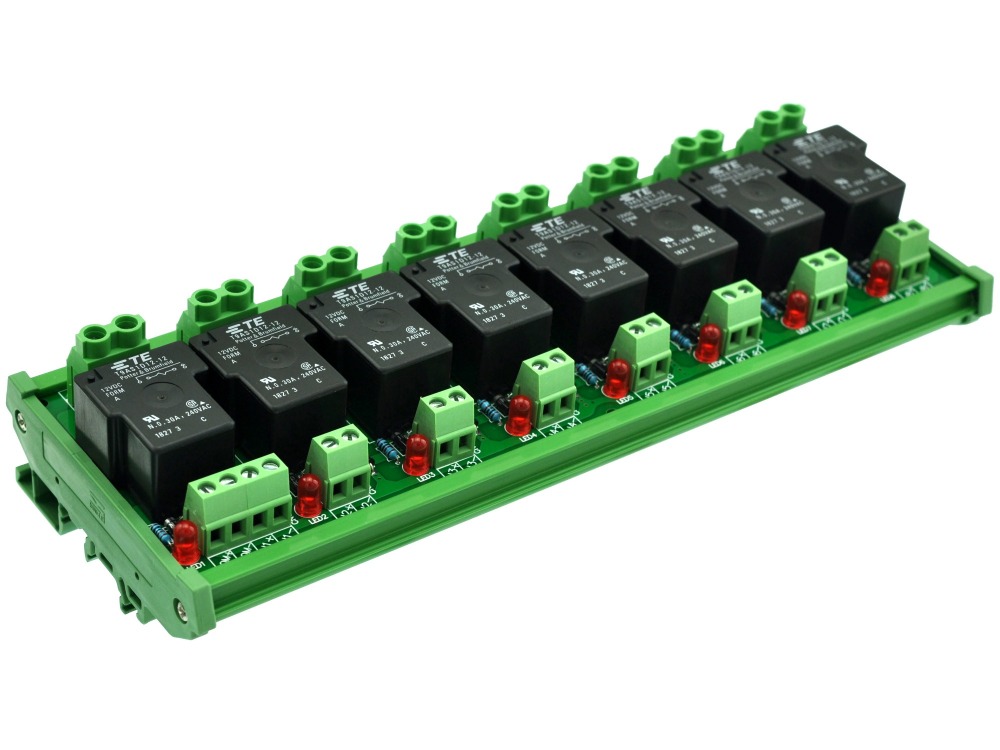

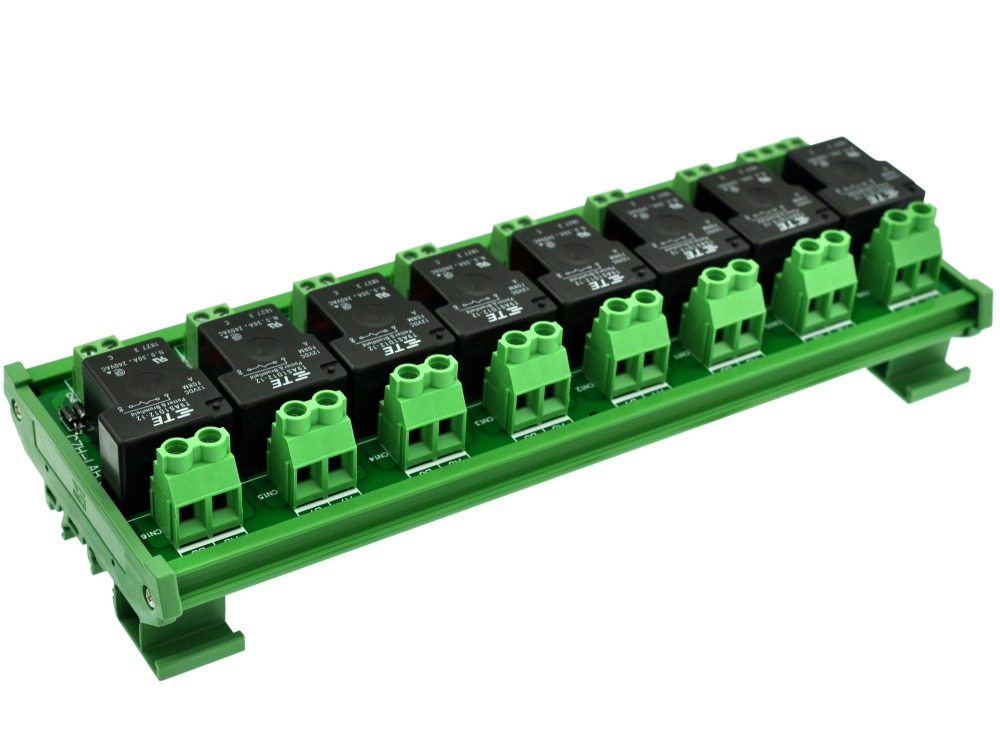

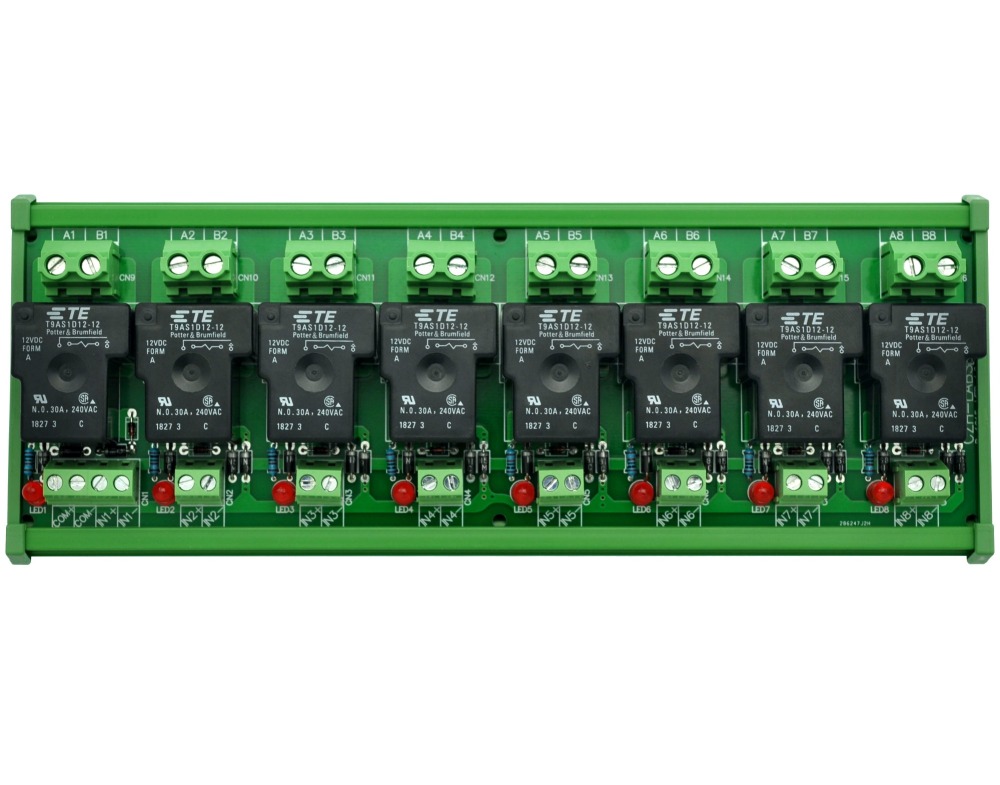

DIN Rail Mount Passive 8 Channel SPST-NO 30 Amp Power Relay Module.
Part Number: MD-D1015T/12V

This item has been assembled, and electrical test passed.

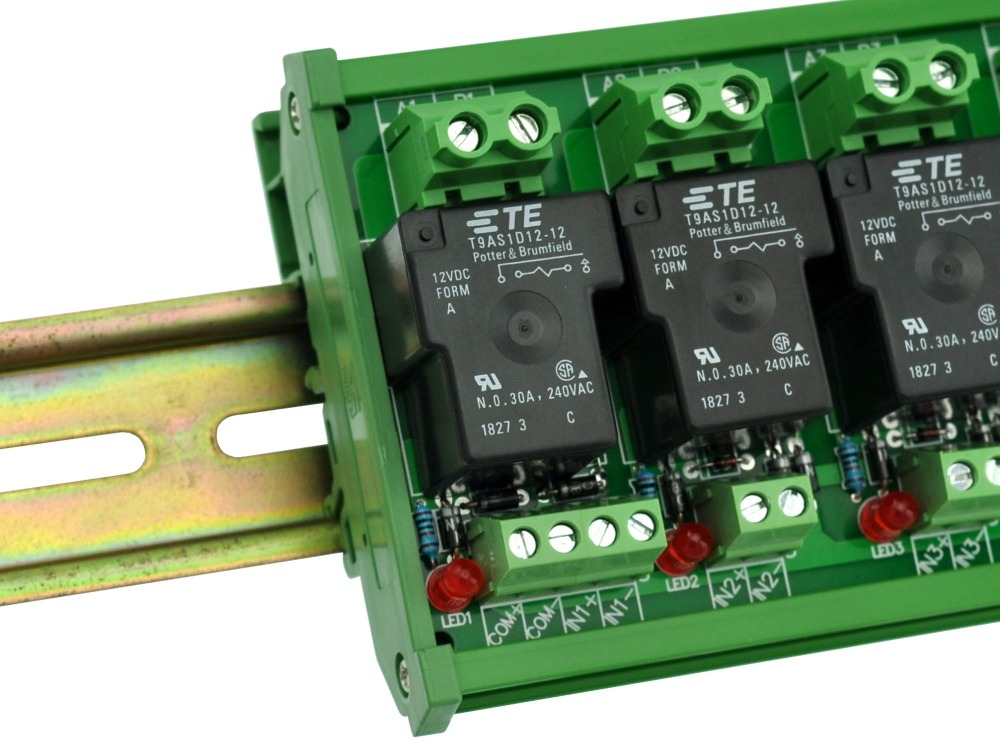

TE T9AS1D12-12 30Amp power relay.
High quality terminal block connectors (output is real 30Amp high power terminal block).
LED indicator for each relay channel.
FR-4 Fiber glass PCB (Double Layer).

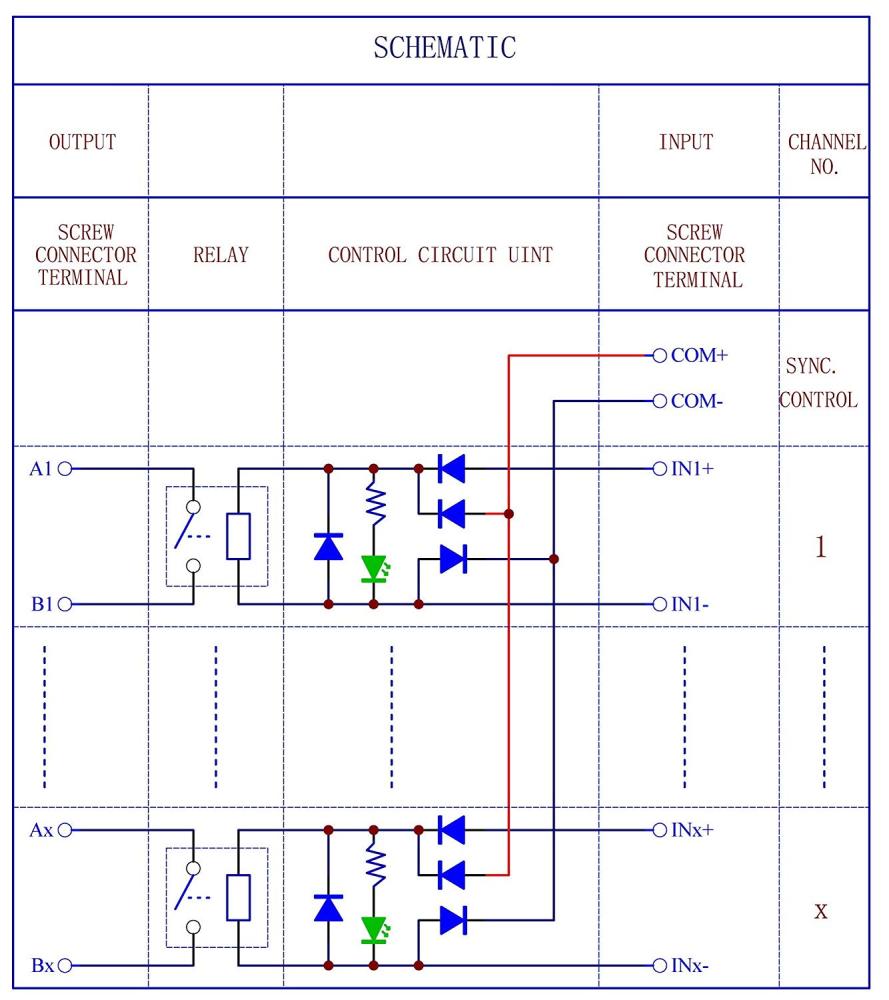

Users can flexibly configured control signal mode according to controllers output.

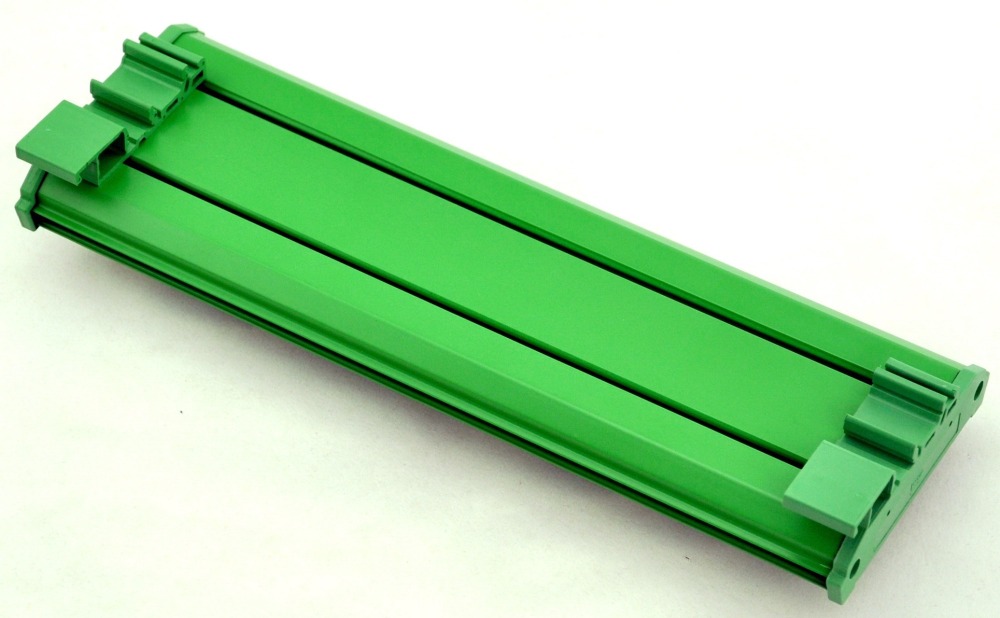

High quality DIN rail mount carrier, can support width 35mm /32mm / 15mm rail.

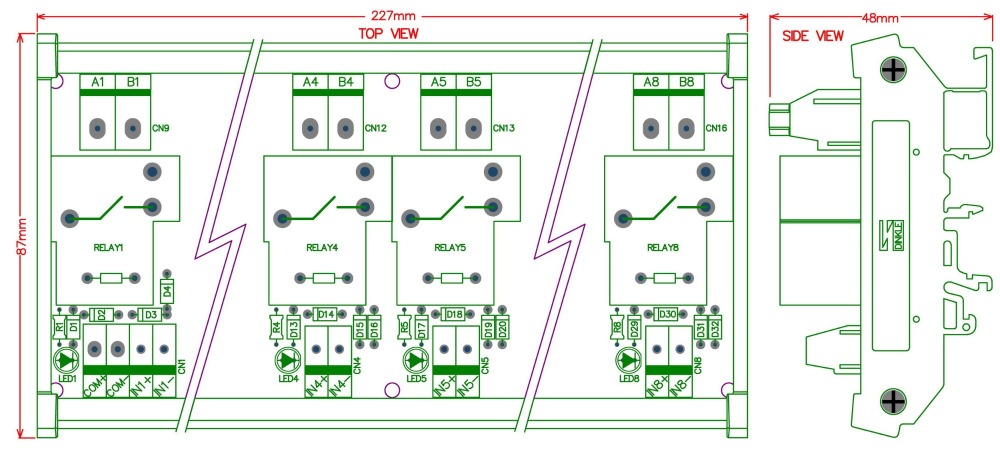

Size: 48mm x 87mm x 228mm.
Relay characteristic:
Rated Load (Resistive load): 30A at 250VAC, 20A at 28VDC.
Coil action voltage: DC 10~15V, recommended DC12V.
Coil action current: 80mA (each channel), at DC12V.

Terminal block characteristic:
Input terminal:
Wire range 26-12AWG
Mechanical Torque 0.4Nm(3.5Lb-In.)
Strip length 7mm
Dimensions Pitch 5.0mm(.197")
Screws M2.5
Rated current 16 Amp
Output terminal:
Wire range 26-10AWG
Mechanical Torque 0.5Nm(4.4Lb-In.)
Strip length 8mm
Dimensions Pitch 7.62mm(.3")
Screws M3
Rated current: 30 Amp
