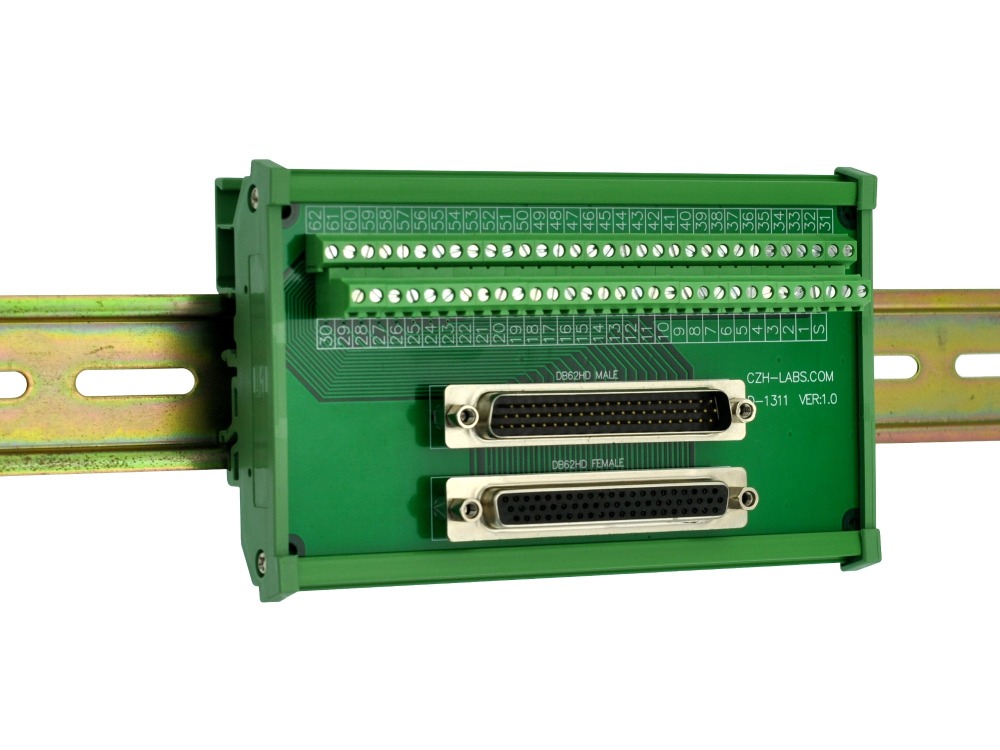

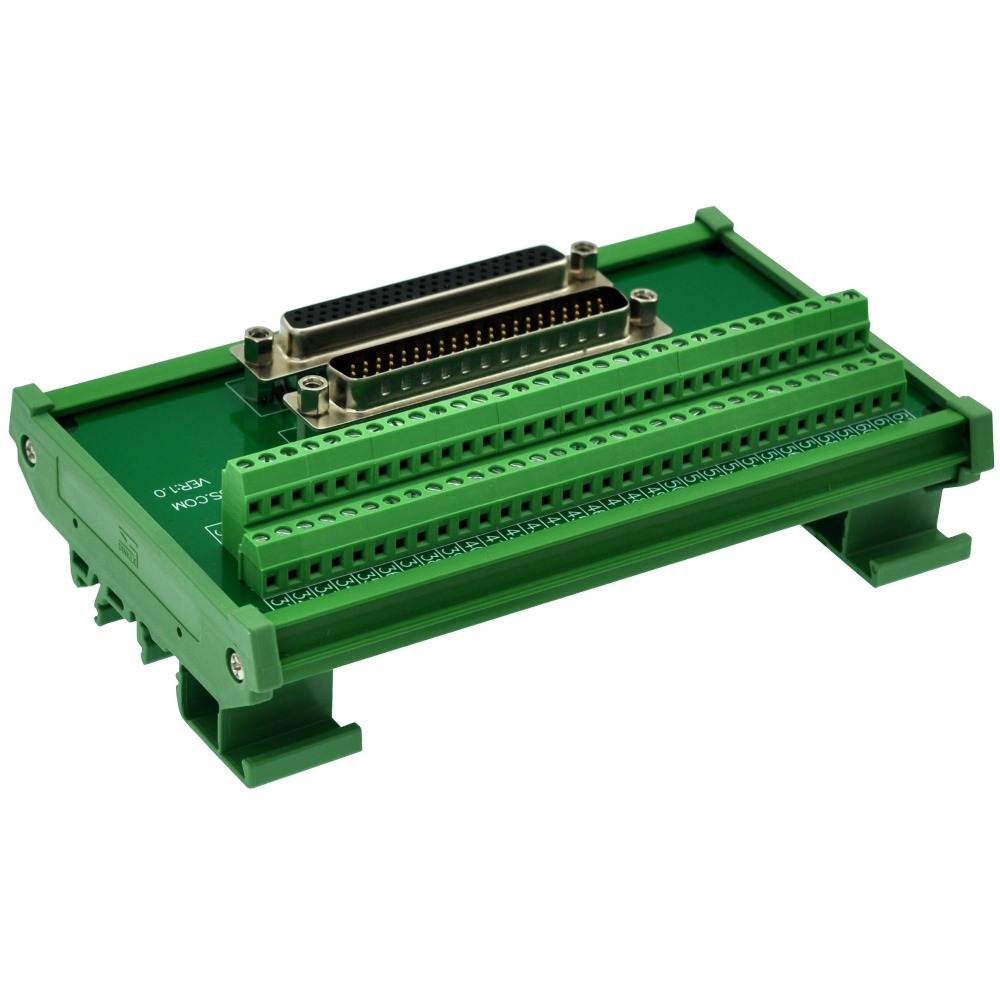

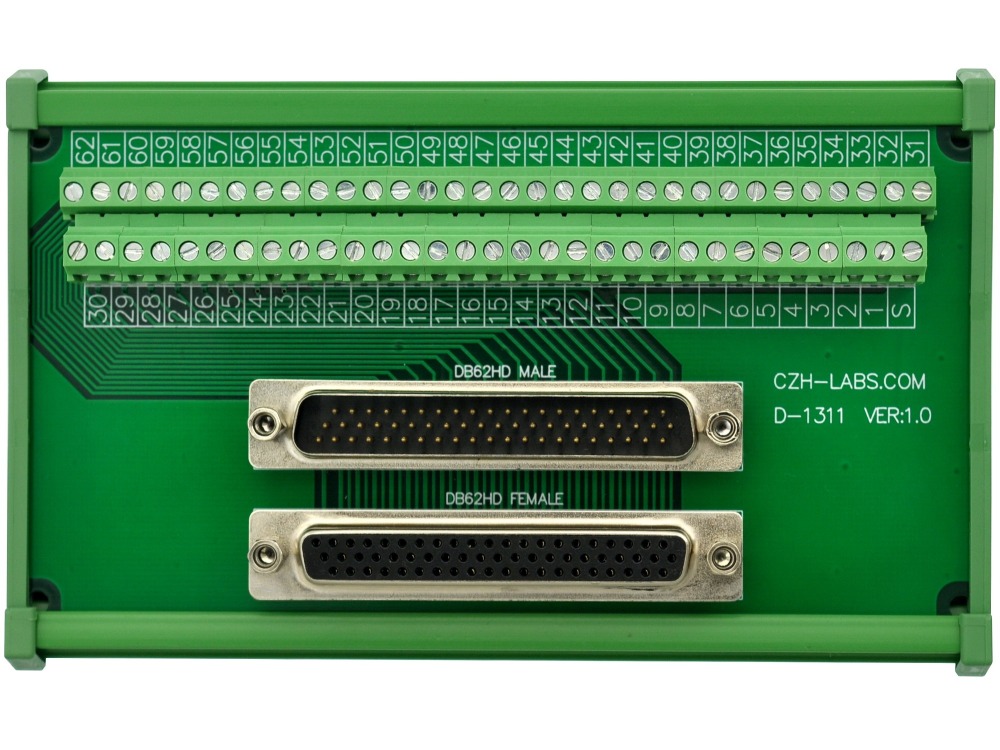

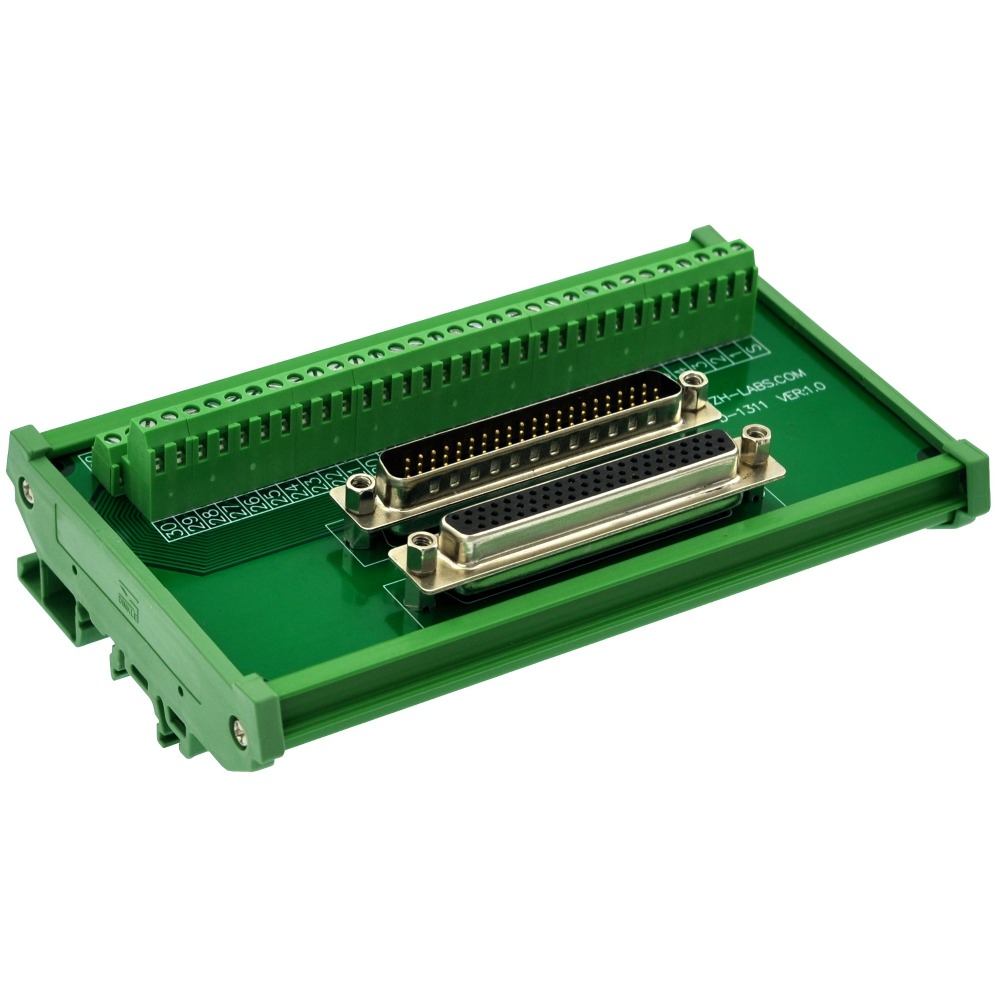

CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.

SKU: D-1311T
$36.00 $36.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $36 = $36
save $0.00
Add to Favorites
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
1/1
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • CZH-LABS DIN Rail Mount DSUB DB62HD Male/Female Header Interface Module, D-SUB Breakout Board.
  • Description
Features:

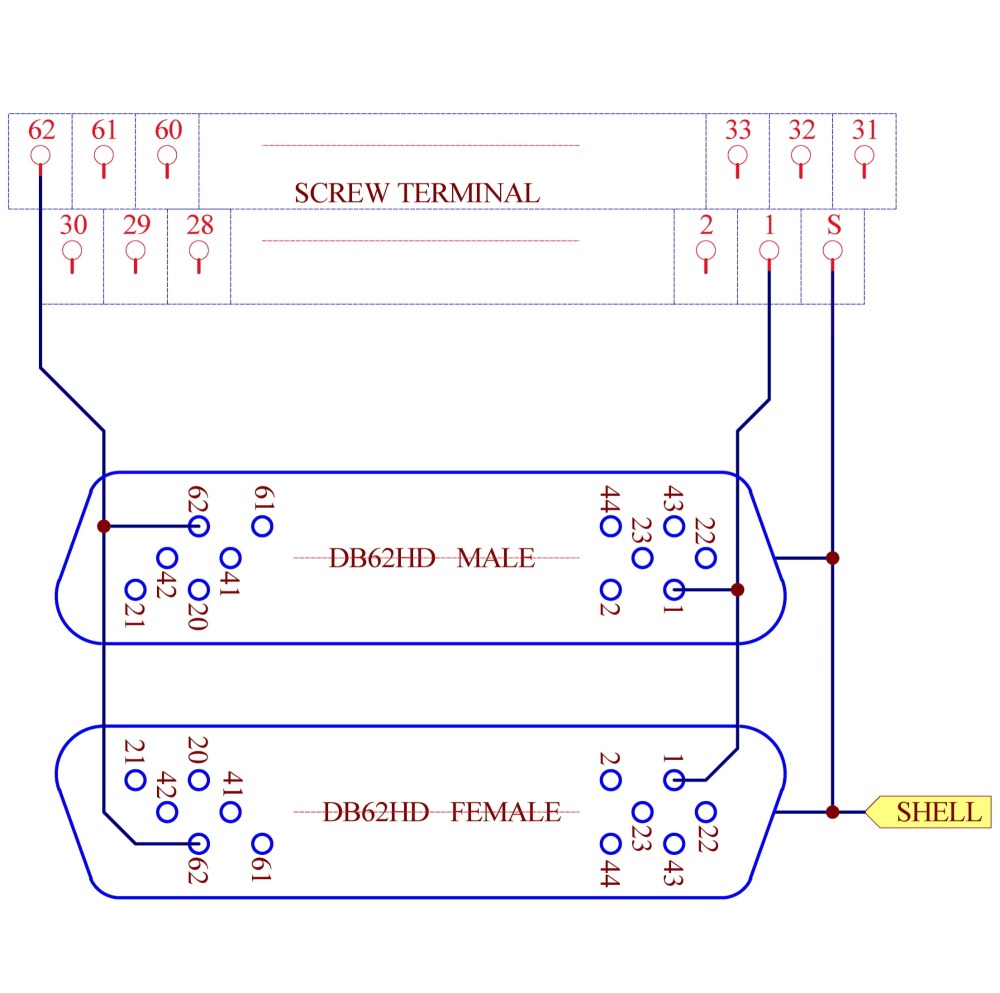

1, Standard DB62HD Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.
2, Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20ºC to 50ºC
3, Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
4, FR-4 fiber glass PCB, dual copper layers.
5, High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for PCB screw mount use.
