CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.

SKU: D-1144
$14.99 $14.99
CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $14.99 = $14.99
save $0.00
Add to Favorites
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
1/1
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
  • CZH-LABS Pi Screw Terminal Block Breakout Module, for Raspberry Pi.
  • Description

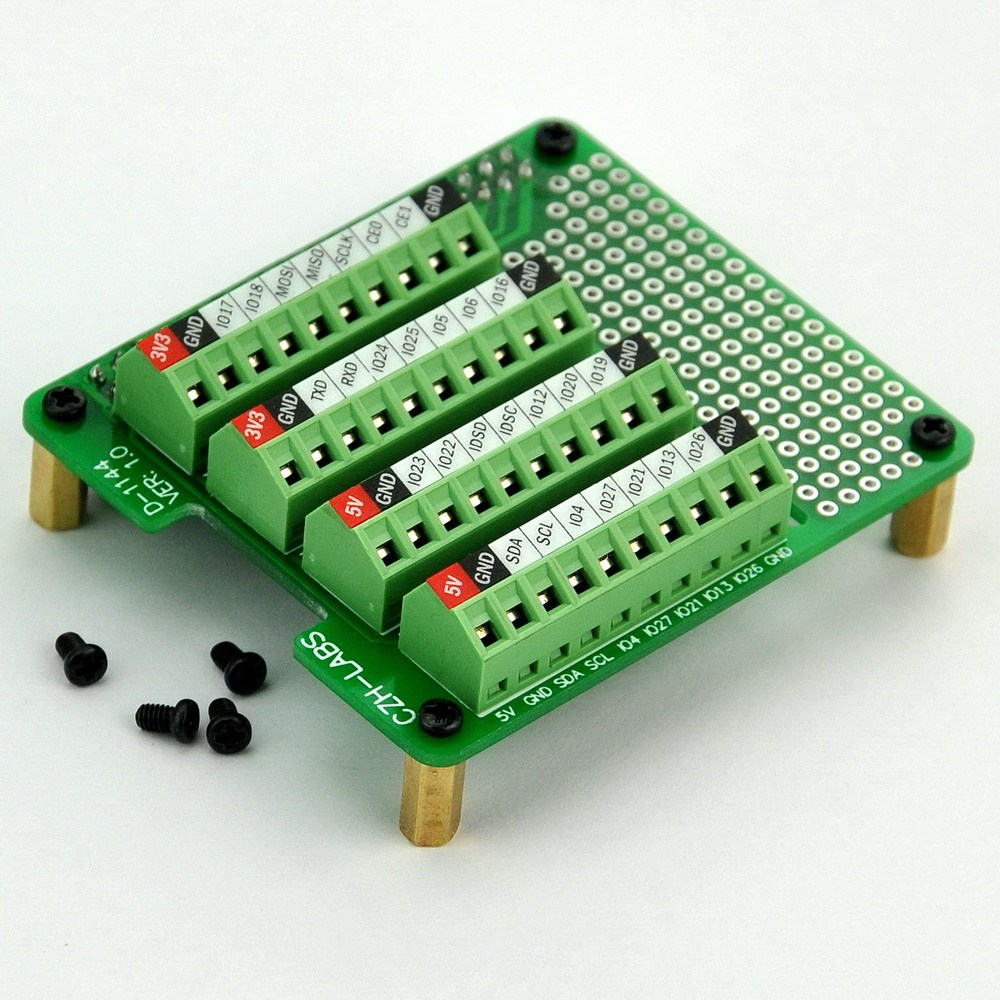

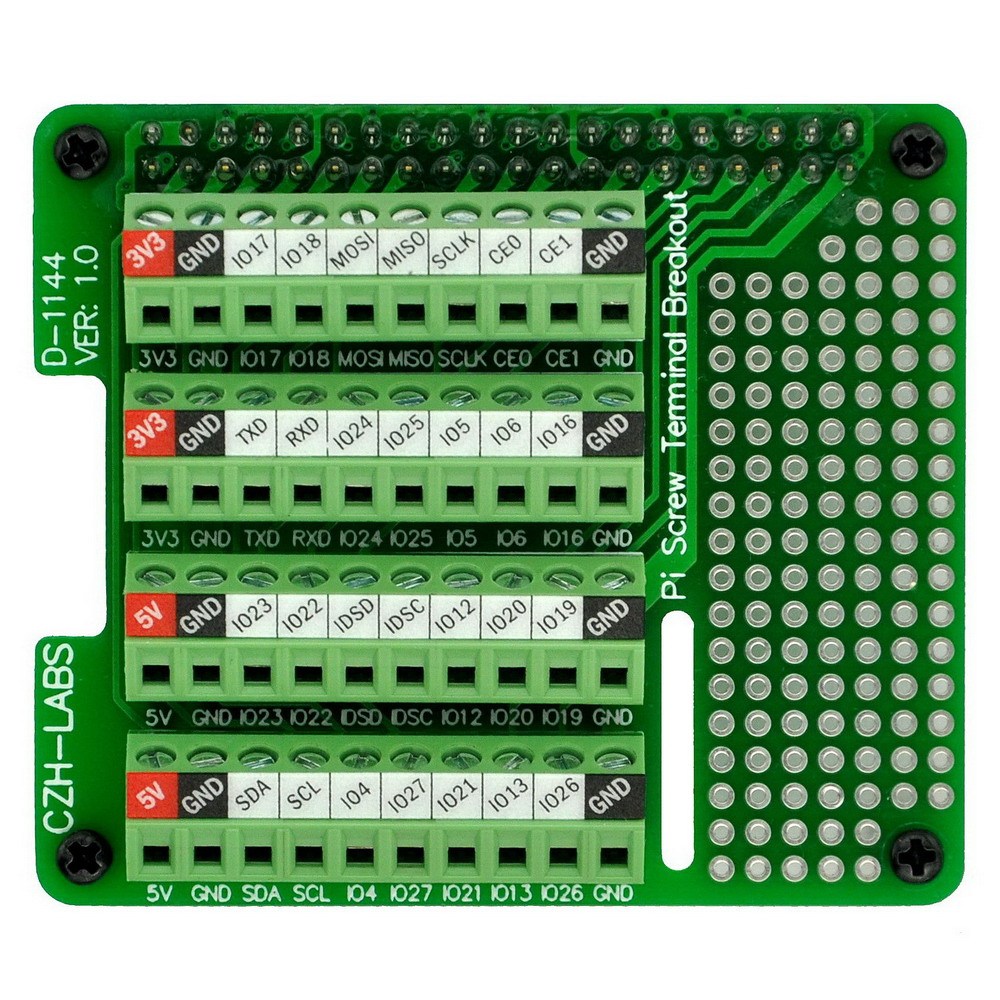

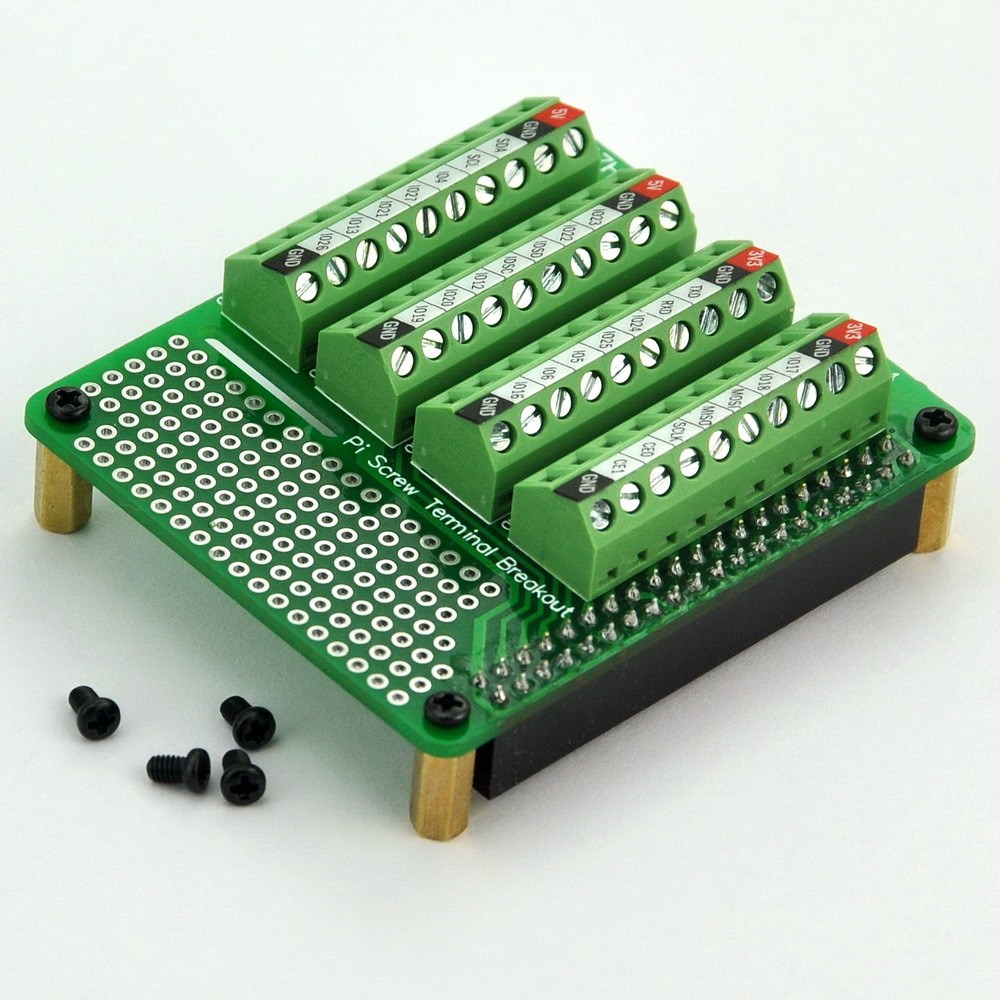

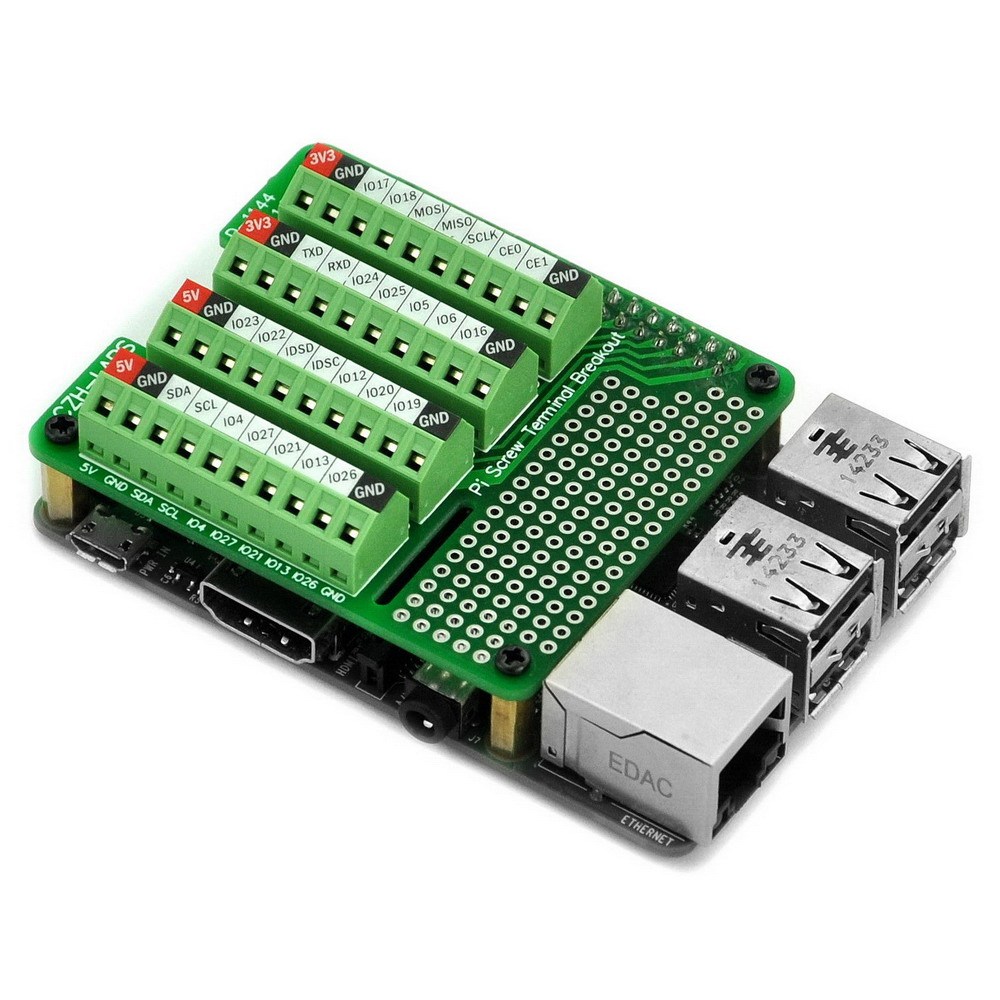

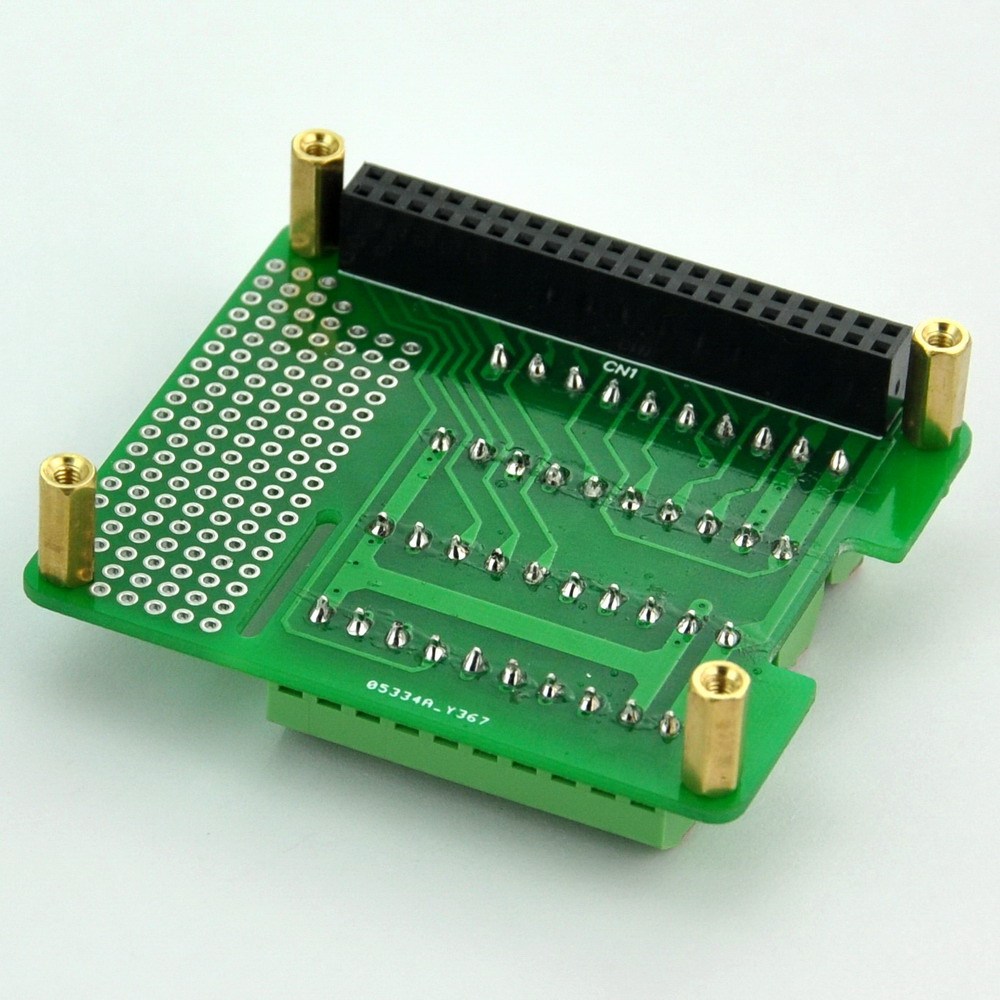

Pi Terminal Block Breakout Module - for Raspberry Pi.

The item has been soldered and assembled, with mounting screws, standoffs and labels.
Terminal block pitch 3.5mm/0.138", wire size range 26AWG to 16AWG, strip length 5mm, screw M2 steel, pin header and cage copper.
FR-4 fiber glass PCB, dual copper layers, pads grid pitch 2.54mm/0.1", hole diameter 0.8mm.

NOTE: the item not include Raspberry Pi.
