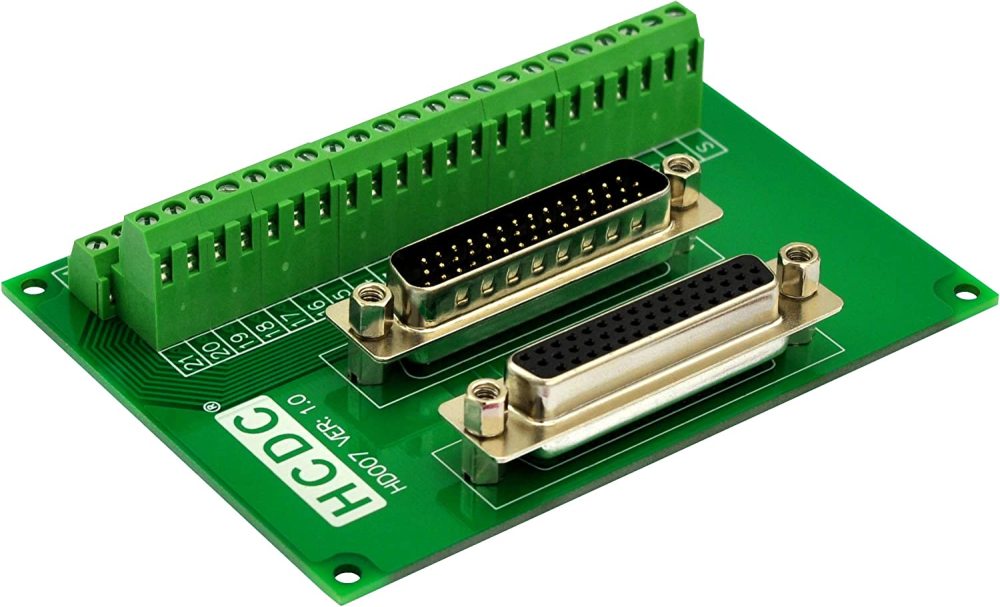

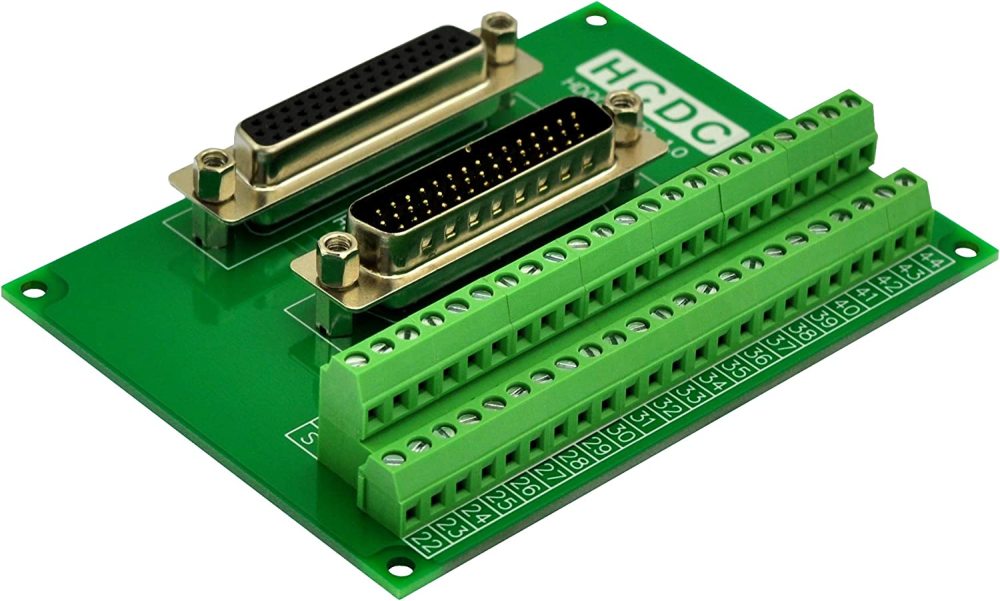

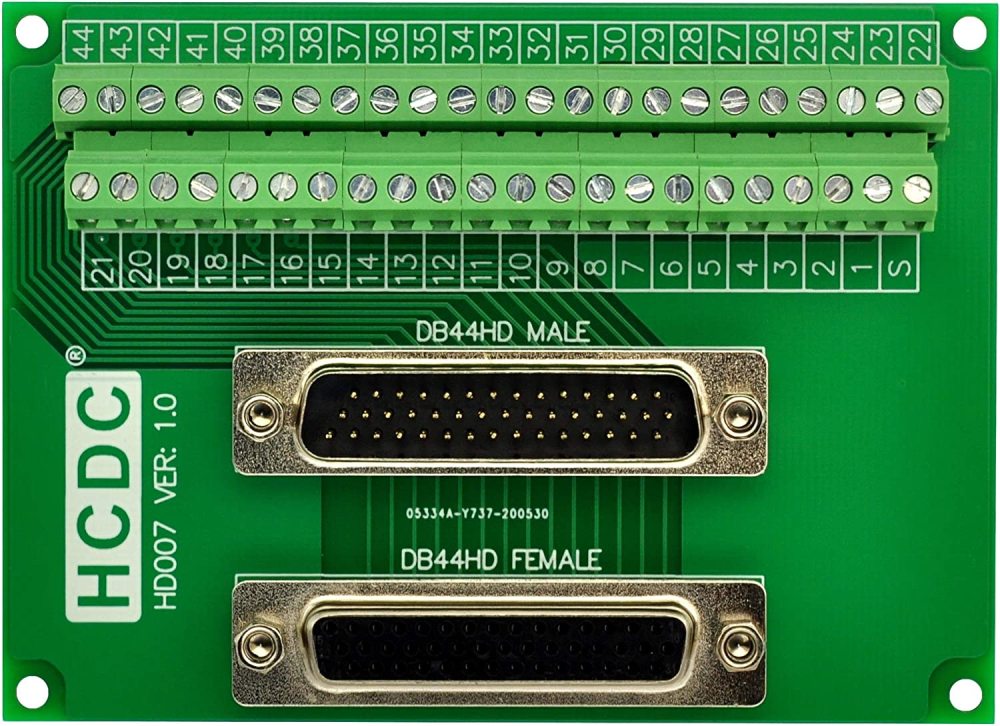

D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB44HD)

SKU: HD007
$17.90 $17.90
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $17.9 = $17.9
save $0.00
Add to Favorites
  • D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB44HD)
  • D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB44HD)
  • D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB44HD)
  • D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB44HD)
  • D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB44HD)
  • D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB44HD)
  • D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB44HD)
  • D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB44HD)
  • D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB44HD)
  • D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB44HD)
1/1
  • D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB44HD)
  • D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB44HD)
  • D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB44HD)
  • D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB44HD)
  • D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB44HD)
  • Description

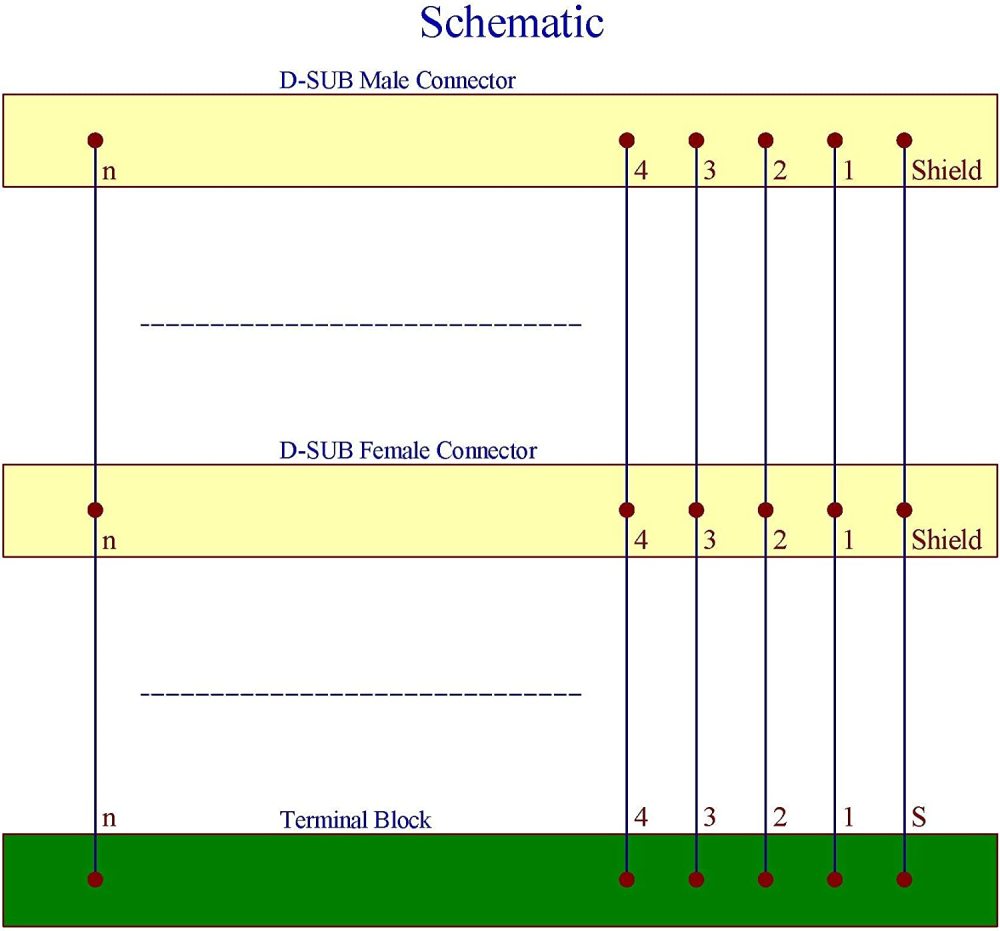

1, Standard D-SUB Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.
2, Rated voltage: 60V. Rated current: 1Amp / per pin. Operating Temperature: -20C to 50C
3, Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2, steel, Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
4, FR-4 fiber glass PCB, dual copper layers.
