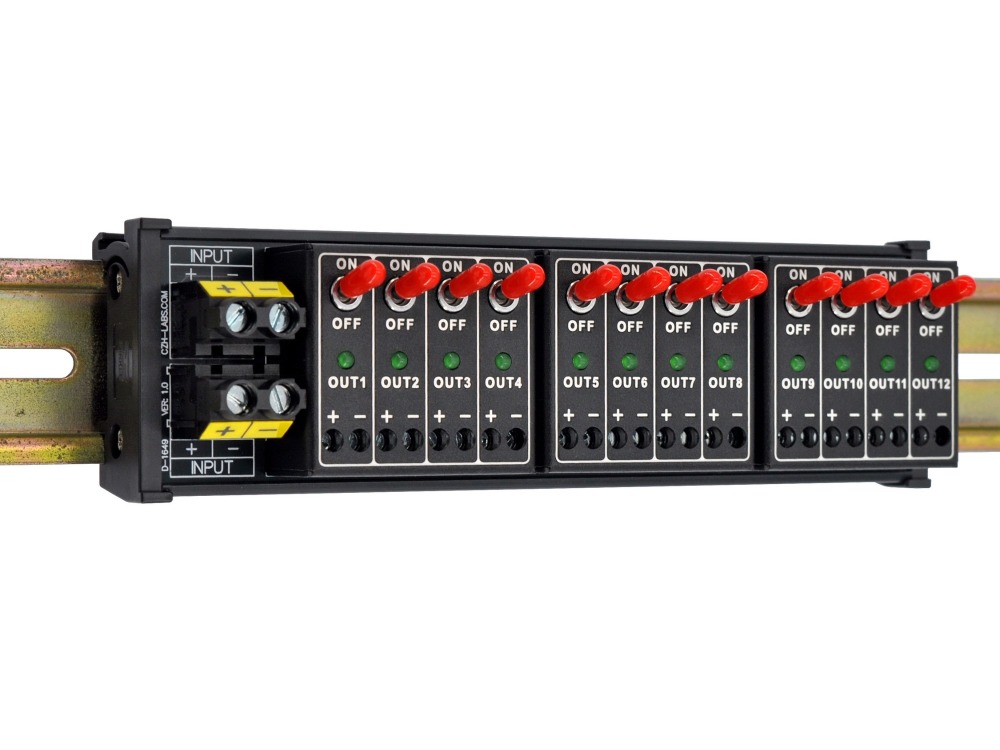

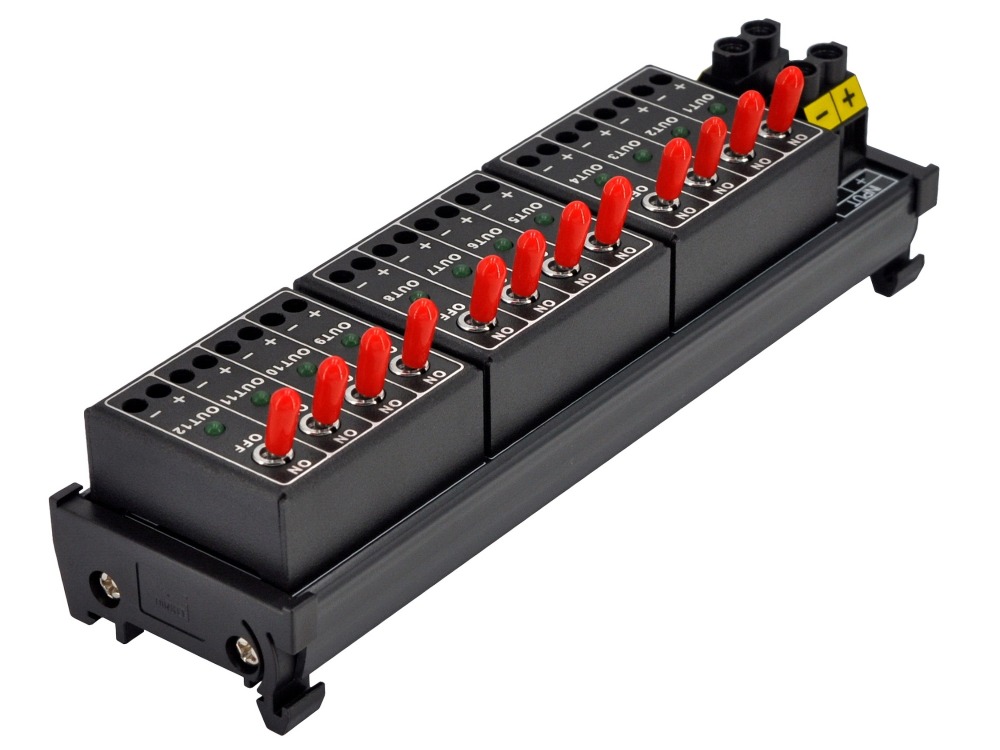

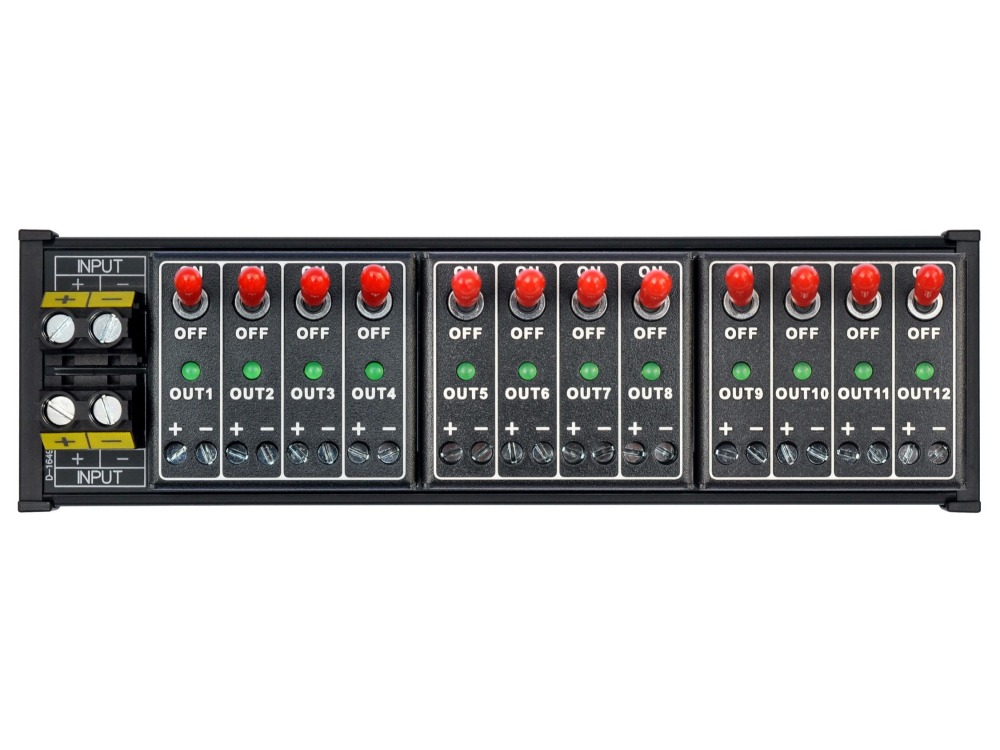

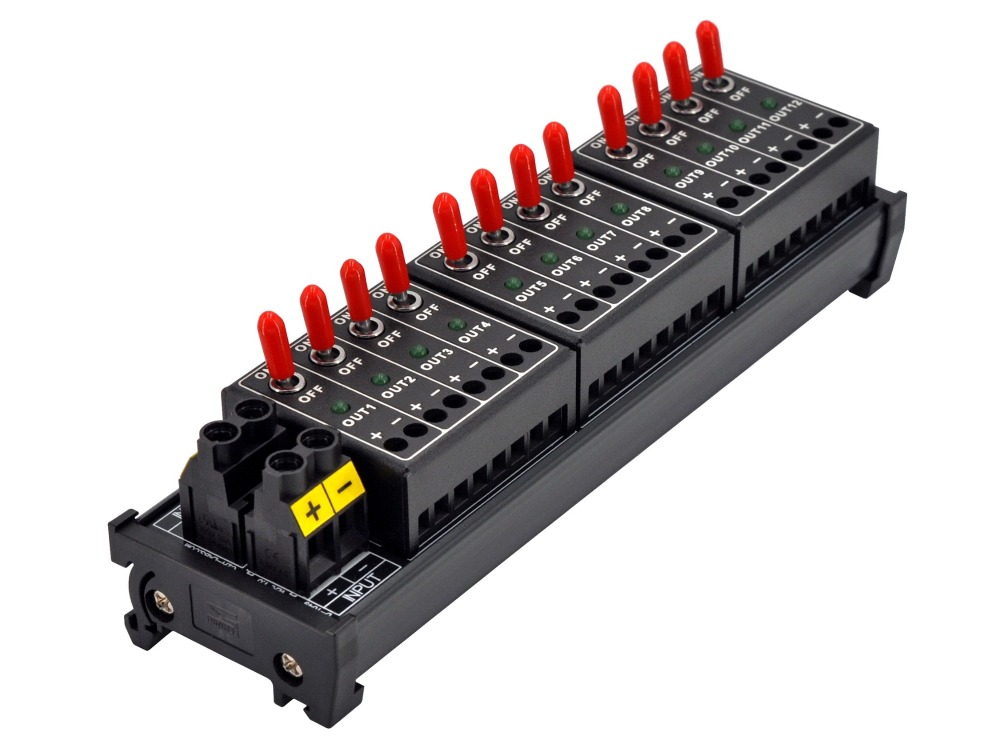

DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount

SKU: D-1649T
$70.00 $70.00
DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $70 = $70
save $0.00
Add to Favorites
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
1/1
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • DC 12 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
  • Description
1, Working voltage DC 3 to 32V. Maximum input current 30 Amps. 12 Channels output, each channel maximum output current 5 Amps (all channel total maximum output 30 Amps).

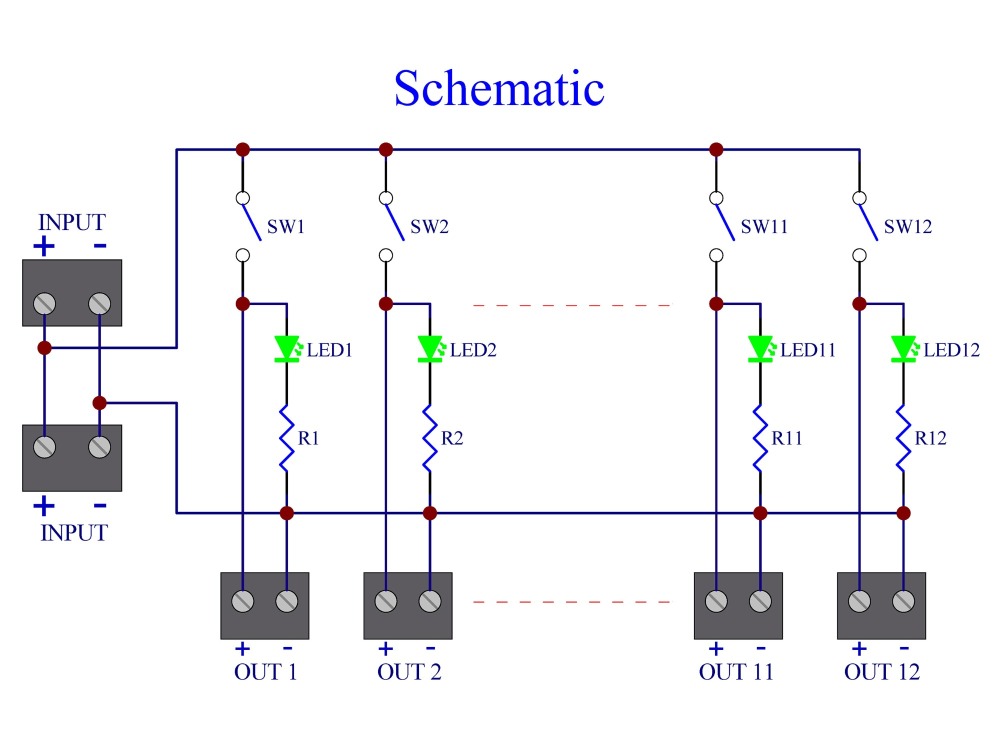

2, Toggle switch ON/OFF power output for each channel. With switch power ON LED indication function.
3, Input terminals: pitch 7.62mm/0.3", rated current 30 Amps for per position, wire size 26-10AWG / 4.0mm square, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
4, Output terminals: pitch 5.0mm/0.197", rated current 5 Amps for per channel, wire size 26-12AWG / 2.5mm square, stripping length 7mm, Metric M3 slotted screw.

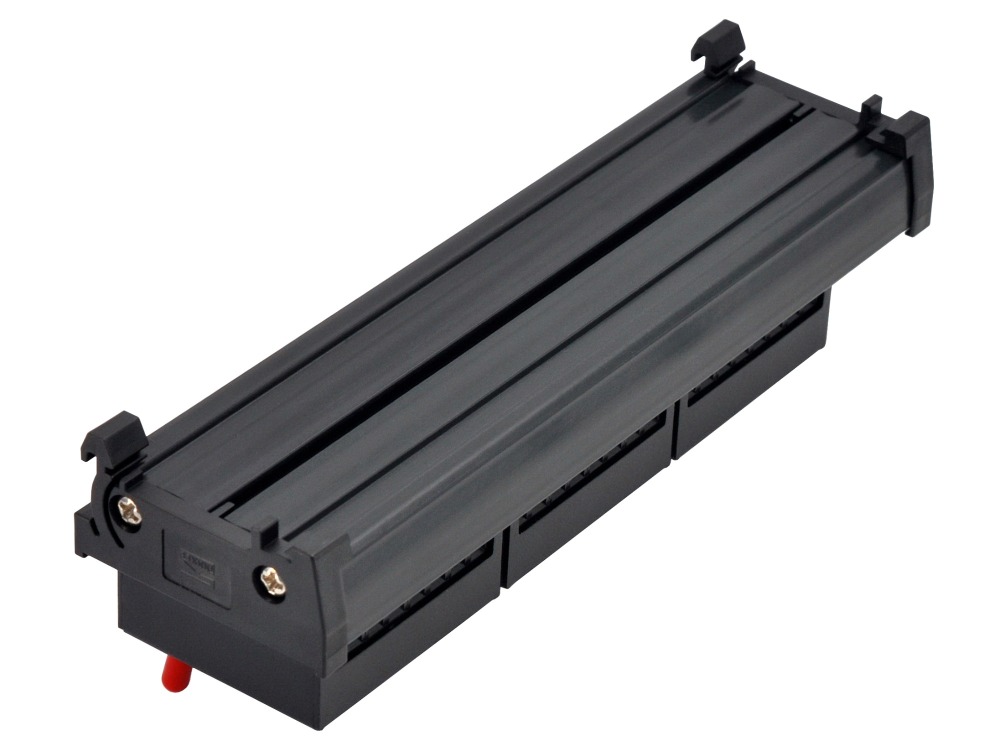

5, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm rail. Aluminum top cover.
6, UL CE certified DIN rail mount carrier. UL 94-V0 certified FR-4 fiberglass PCB. UL CE CQC certified terminal blocks.
7, Operating Temperature: -20 to 60 degrees Celsius.

Other, if you buy our CASE-049-1 DIN rail mount to Wall mount adapter bracket, will can support wall or wood panel mounting.

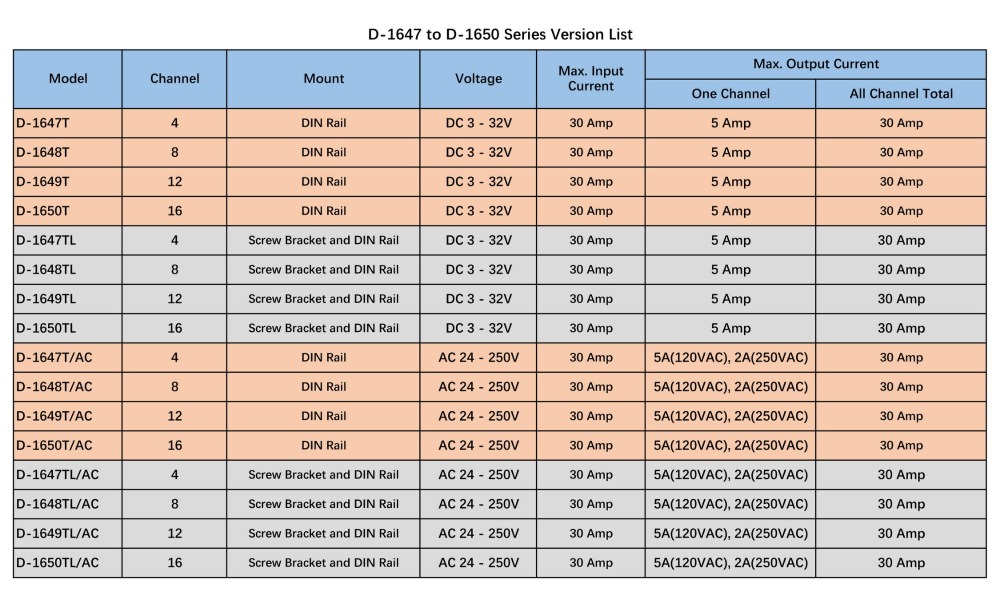

We can provide the following versions of products, and can provide personalized laser printing logo and content services. Some products are not available for public sale. If you need the following versions, please feel free to contact us.
