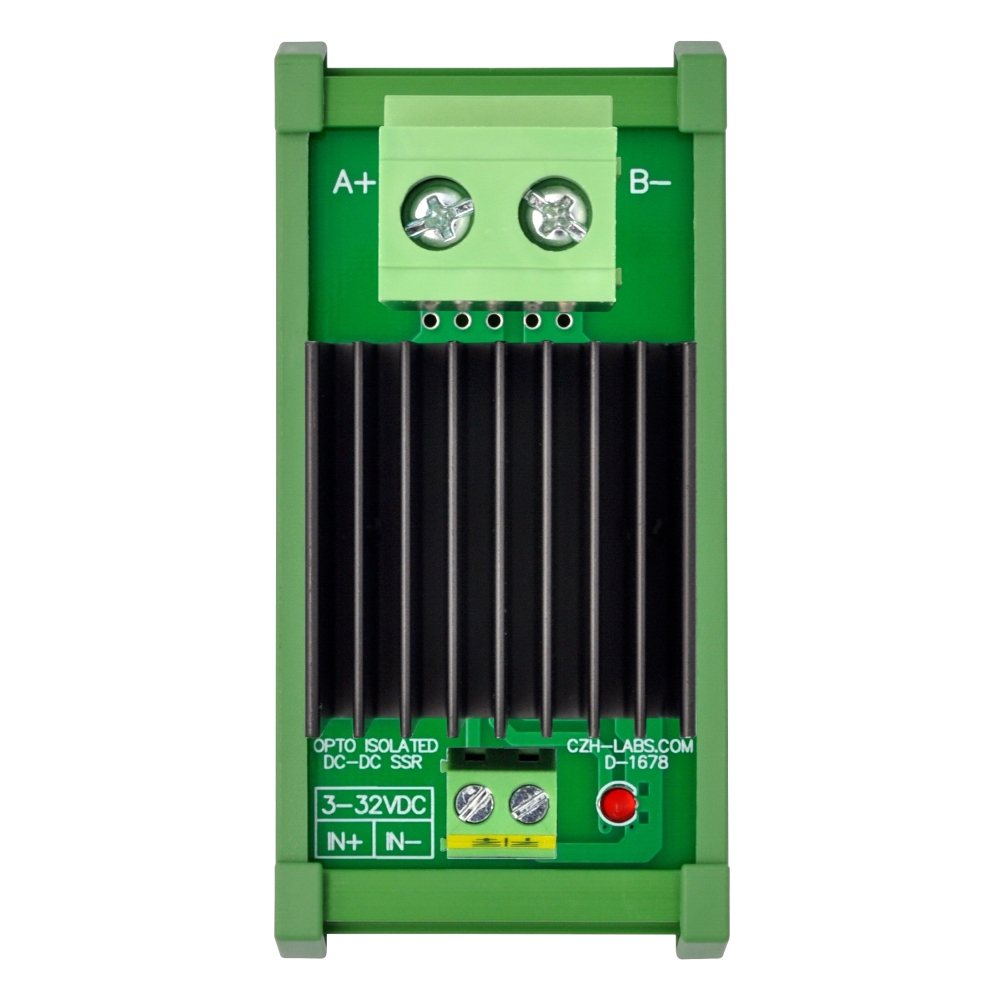

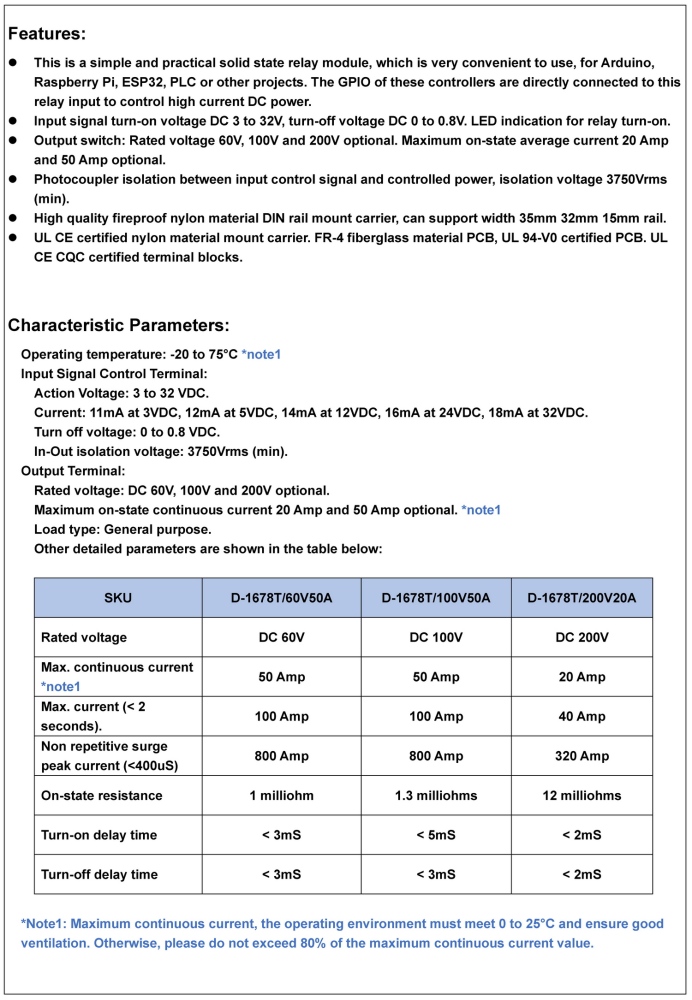

Features:
1, This is a simple and practical solid state relay module, which is very convenient to use, for Arduino, Raspberry Pi, ESP32, PLC or other projects. The GPIO of these controllers are directly connected to this relay input to control high current DC power.
2, Input signal turn-on voltage DC 3 to 32V, turn-off voltage DC 0 to 0.8V. LED indication for relay turn-on.
3, Output switch: Rated voltage 100V. Maximum on-state average current 50 Amp.
4, Photocoupler isolation between input control signal and controlled power, isolation voltage 3750Vrms (min).

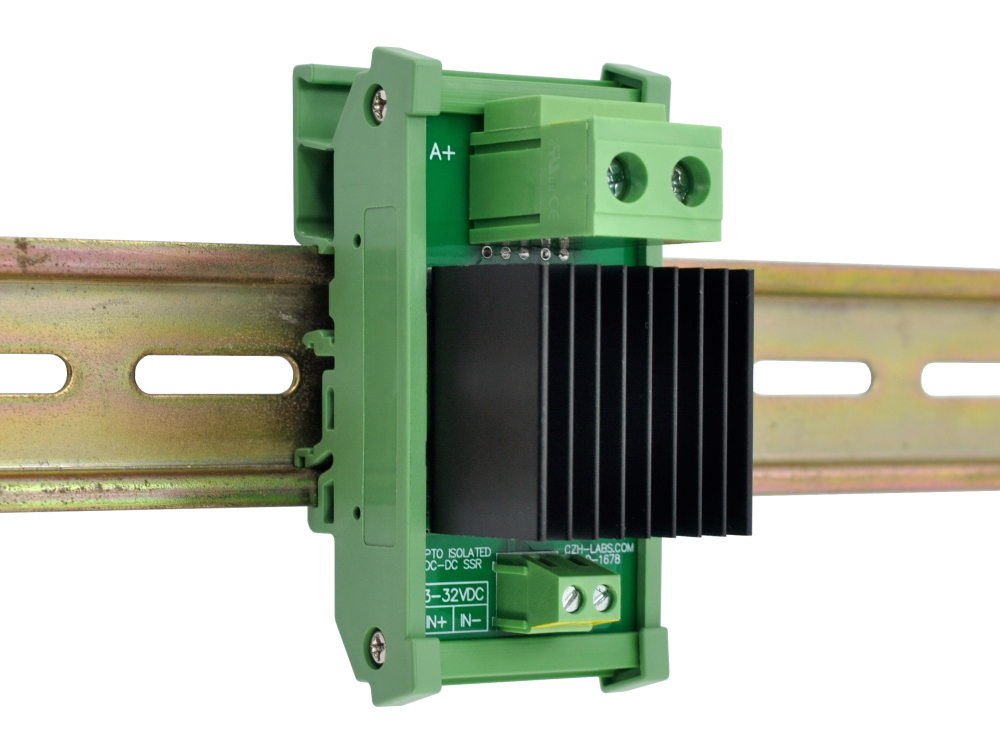

5, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail.
6, UL CE certified nylon material mount carrier. FR-4 fiberglass material PCB, UL 94-V0 certified PCB. UL CE CQC certified terminal blocks.
Characteristic Parameters:
Operating temperature: -20 to 75C
Input Signal Control Terminal:
Action Voltage: 3 to 32 VDC.
Current: 11mA at 3VDC, 12mA at 5VDC, 14mA at 12VDC, 16mA at 24VDC, 18mA at 32VDC.
Turn off voltage: 0 to 0.8 VDC.
In-Out isolation voltage: 3750Vrms (min).
Output Terminal:
Rated voltage: DC 100V.
Maximum on-state continuous current 50 Amp.
Load type: General purpose.
On-state resistance: 1.3 milliohm
Turn-on delay time: < 5mS
Turn-off delay time: < 3mS
