DIN Rail Mount 16 Red LED Indicator Light Module, Support 5-50VDC Common Positive and Negative

SKU: D-1535T-RED
$20.00 $20.00

Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $20 = $20
save $0.00
Add to Favorites
  • DIN Rail Mount 16 Red LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Yellow LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Red LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Red LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Yellow LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Red LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Yellow LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Red LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Yellow LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Red LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Red LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Yellow LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Red LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Yellow LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
1/1
  • DIN Rail Mount 16 Red LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Yellow LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Red LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Red LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Yellow LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Red LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • DIN Rail Mount 16 Yellow LED Indicator Light Module, Support 5-50VDC Common Positive and Negative
  • Description

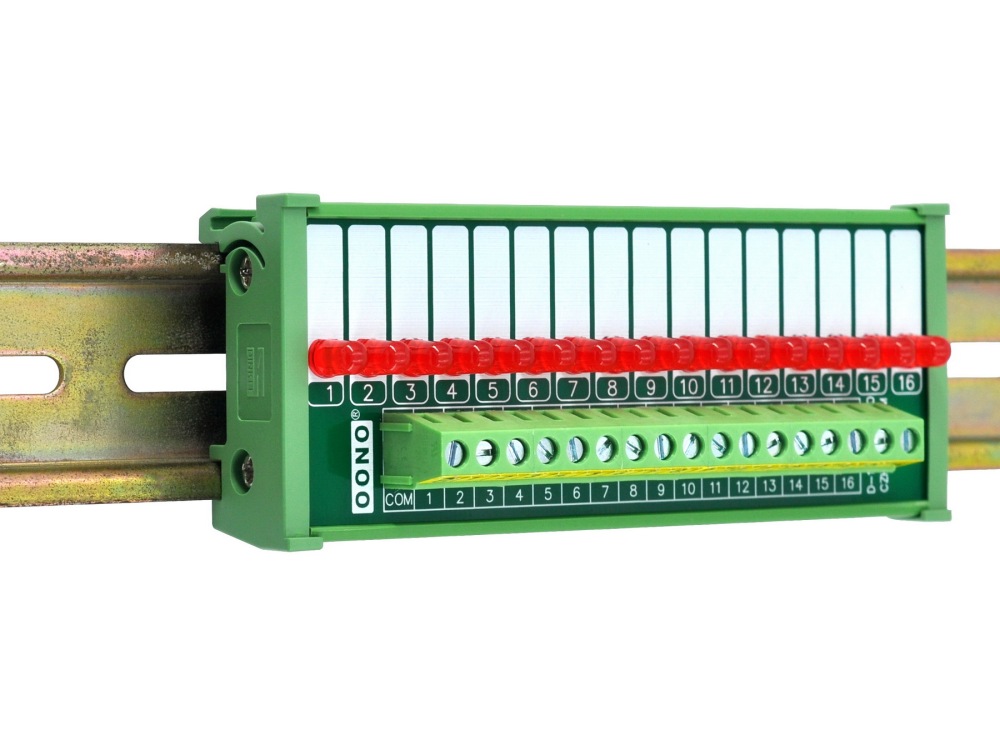

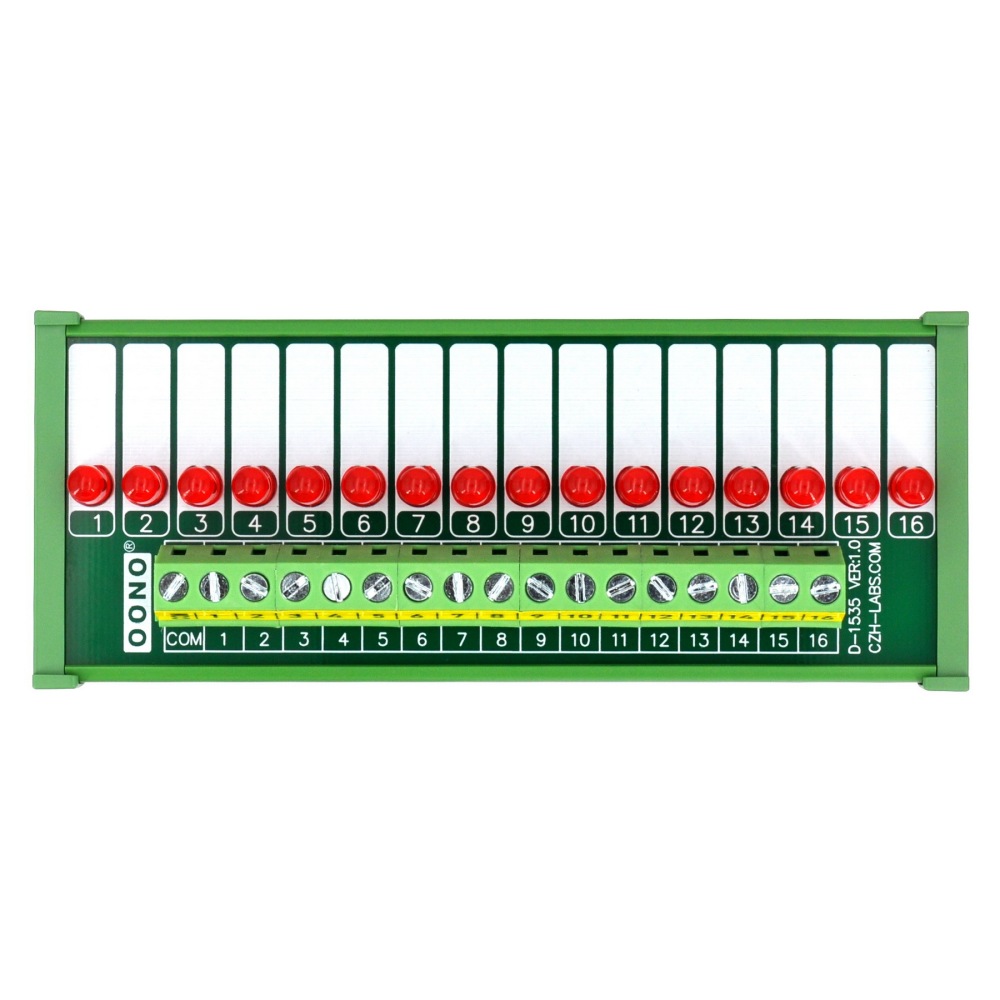

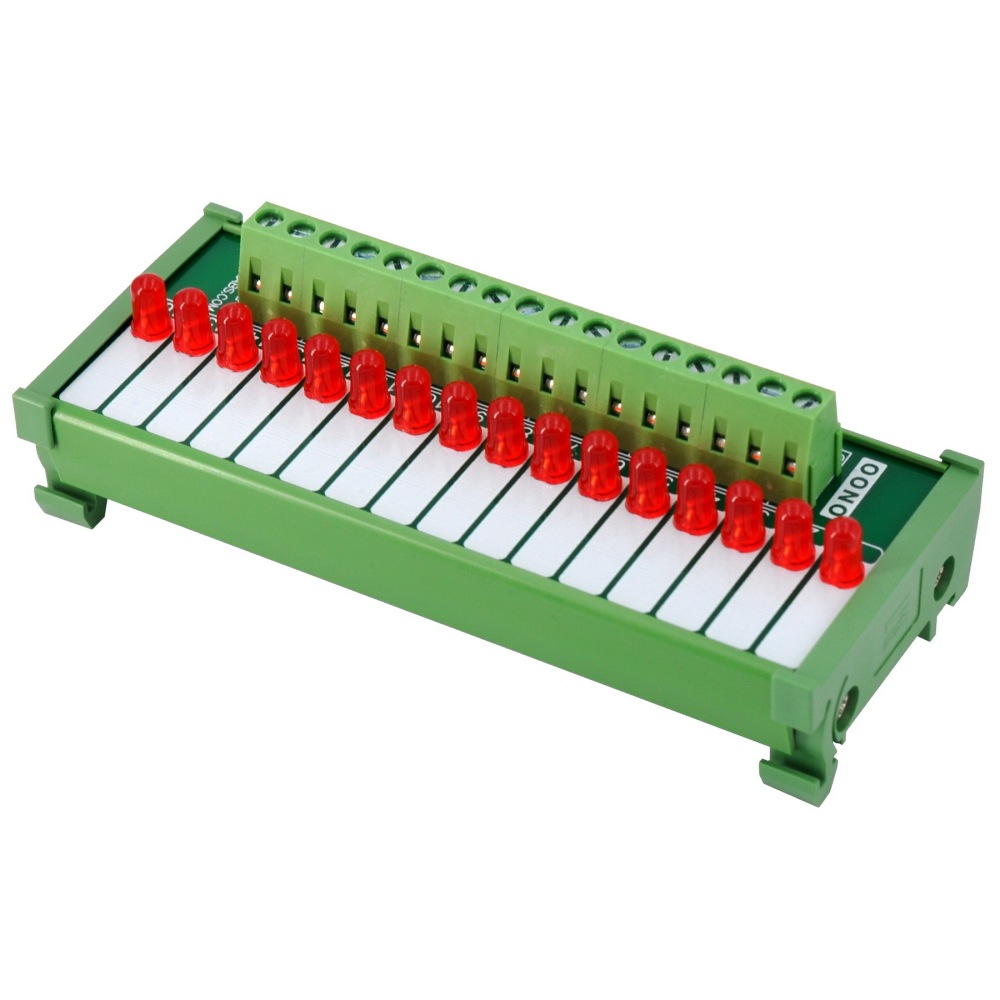

DIN rail mount 16 channel LED Indicator light module, LED color - Red, LED Diameter 5mm.

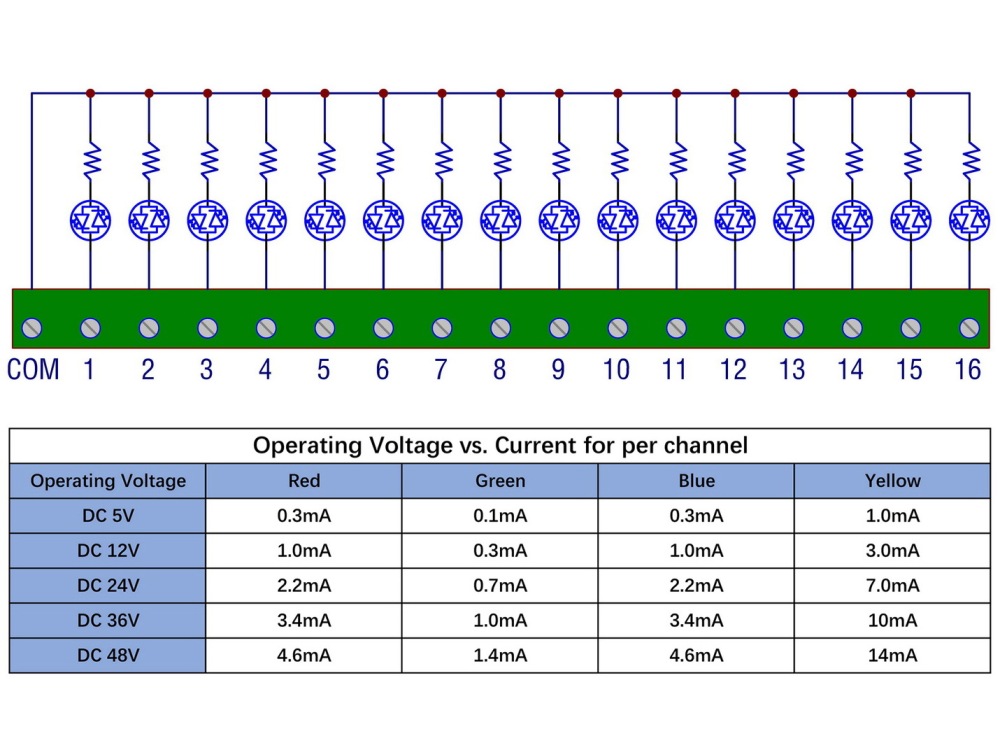

Operating voltage range: 5 to 50VDC. Support Common Positive and Common Negative control modes.
Terminals block: pitch 5.0mm/0.197", wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw. UL CE CQC certified terminal blocks.
FR-4 fiberglass dual copper layers PCB. UL 94-V0 certified PCB.

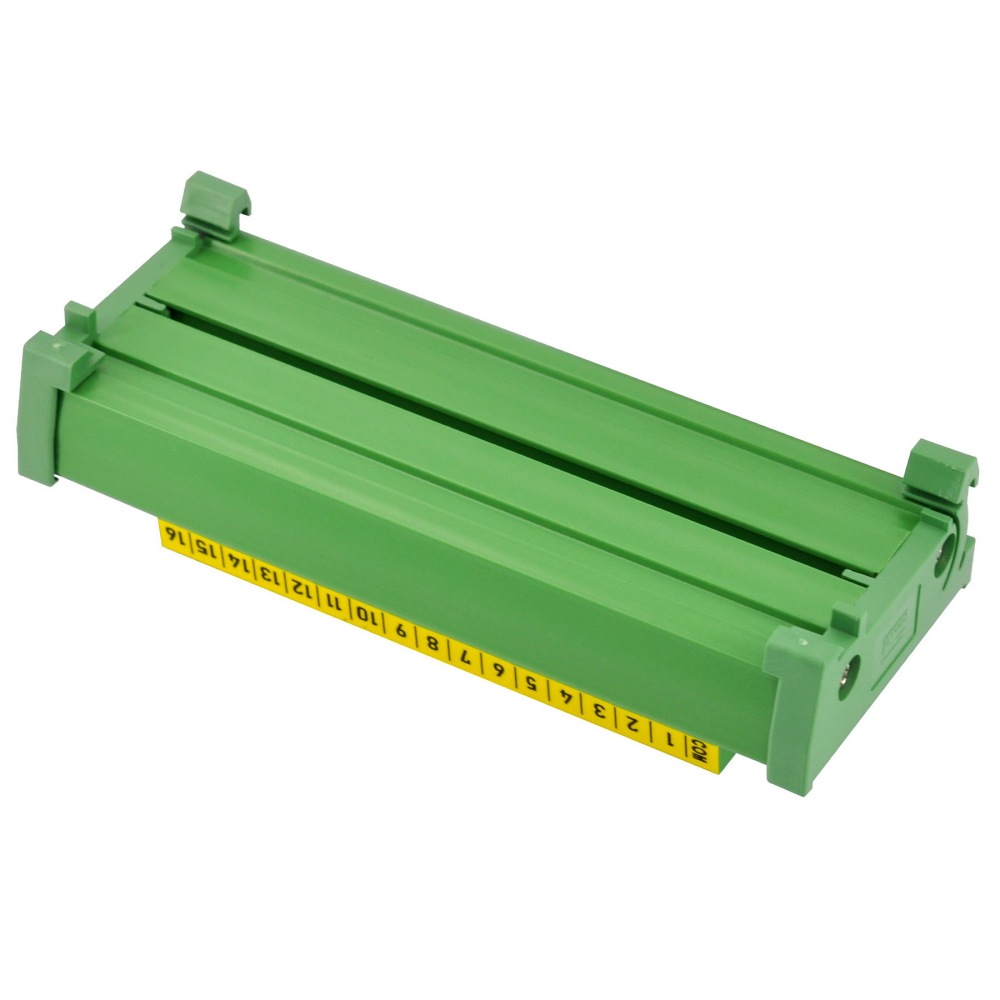

High quality fireproof nylon material DIN rail mount carrier, can support width 35mm rail. UL CE certified DIN rail mount carrier.

Download
