DIN Rail Mount 2 x 4 Position Banana Jack Distribution Module, DC Power Strip

Name: DIN Rail Mount 2 x 4 Position Banana Jack Distribution Module, DC Power Strip
Brand: Xiken Tech
SKU: D-1376T
Price: 18 USD
Availability: InStock

SKU: D-1376T

$18.00 ~~$18.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

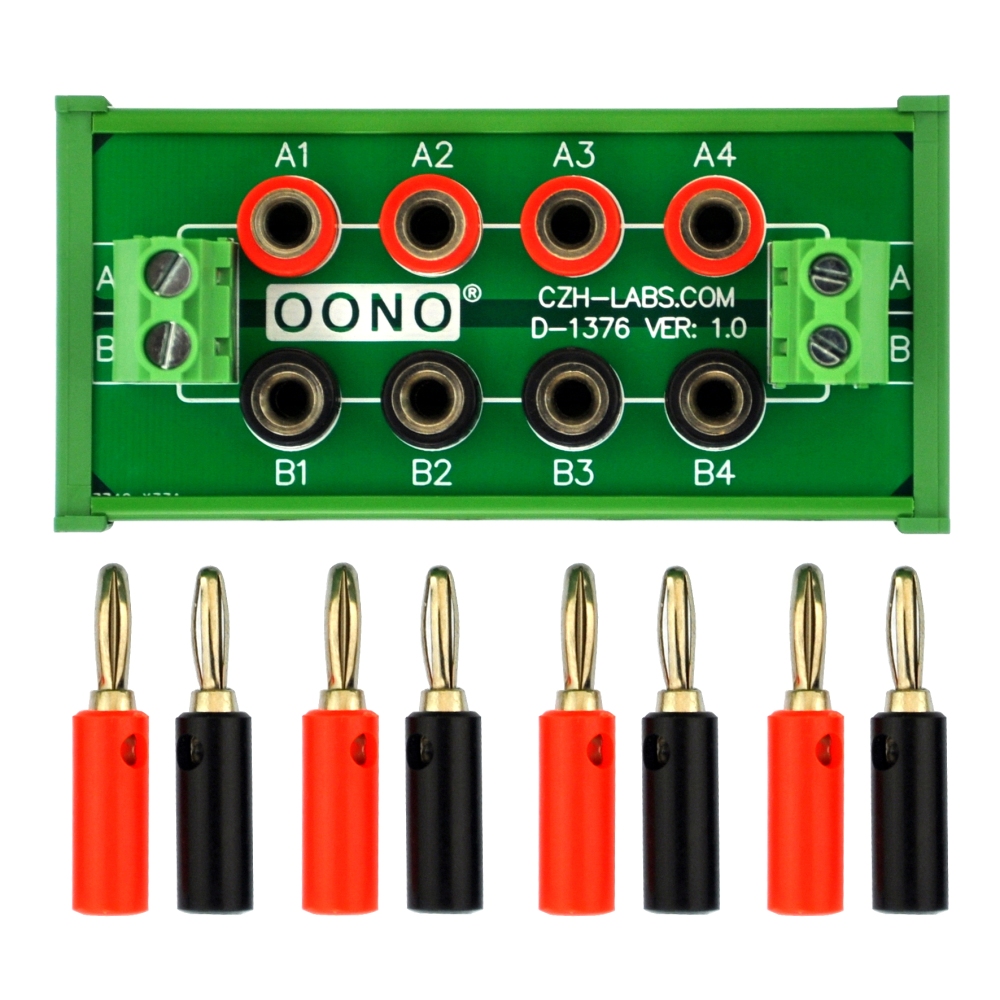

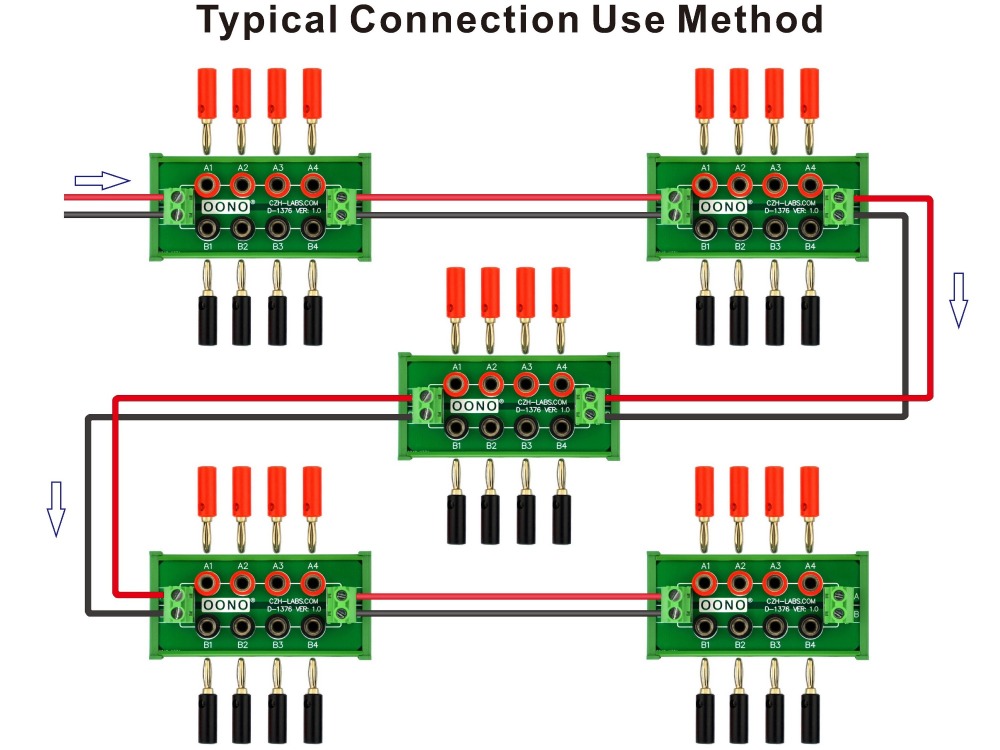

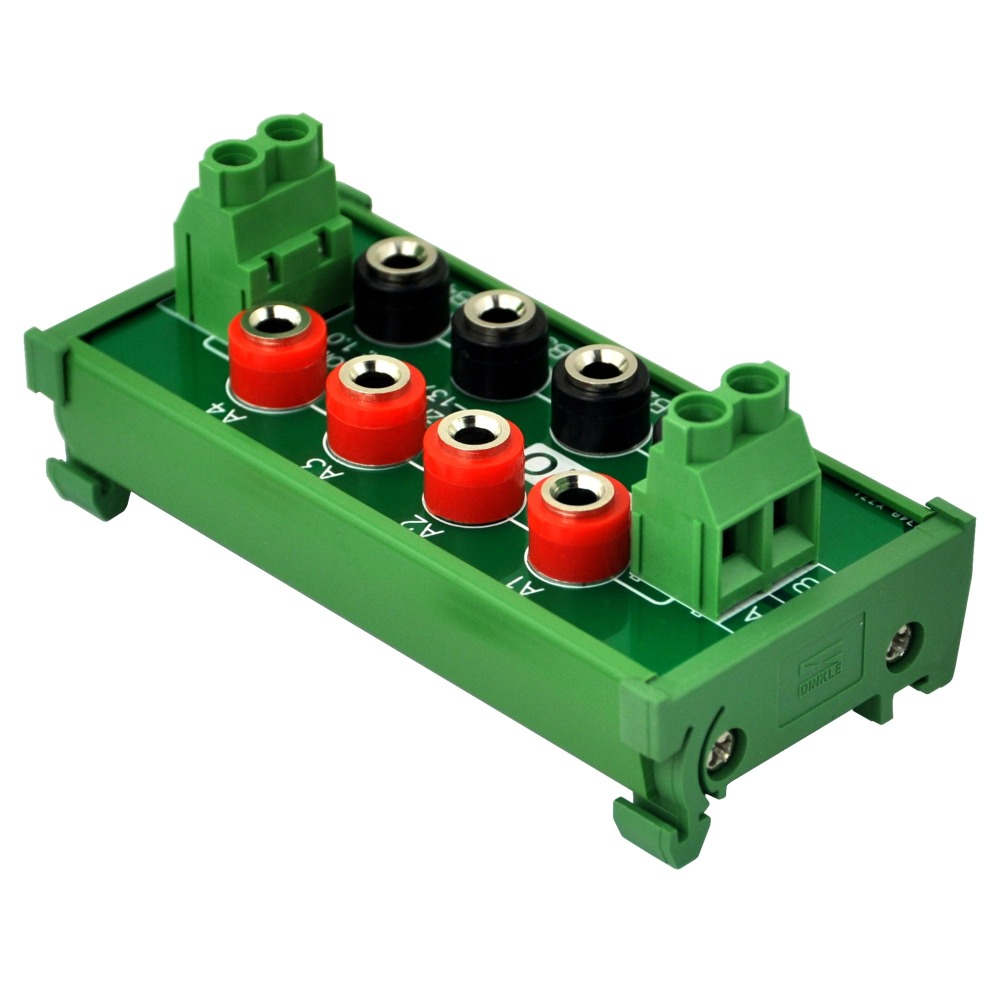

1, DIN Rail Mount 2 x 4 Position Banana Jack Distribution Module. Support for multiple module extension connections.
2, A and B position termianl blocks, maximum current 30 Amp (each position). Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
3, A1 ~ A4 and B1 ~ B4 Banana jacks, maximum current 6 Amp (each position). Rated voltage 60V.

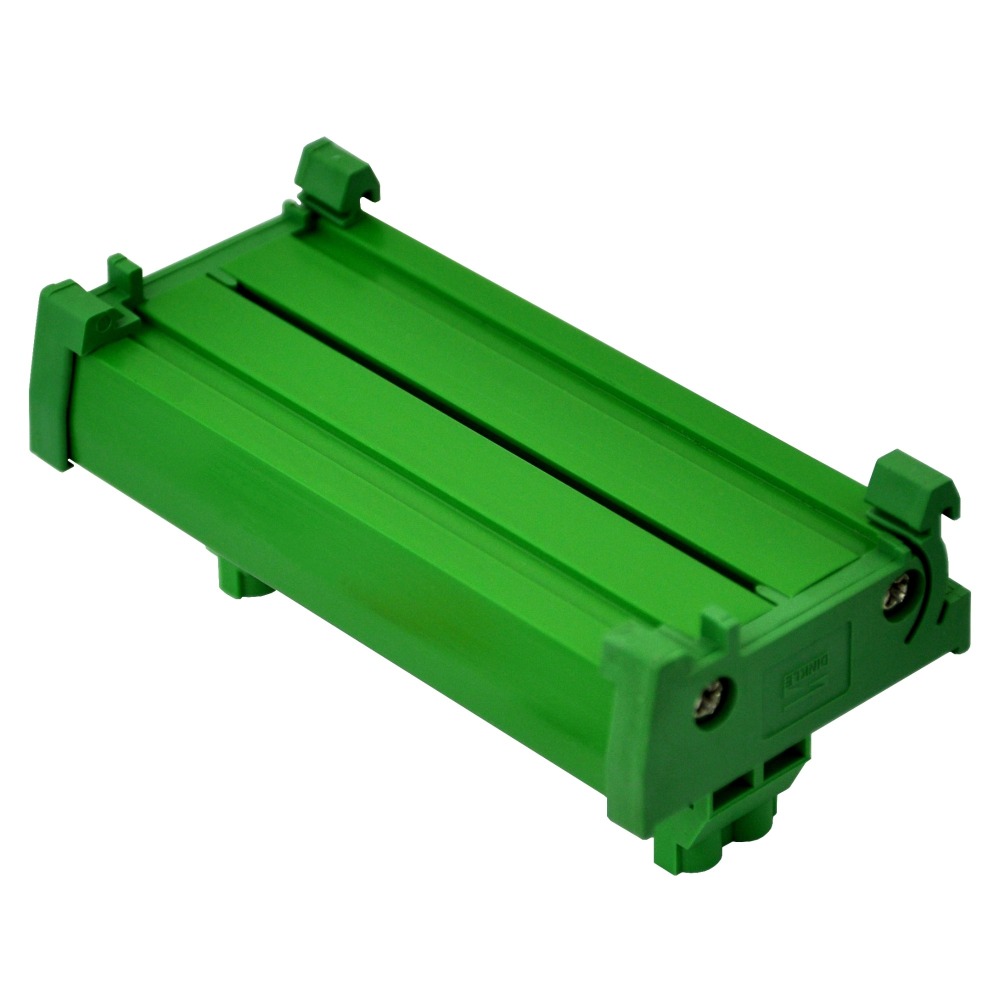

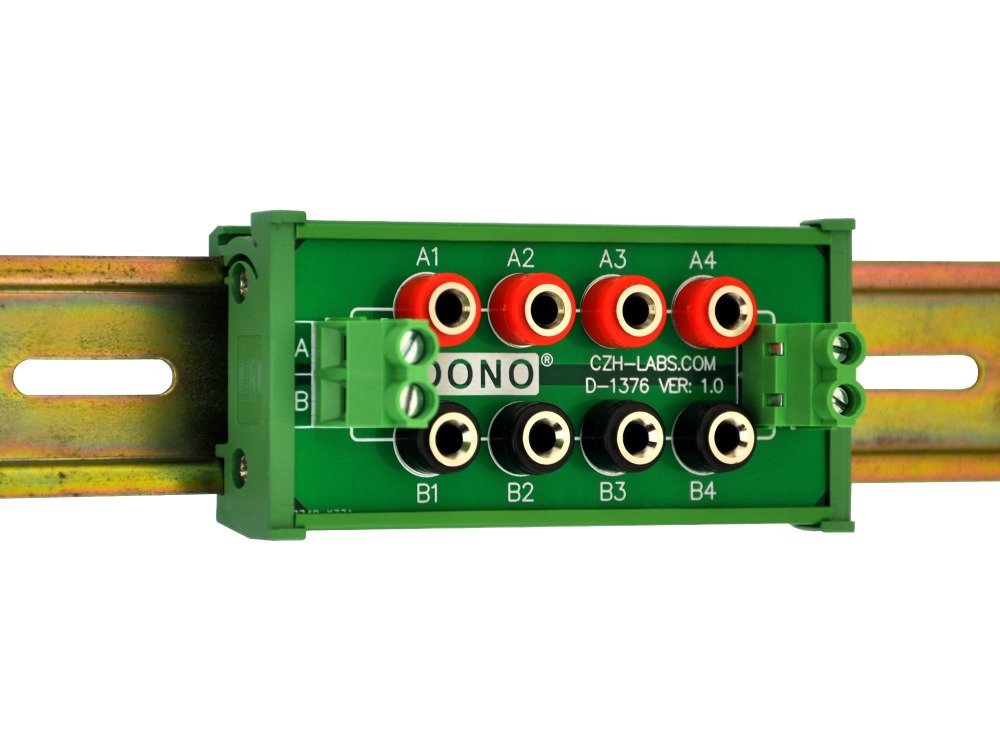

4, High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.
5, Package include: 1pcs 2x4 position banana jack distribution module, 4pcs red banana plugs, 4pcs black banana plugs, 2pcs M3 x 10mm wood screws.
