DIN Rail Mount DC 5 - 58V 12 Channel ATO Fuse Module, CZH-LABS D-1708T/58V

Name: DIN Rail Mount DC 5 - 58V 12 Channel ATO Fuse Module, CZH-LABS D-1708T/58V
Brand: Xiken Tech
SKU: D-1708T/58V
Price: 45 USD
Availability: InStock

SKU: D-1708T/58V

$45.00 ~~$45.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

1, Rated voltage DC 58V. Raterd current 10 Amp for per channel.

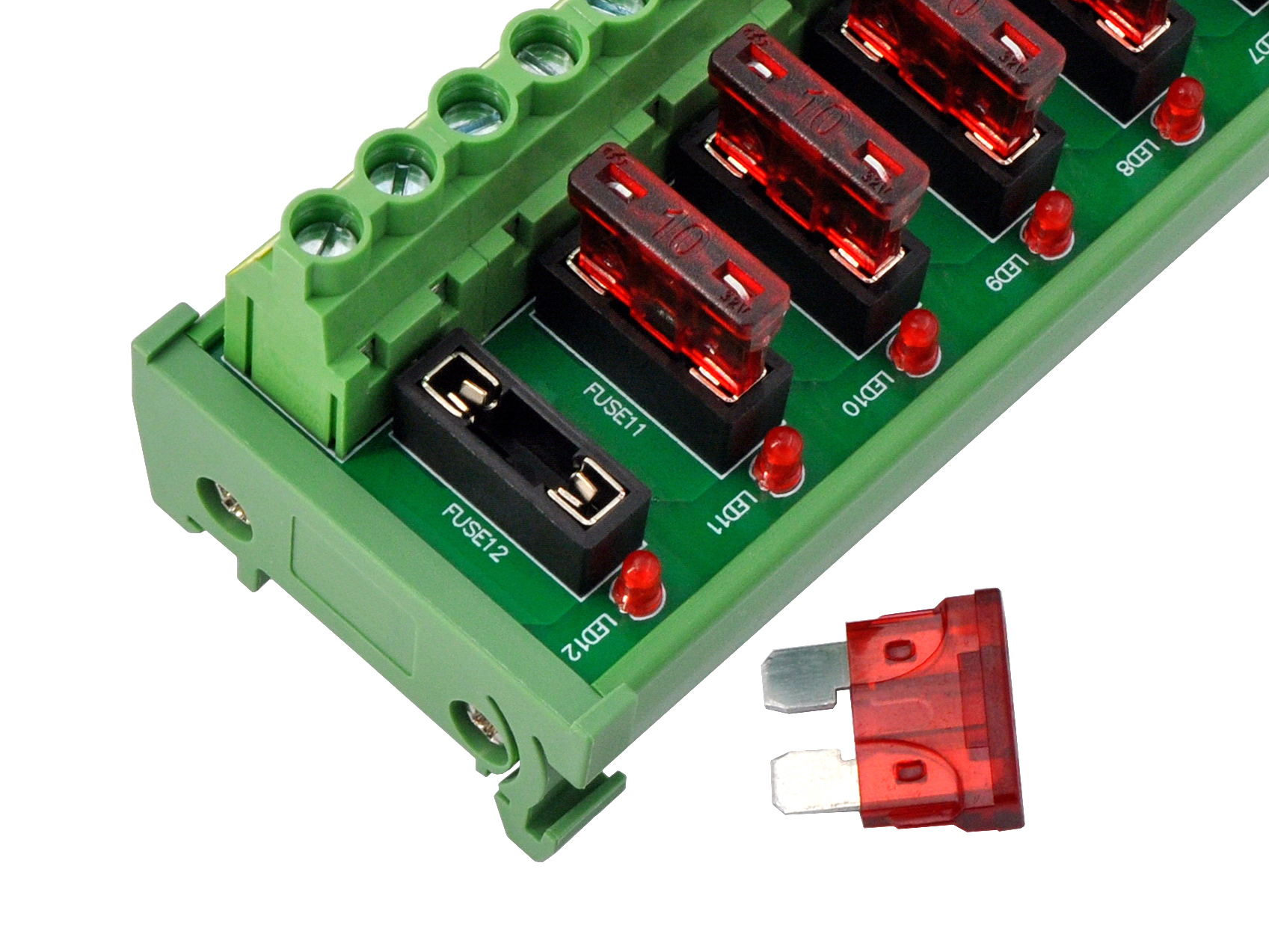

2, Fuse holders for Medium Blade ATO/ATC Fuse, factory-installed fuses 10 Amp. The fuse can be replaced very easily, you can replace these fuses with current ranges of 1 - 30 Amp, but not exceeding 30 Amp.

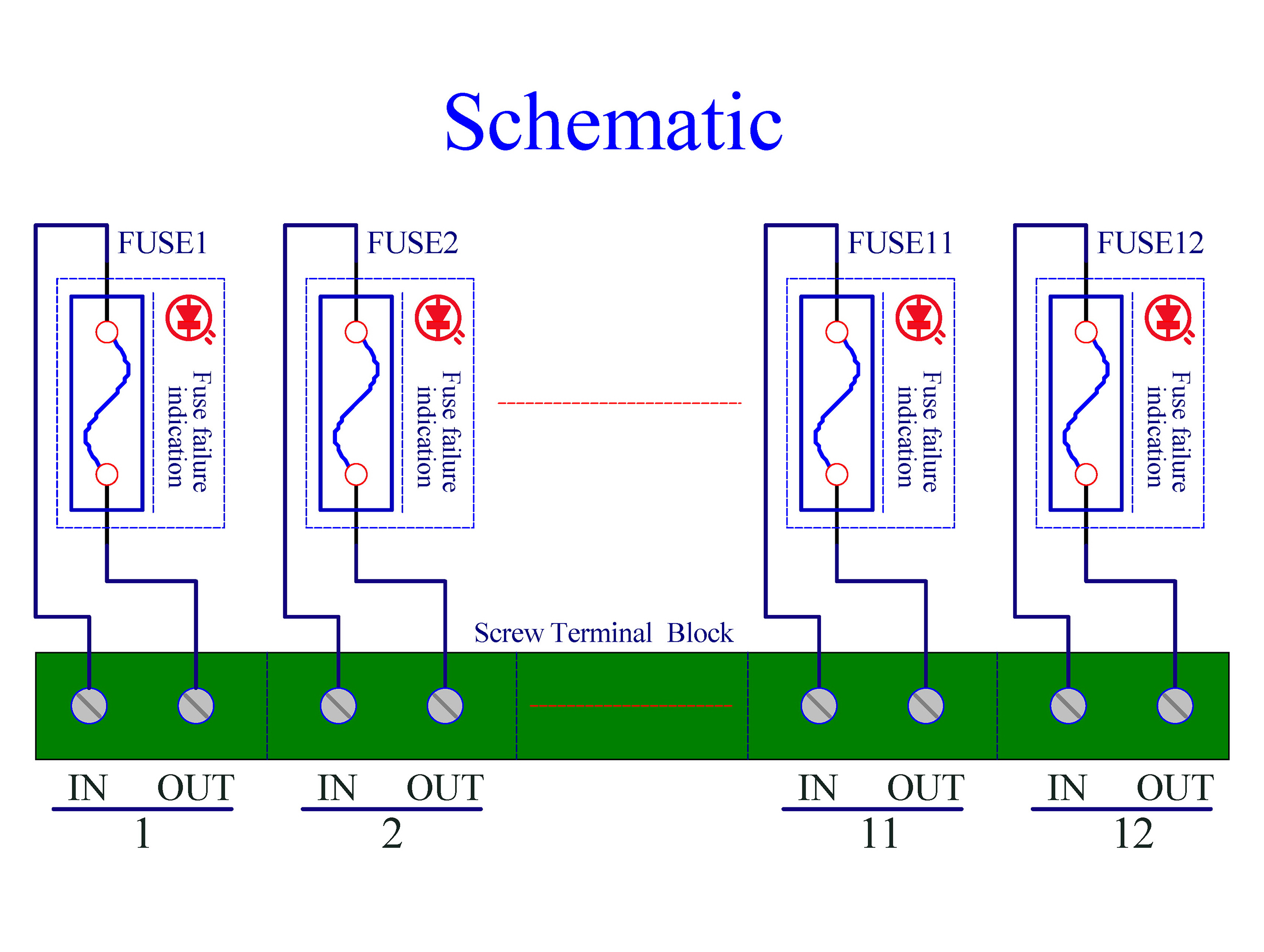

3, Each channel is equipped with a red fault indicator light. When a load is connected and the fuse is blown, the indicator light will light up to serve as a reminder (if no load is connected to form a current loop, the indicator light will not light up).
4, Terminal Block: Maximum current 30 Amp. Pin pitch 7.62mm/0.3", wire size 26 - 10 AWG / 4 square milliseconds, stripping length 8mm, Metric M3 slotted screw.

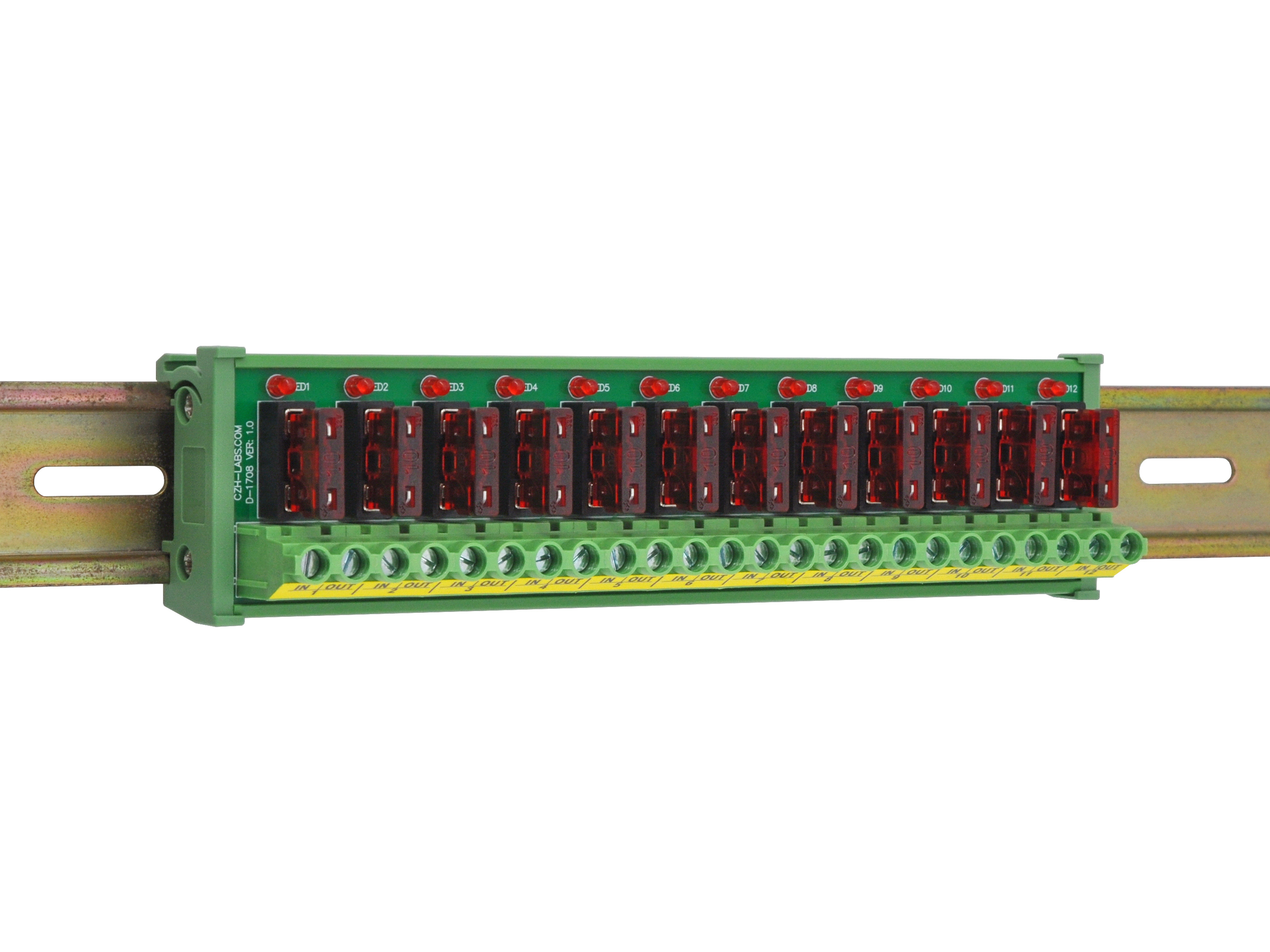

5, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm rail.
6, UL CE certified DIN rail mount carrier. UL VDE CCC certified fuse. UL 94-V0 certified FR-4 fiberglass PCB. UL CE CQC certified terminal blocks.
7, Operating Temperature: -20 to 85C.
