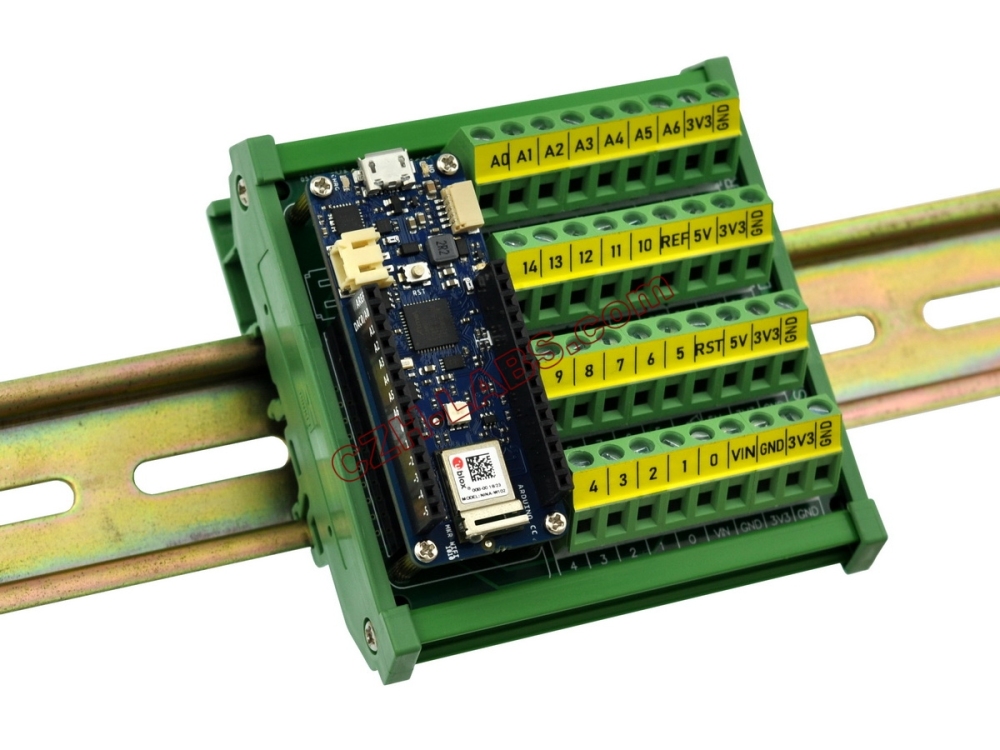

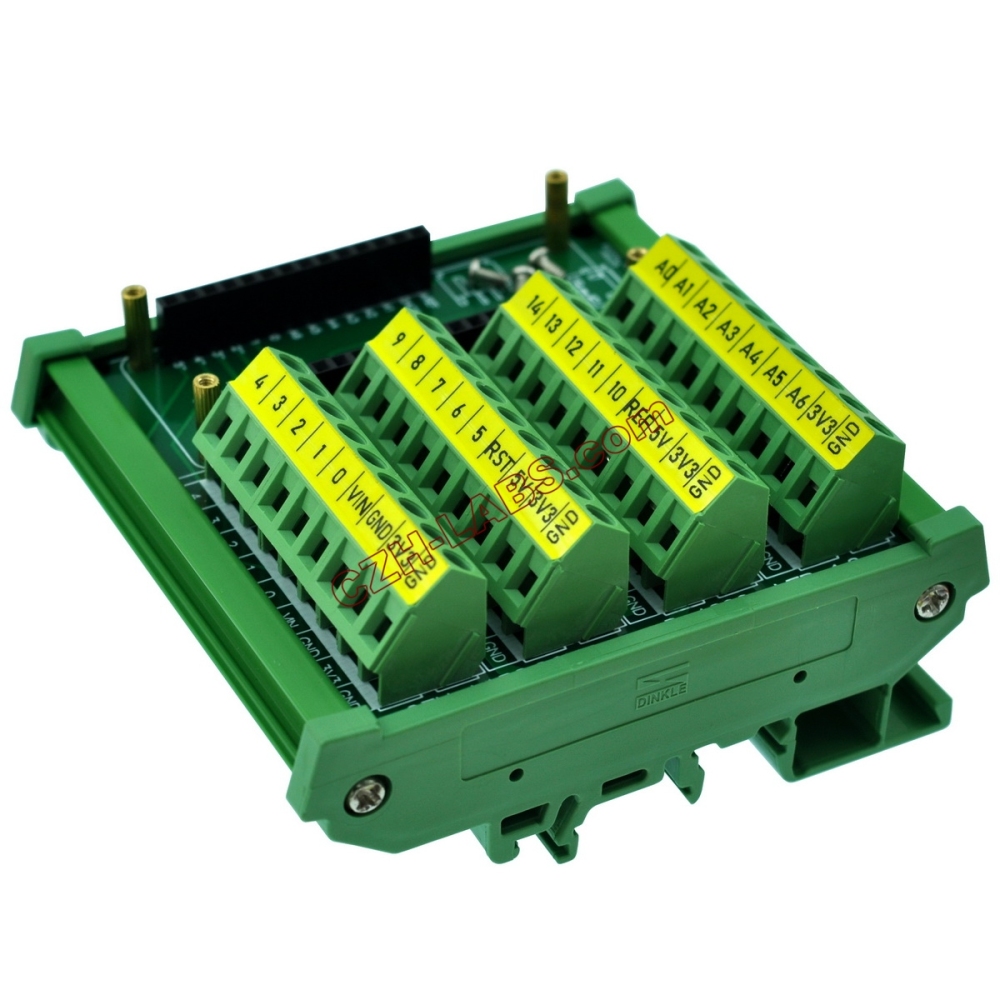

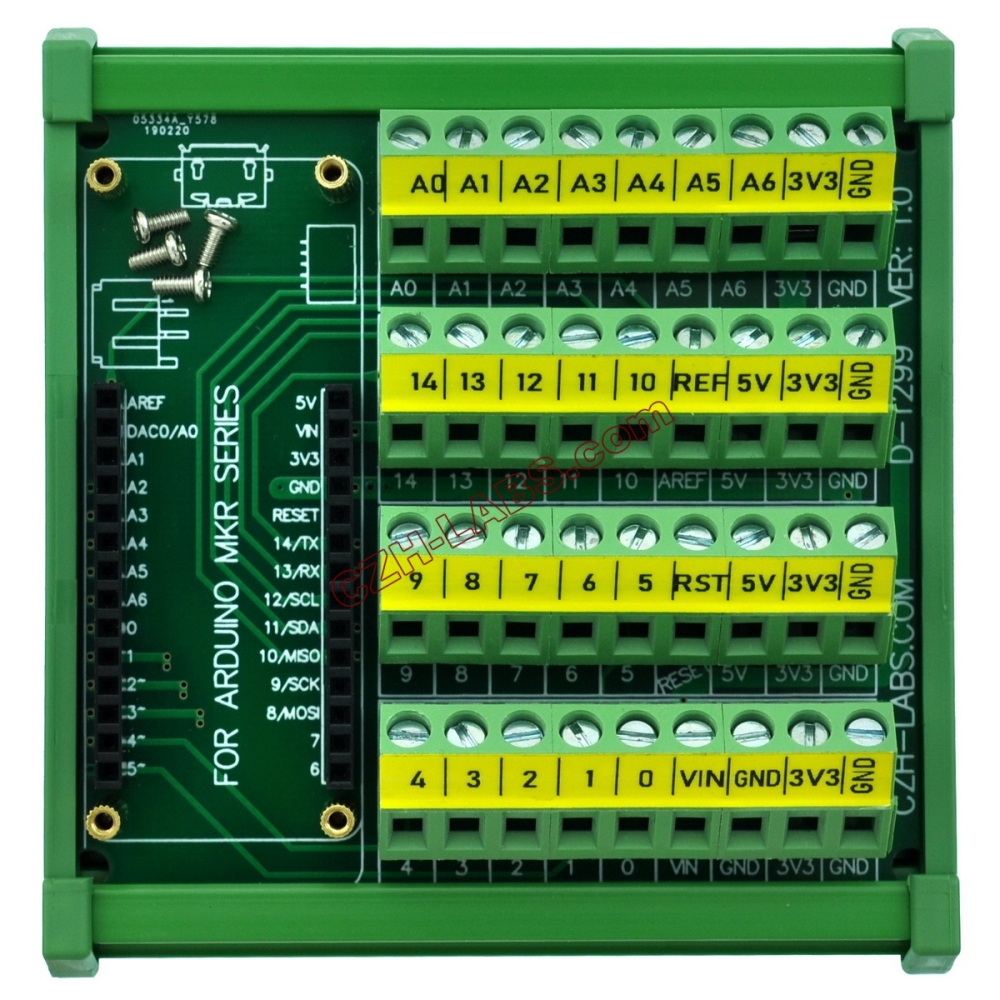

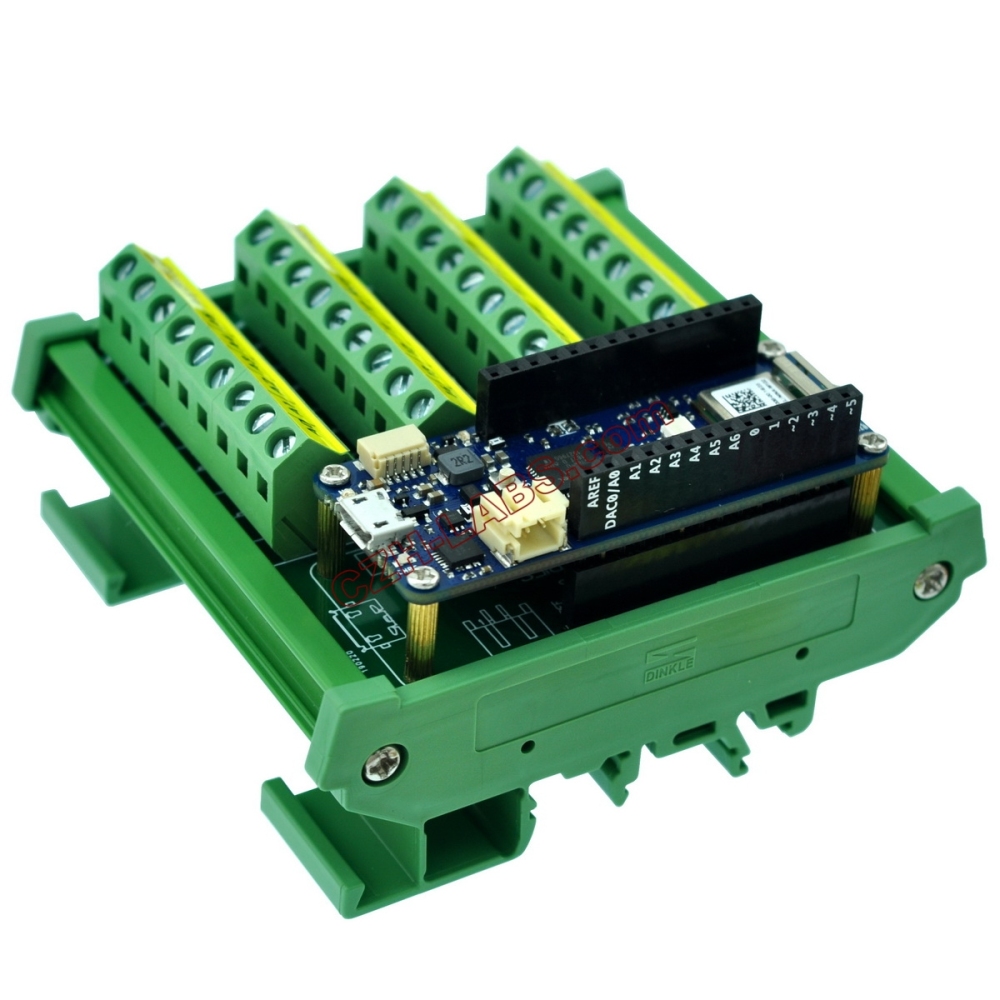

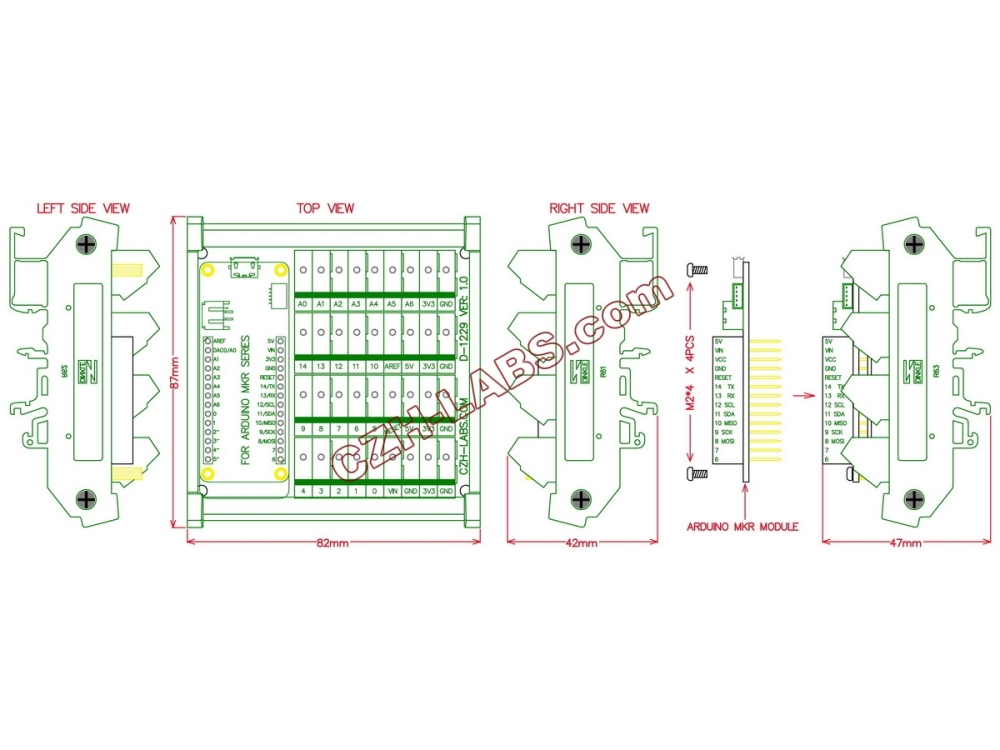

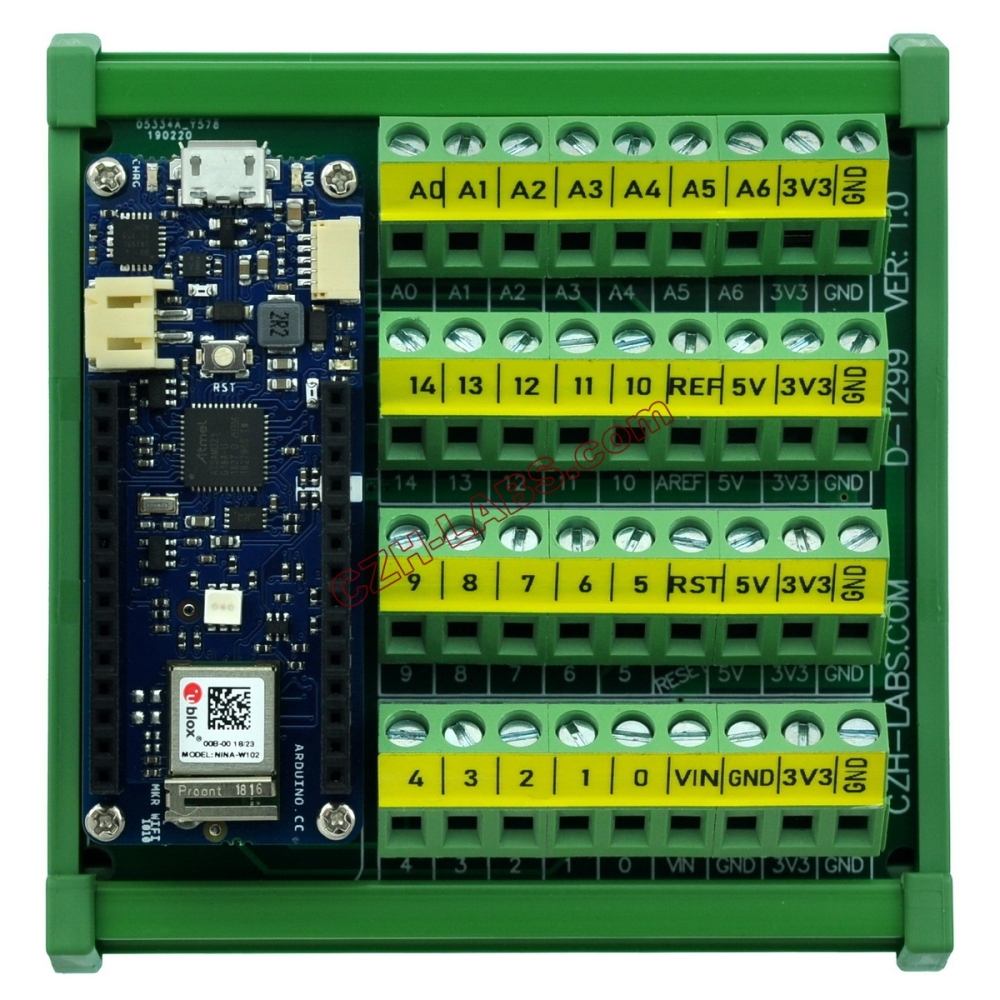

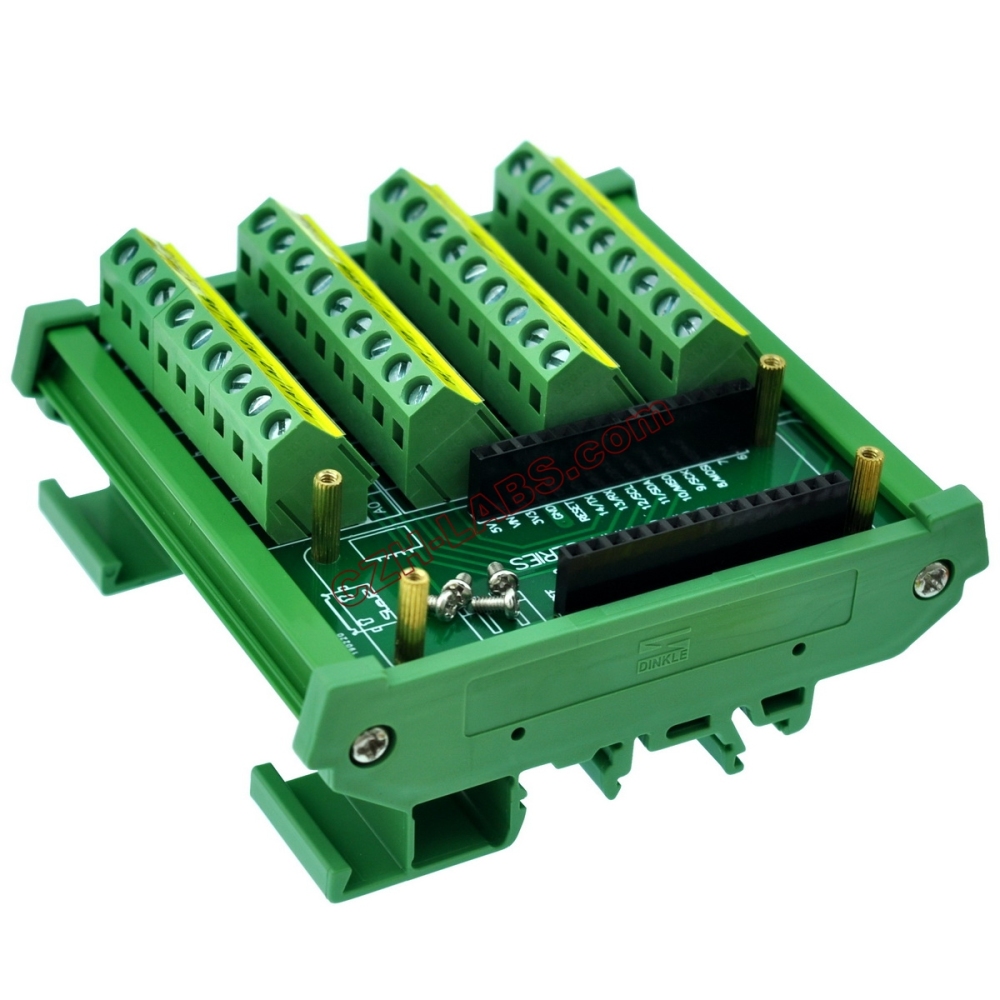

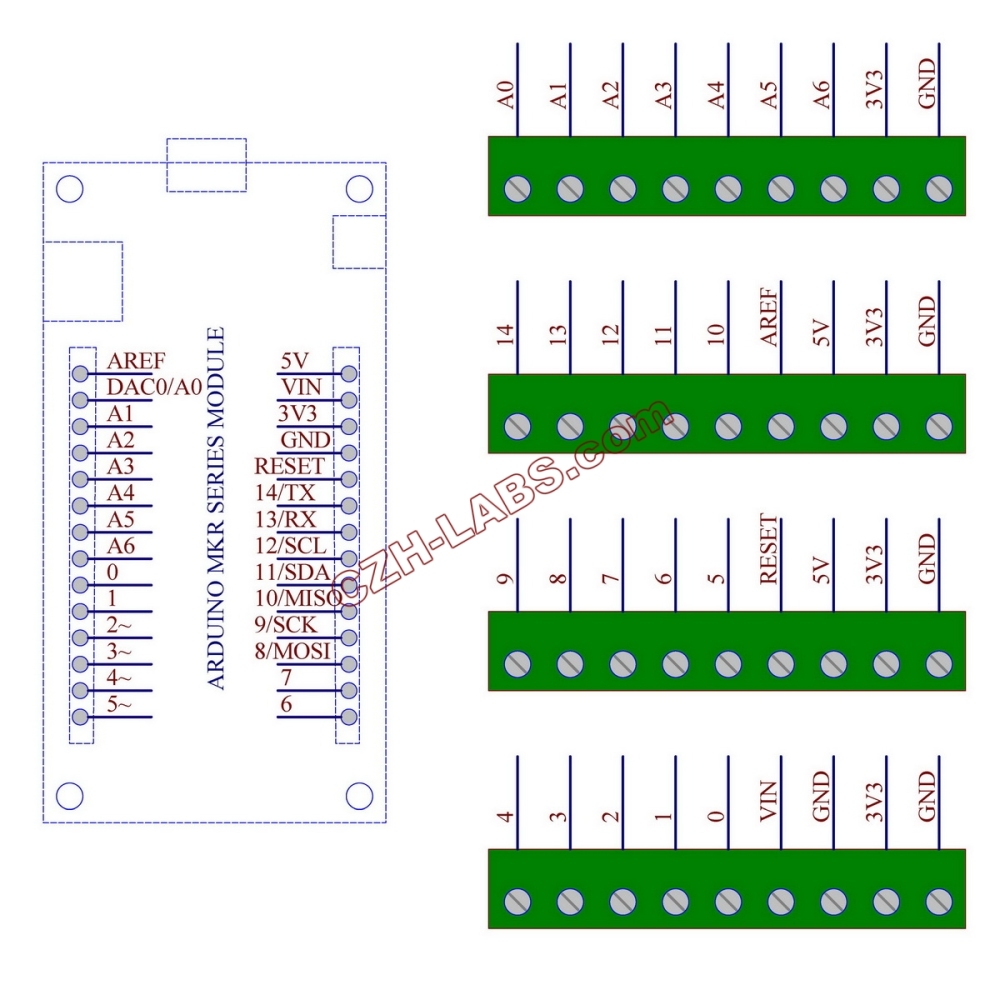

DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.

SKU: D-1299T
$28.00 $28.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $28 = $28
save $0.00
Add to Favorites
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
1/1
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
  • Description

DIN Rail Mount Screw Terminal Block Breakout Board for Arduino MKR. With the breakout board, you can easily extend Arduino MKR projects to industrial control applications.
PCB mount Terminal Block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square.
High quality Taiwan DINKLE Fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
FR-4 fiber glass PCB, dual copper layers.
Note: the item not include Arduino MKR board.
