Home > Breakout Board Module > D-Sub DSUB Breakout Board Module > D-SUB DB15HD Breakout Board > ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
1/1
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
Share:

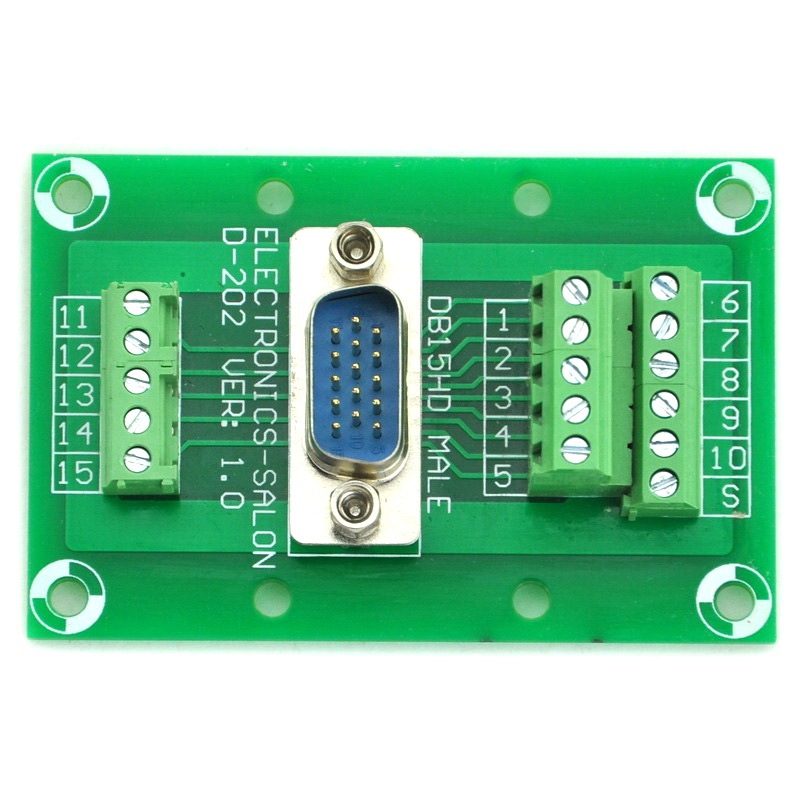

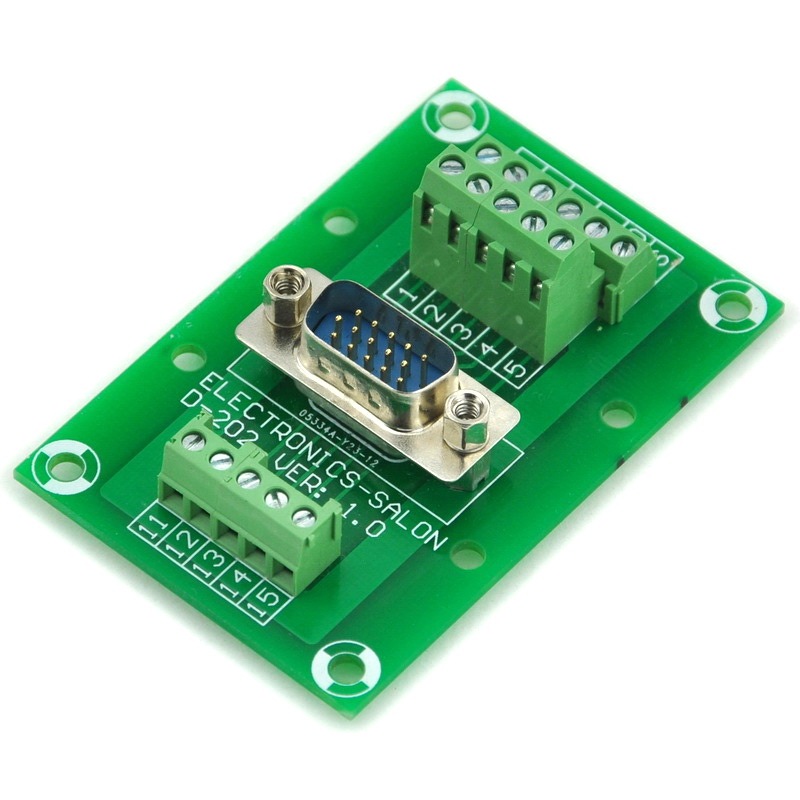

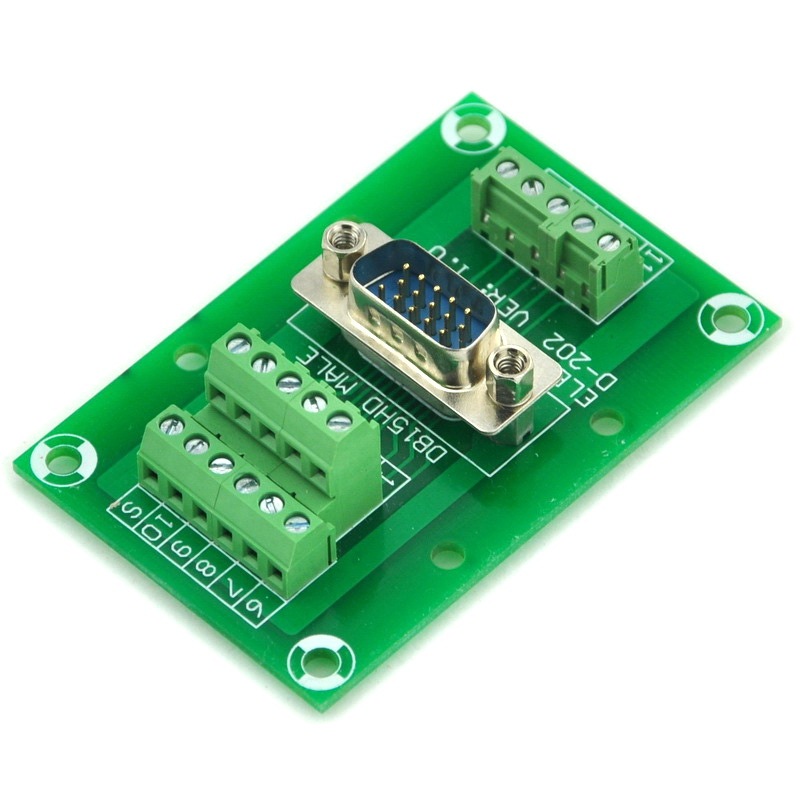

ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.

SKU: D-202
$10.99 $10.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $10.99 = $10.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
1/1
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB15HD Male Header Breakout Board, DSUB.
  • Description
Standard DB15HD male header connector.
Pitch 3.81mm/0.15" miniaturization screw terminal block.
FR-4 fiber glass PCB, dual copper layers.

Rated voltage: 60V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.

Download
