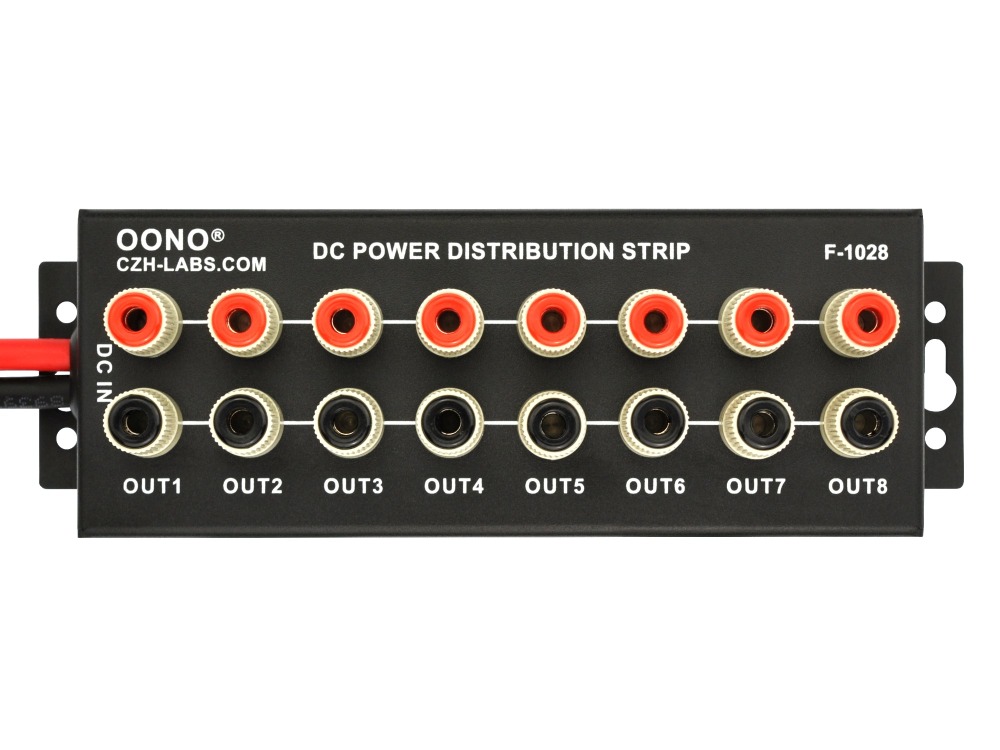

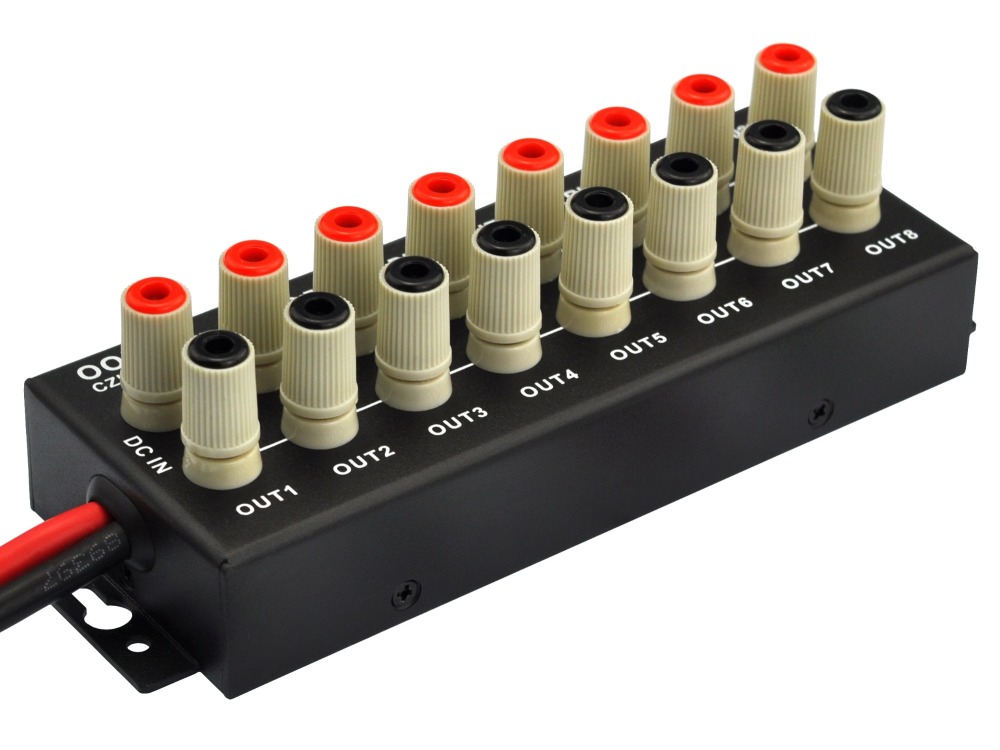

1, F-1028 DC power distribution outlet strip are heavy-duty power distribution strip. 8 position + and - banana jack output.
2, Operating voltage: 0 ~ 60VDC. Maximum allow input current: 50 Amp. No-load current: 0mA. Maximum output current for each position: 24 Amp. Total maximum current 50 Amp.

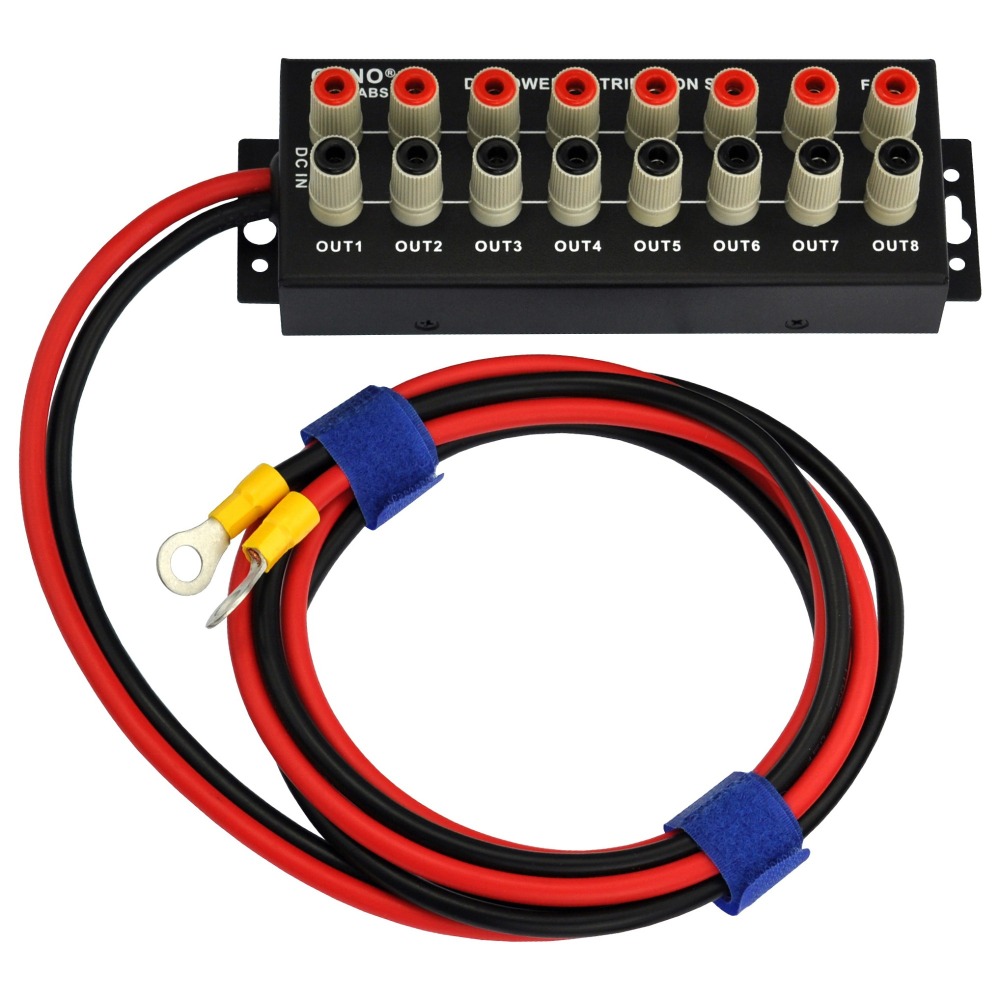

3, Red(+) and Black(-) colors DC input cable, length 1.5m / 5ft. Conductor section diameter 10mm square (approximately equivalent to 7AWG). 5/16 (8.4mm) ring terminals.

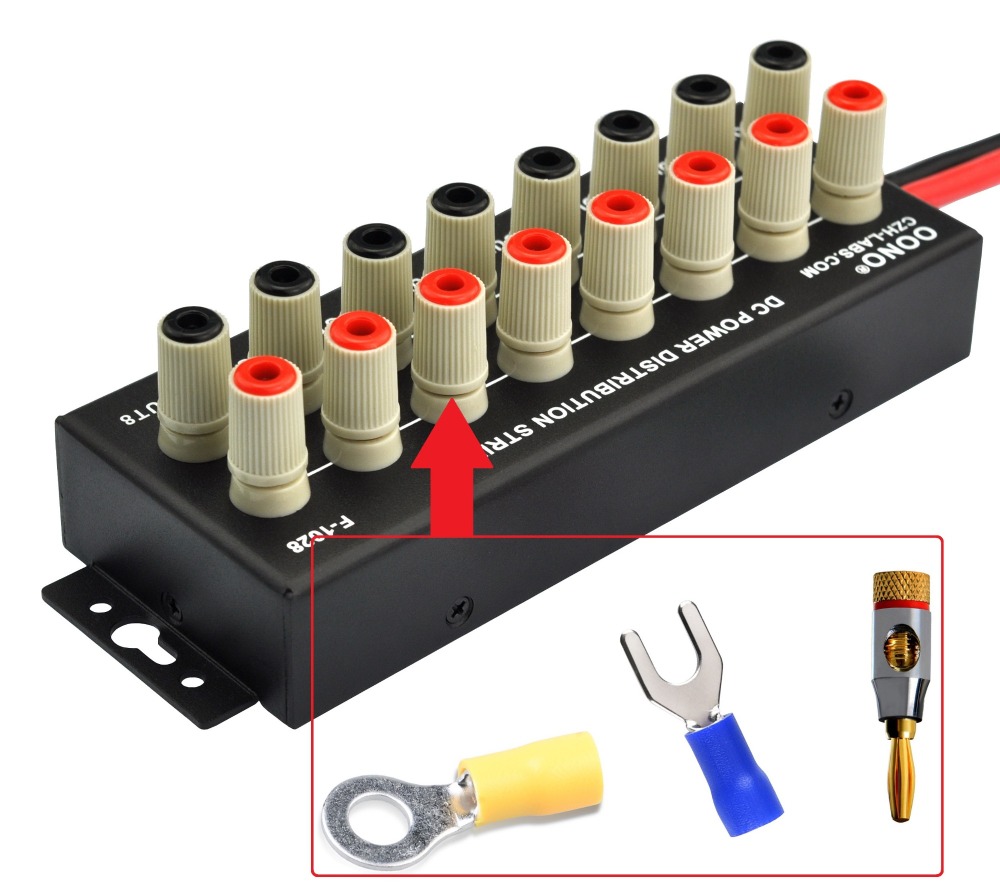

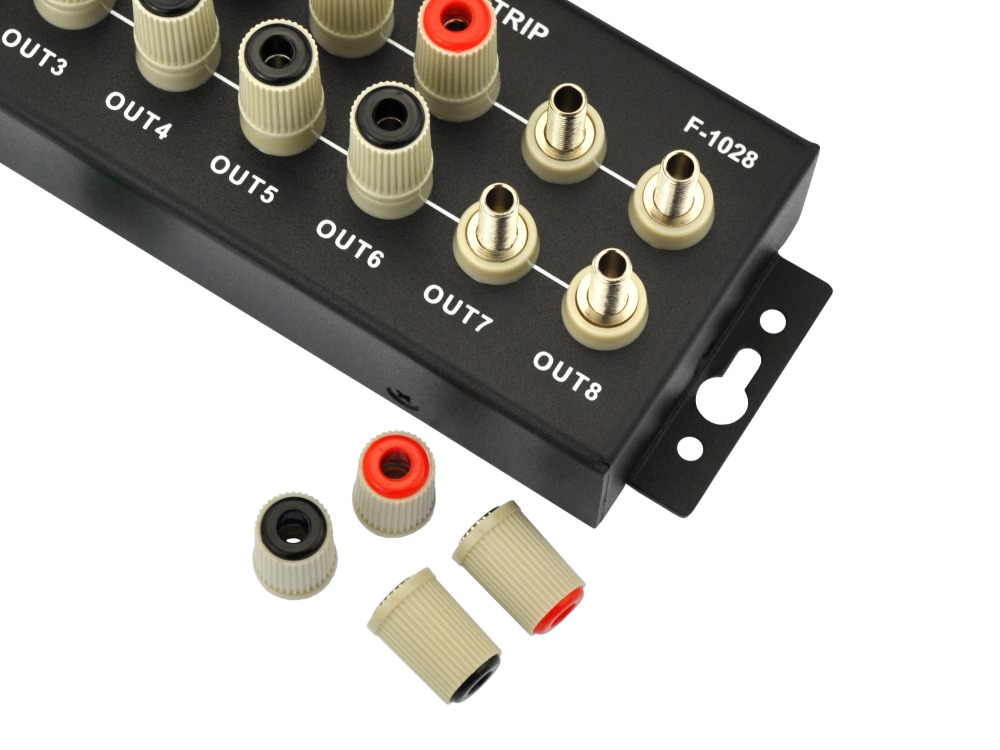

4, 2 x 8 pisitions high current brass (nickel-plated) standard banana jacks, support standard banana plugs, 1/4 (6.4mm) ring / spade terminals (Note: the item not include banana plug, 1/4 ring / spade terminals).

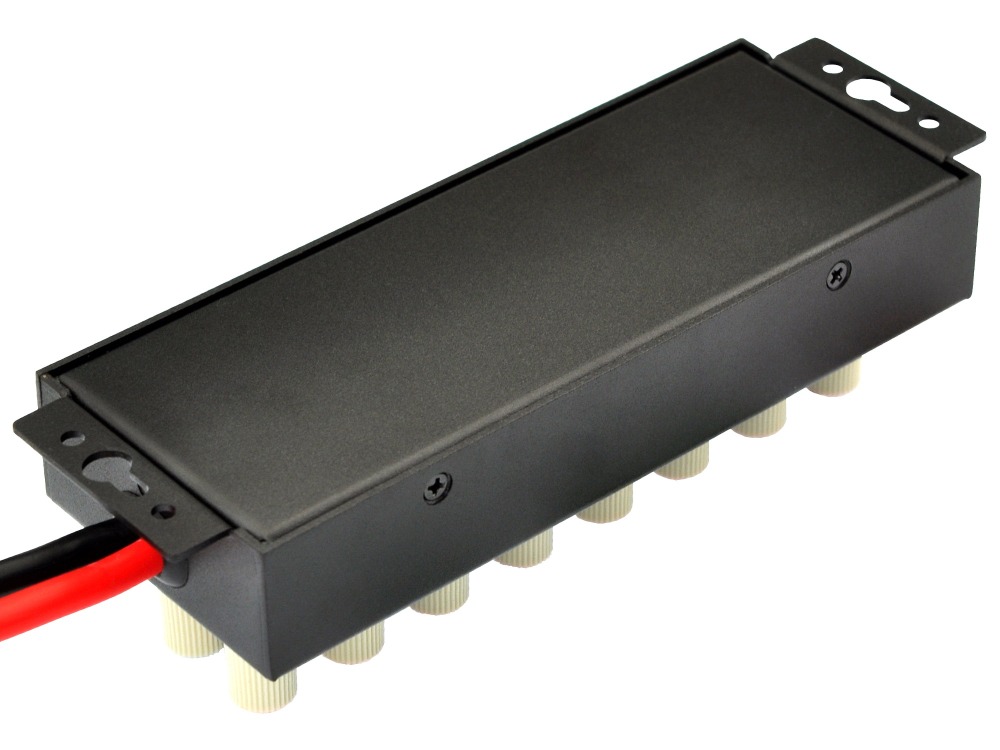

5, High quality aluminum enclosure, material thickness 1.5mm / 0.06". Support screw mount, wall mount, of course can also be placed on the desktop. If you purchase together our CASE-015 DIN adapter bracket, it can also be installed on 35mm, 32mm or 15mm DIN rail.
