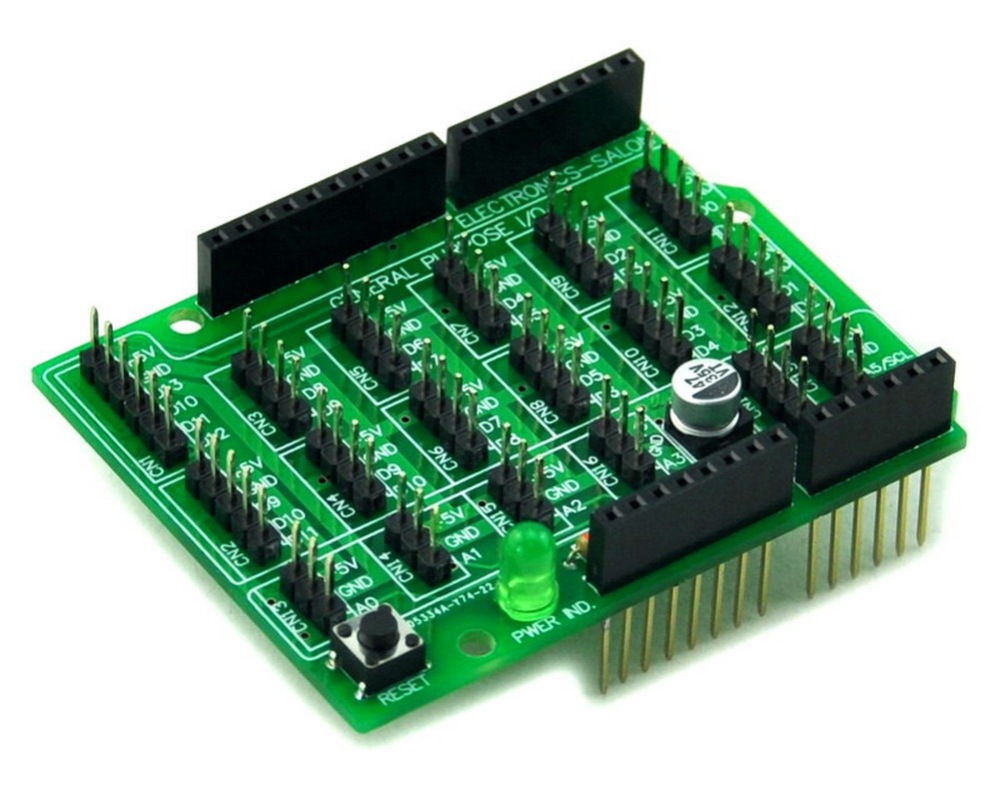

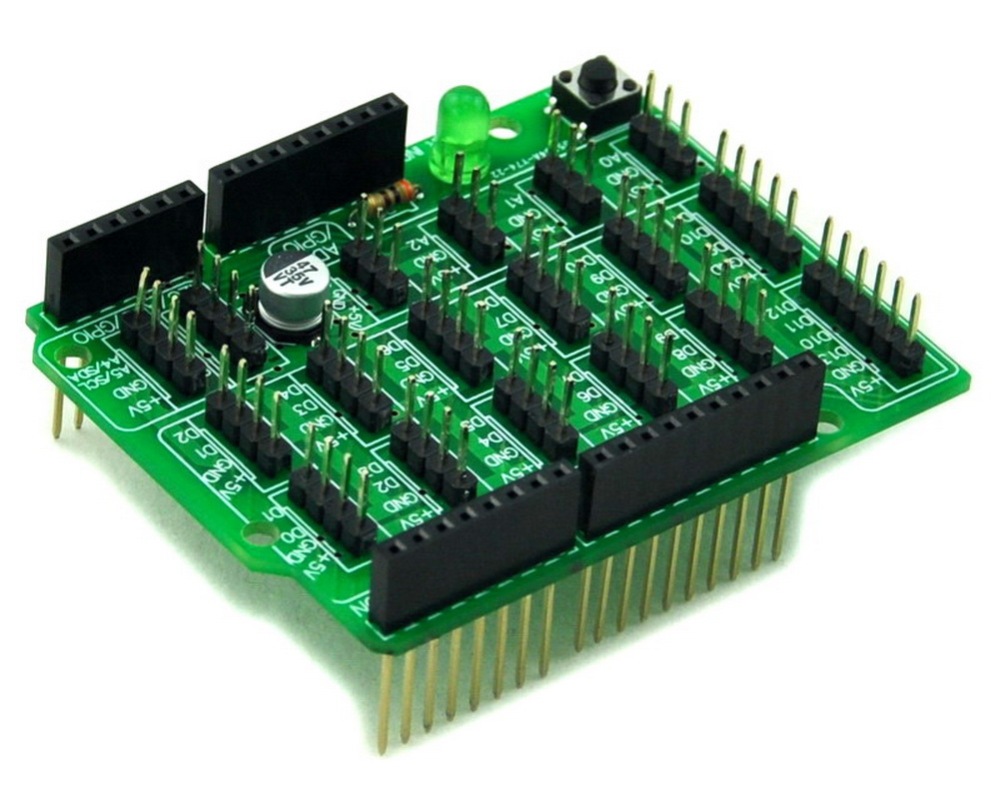

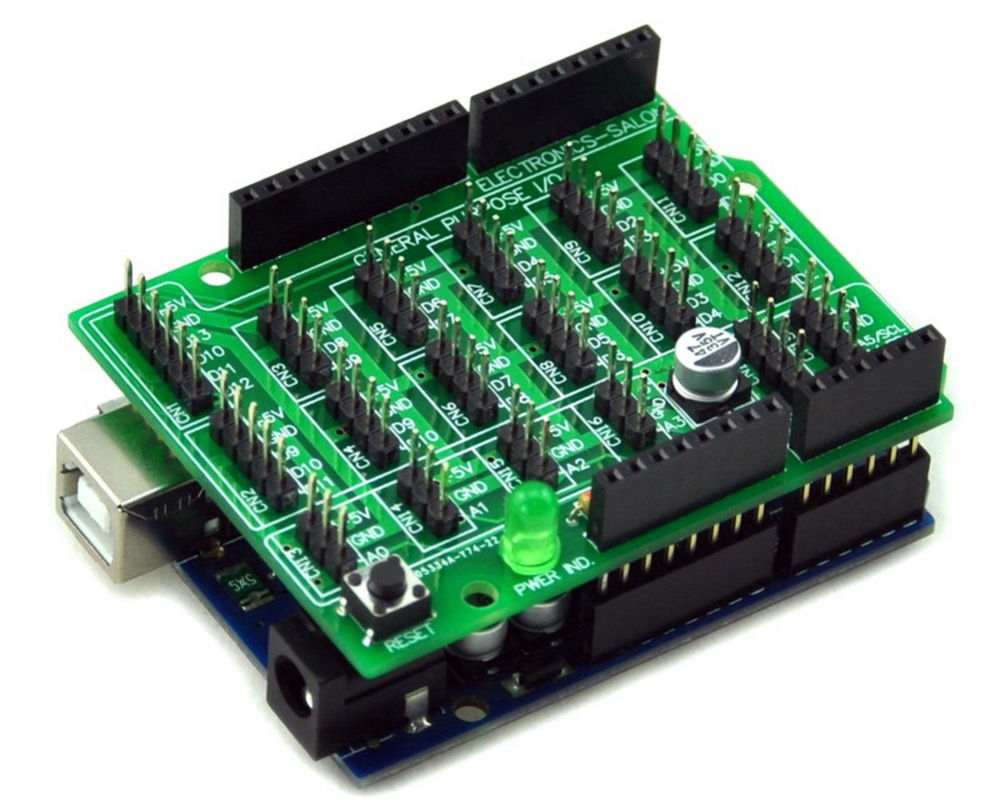

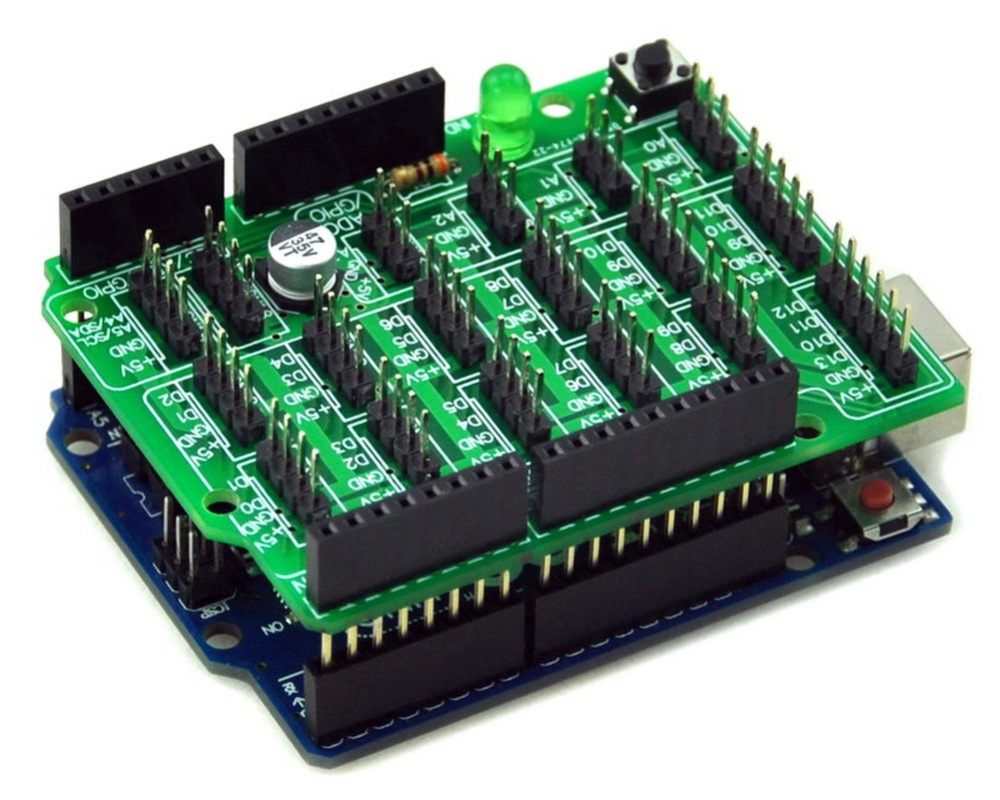

I/O Extension Board Kit for Arduino UNO DIY. [SOLDERING REQUIRED]

Name: I/O Extension Board Kit for Arduino UNO DIY. [SOLDERING REQUIRED]
Brand: Xiken Tech
SKU: D-259U
Price: 7.99 USD
Availability: InStock

SKU: D-259U

$7.99 ~~$7.99~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

This is unassembled version, SOLDERING REQUIRED, so you can make flexible use.

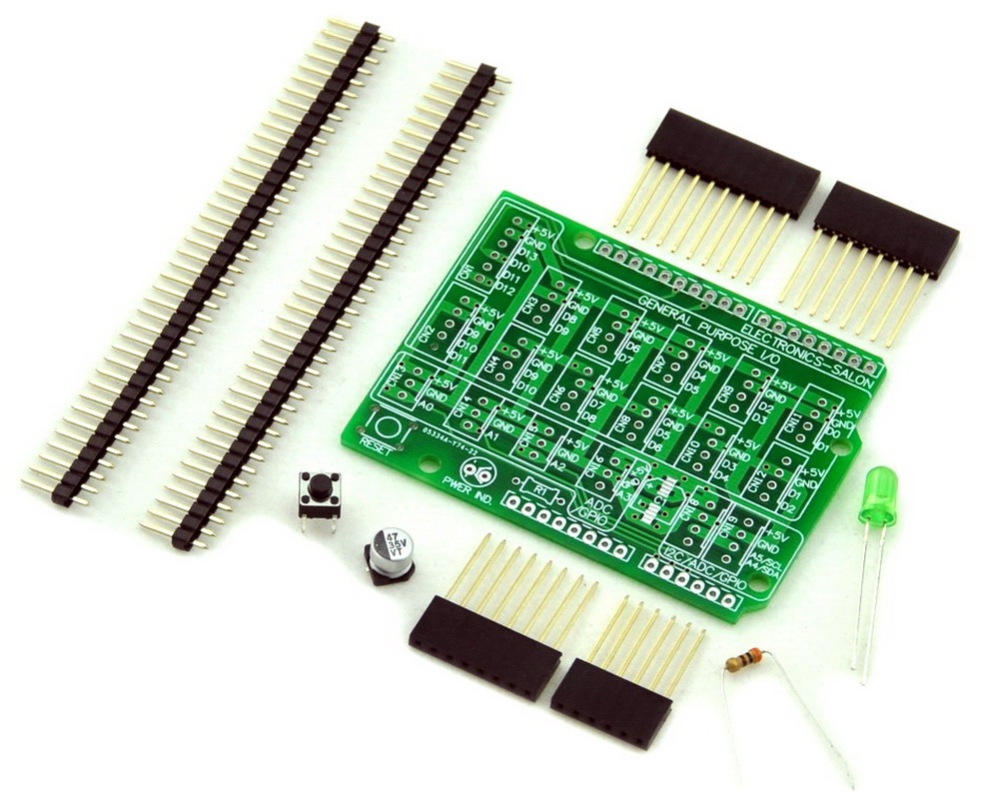

The kit included:
I/O extension PCB, 1 pcs.
Male header, 80 pins.
Female Header Socket, 1x 6pin, 2x 8pin, 1x 10pin.
Ø5mm green LED, 1 pcs.
300 ohm 1/4W resistor, 1 pcs.
47uF/35V SMD electrolytic capacitor.
6x6x5mm tactile switch, 1 pcs.

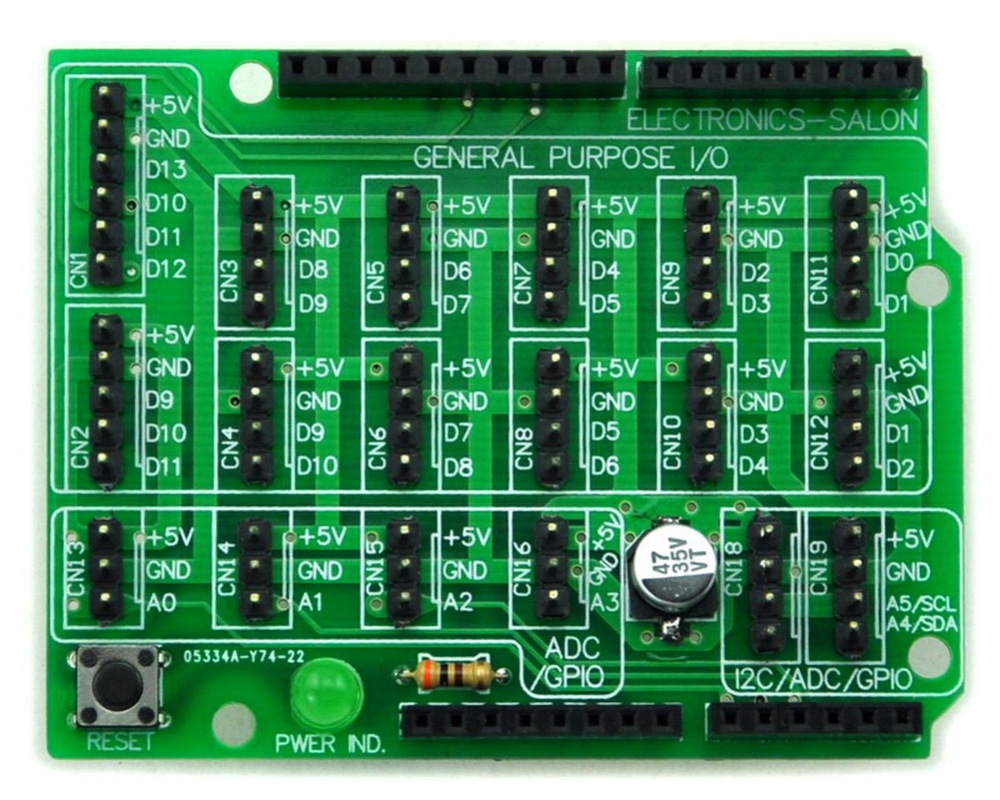

PCB Dimension 68.58mm x 53.34mm / 2.7" x 2.1"
PCB thickness 1.6mm, high quality FR-4 glass fiber PCB.
Male header pitch 0.1"/2.54mm, pin height (from PCB to top) 8.5mm / 0.34"
Female Header Socket pitch 0.1"/2.54mm, pin length 15mm / 0.59"
Note: the item not include Arduino UNO module.
