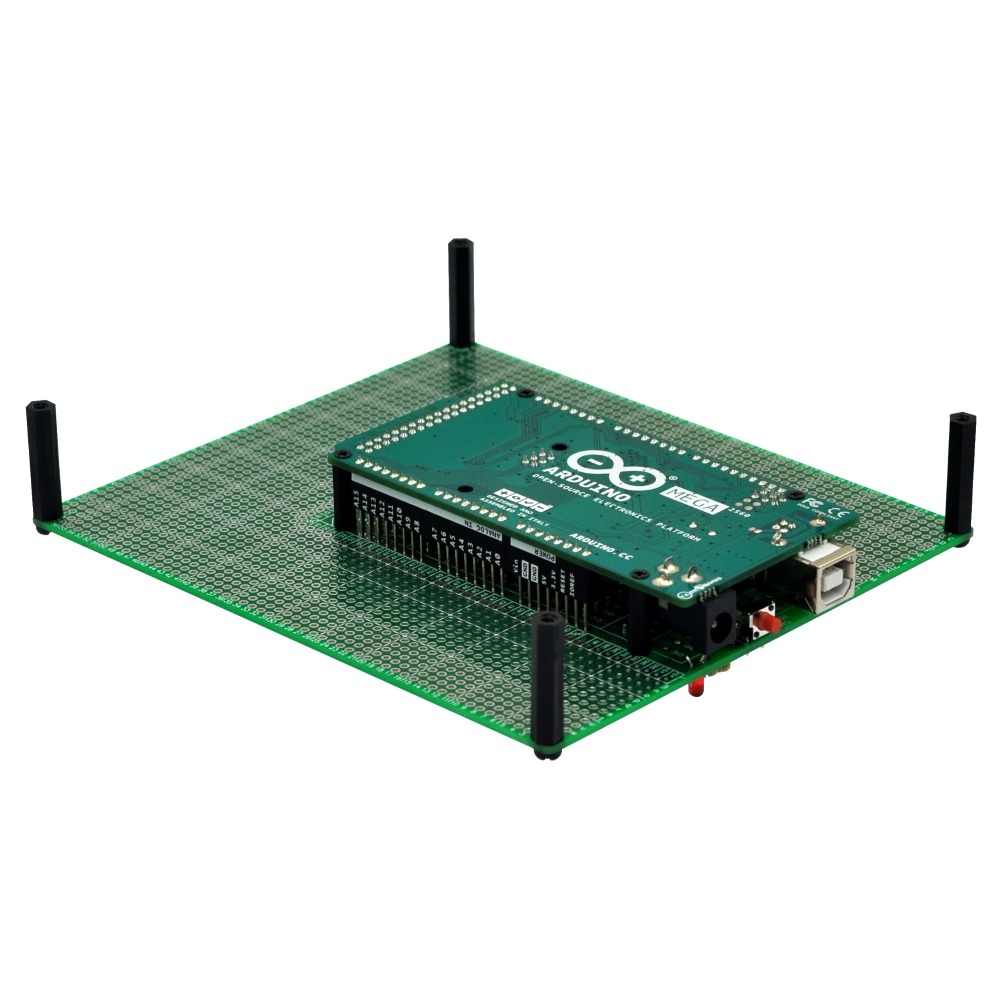

Prototype DIY PCB Terminal Block Board Kit for Arduino MEGA2560 R3

Name: Prototype DIY PCB Terminal Block Board Kit for Arduino MEGA2560 R3
Brand: Xiken Tech
SKU: D-1346
Price: 25 USD
Availability: InStock

SKU: D-1346

$25.00 ~~$25.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

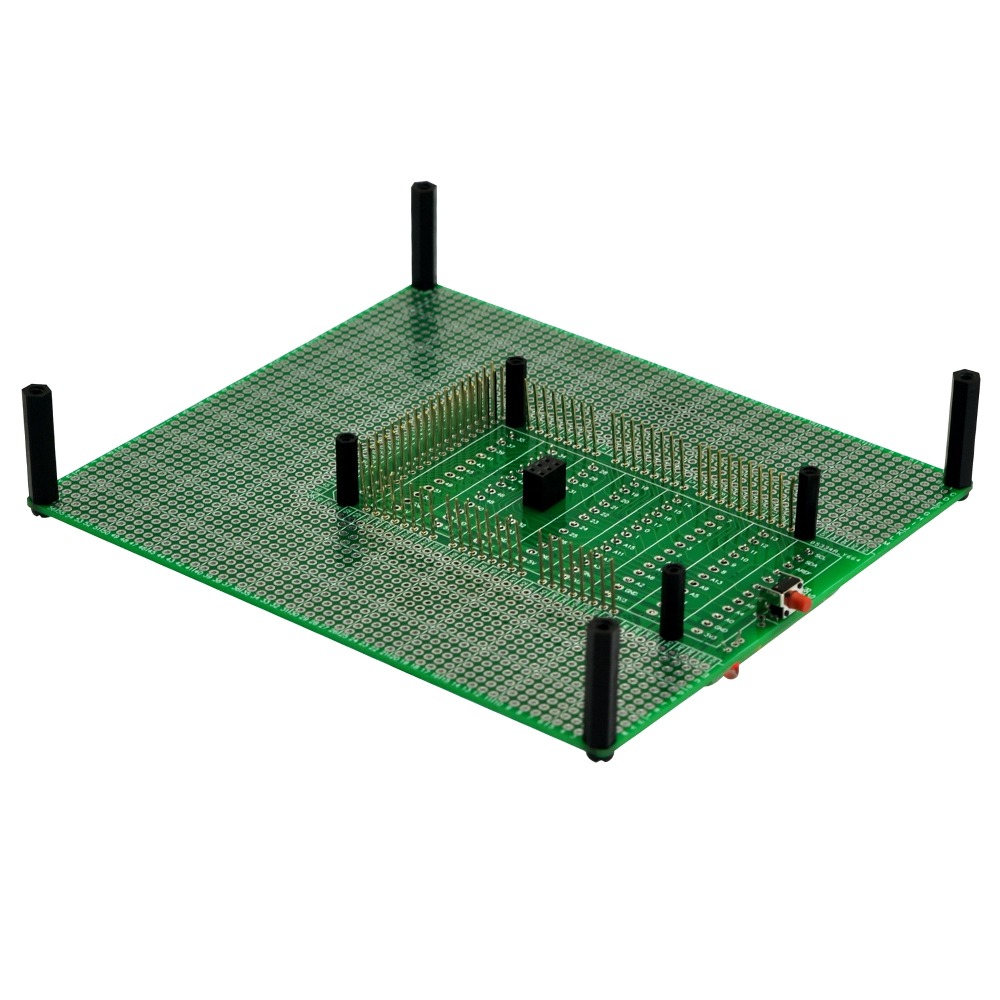

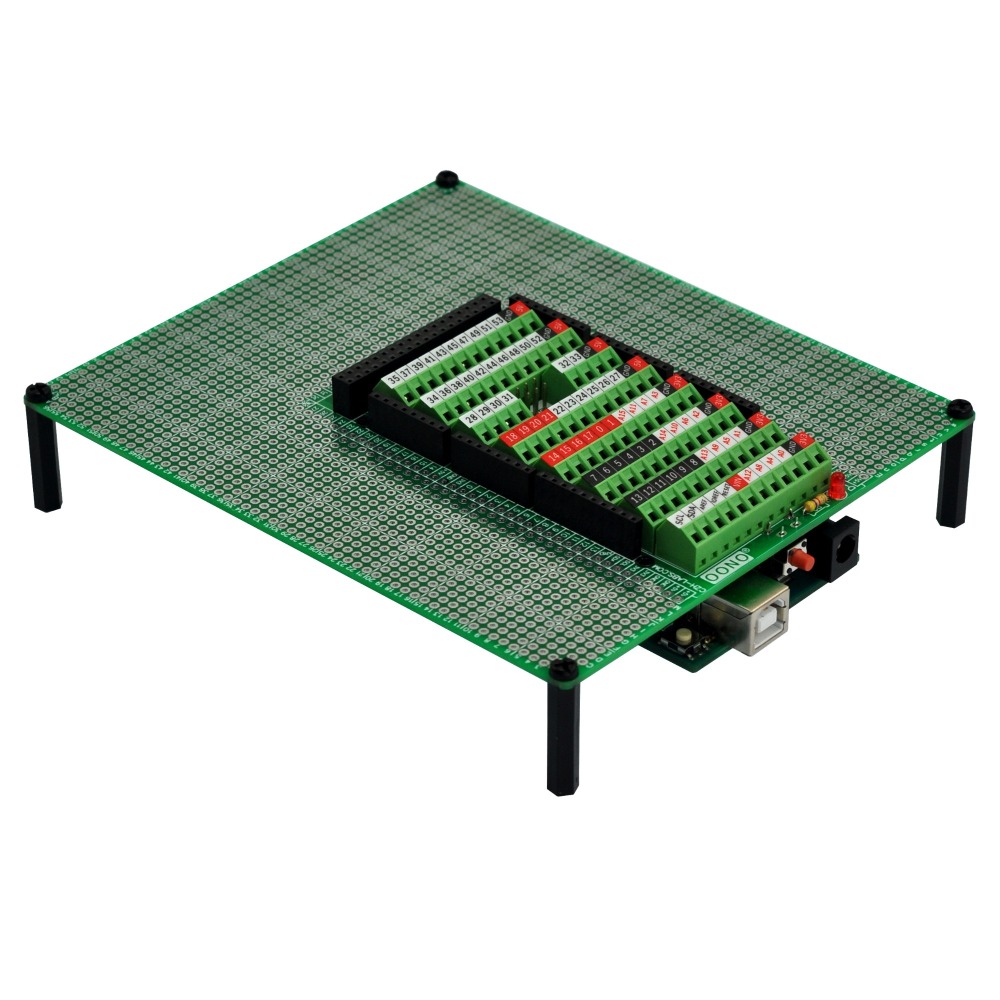

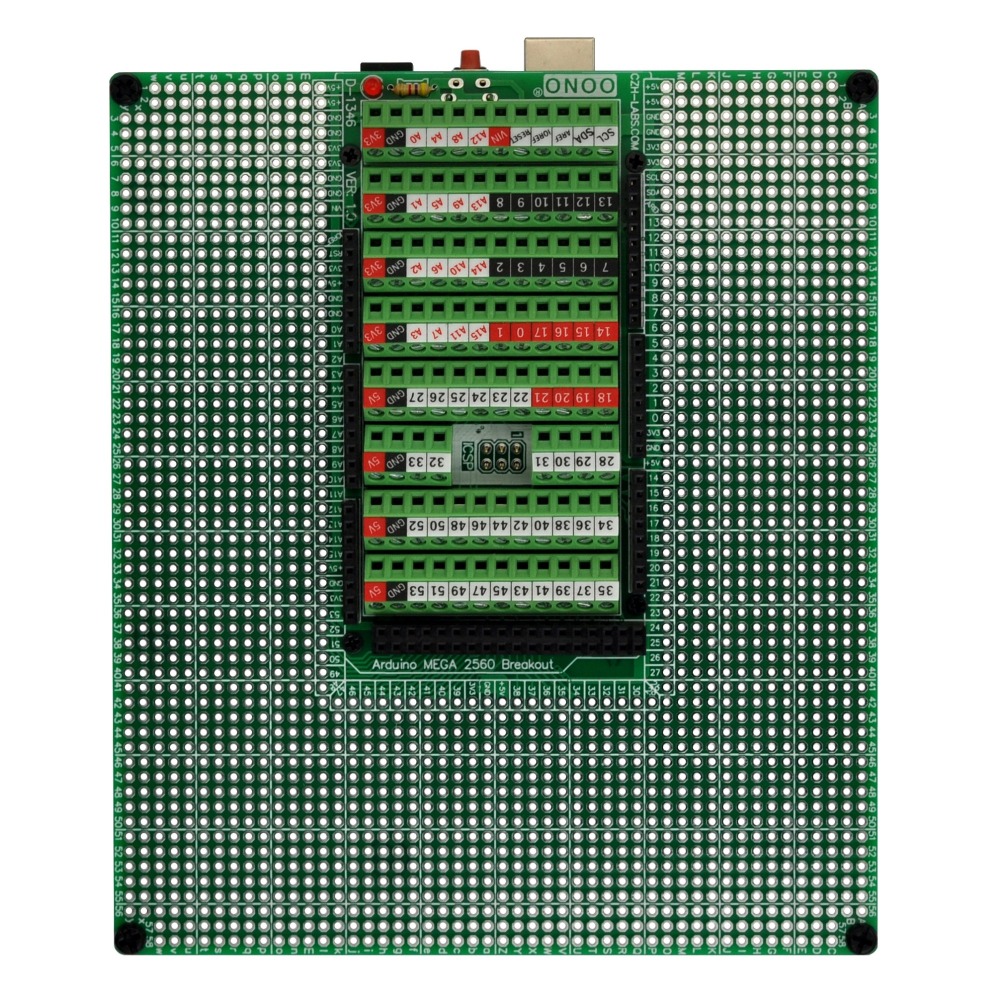

1, Prototype DIY PCB Terminal Block Board Kit for Arduino MEGA2560 R3, you can make DIY for your Arduino projects.

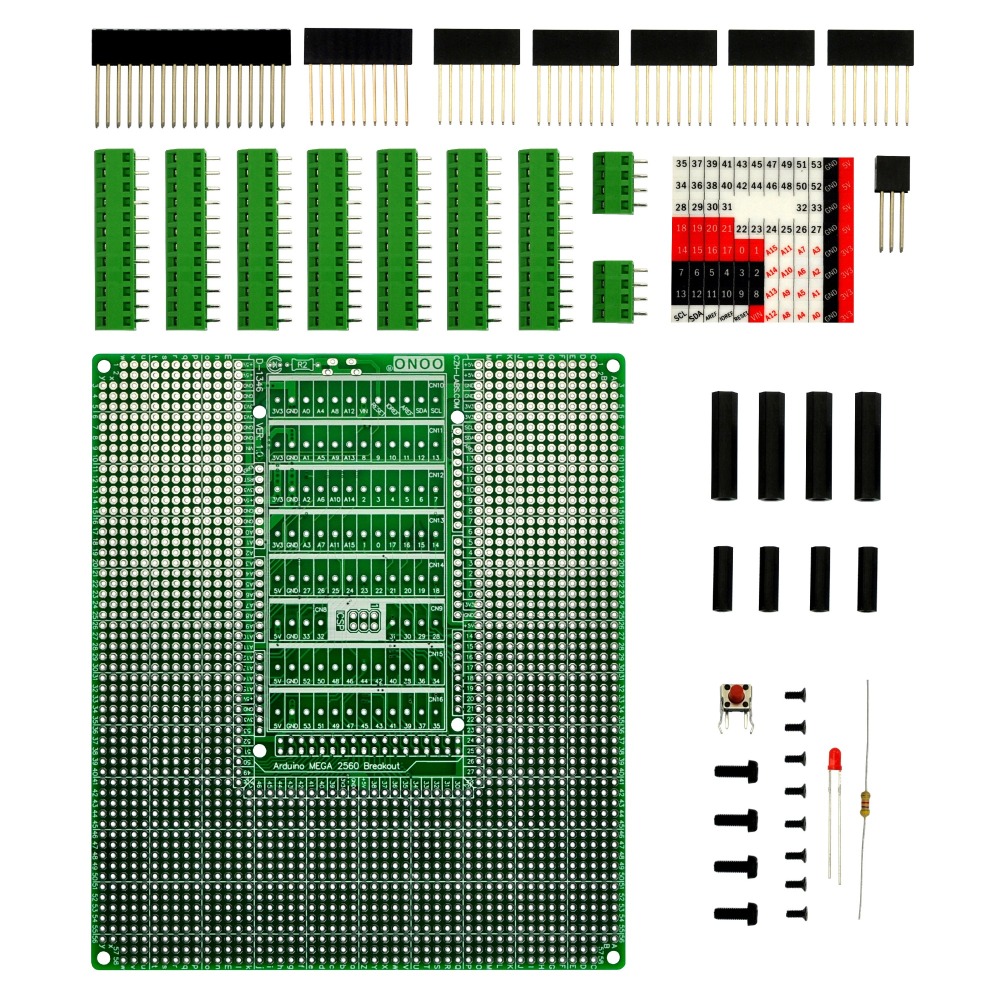

2, The kit include prototype PCB, terminal blocks, terminal block labels, pin head connector, standoffs, screws, reset button switch, resistor and LED. (Note: the item not include Arduino MEGA2560 R3 module).

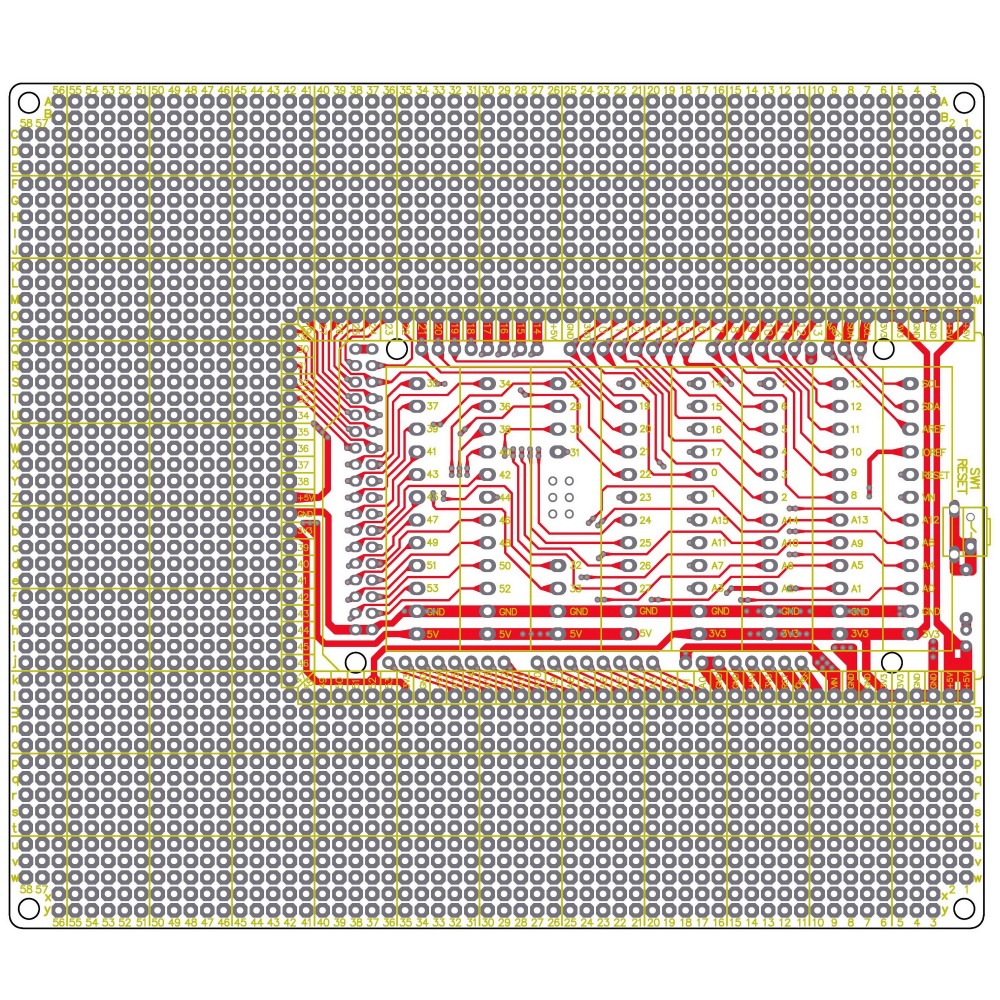

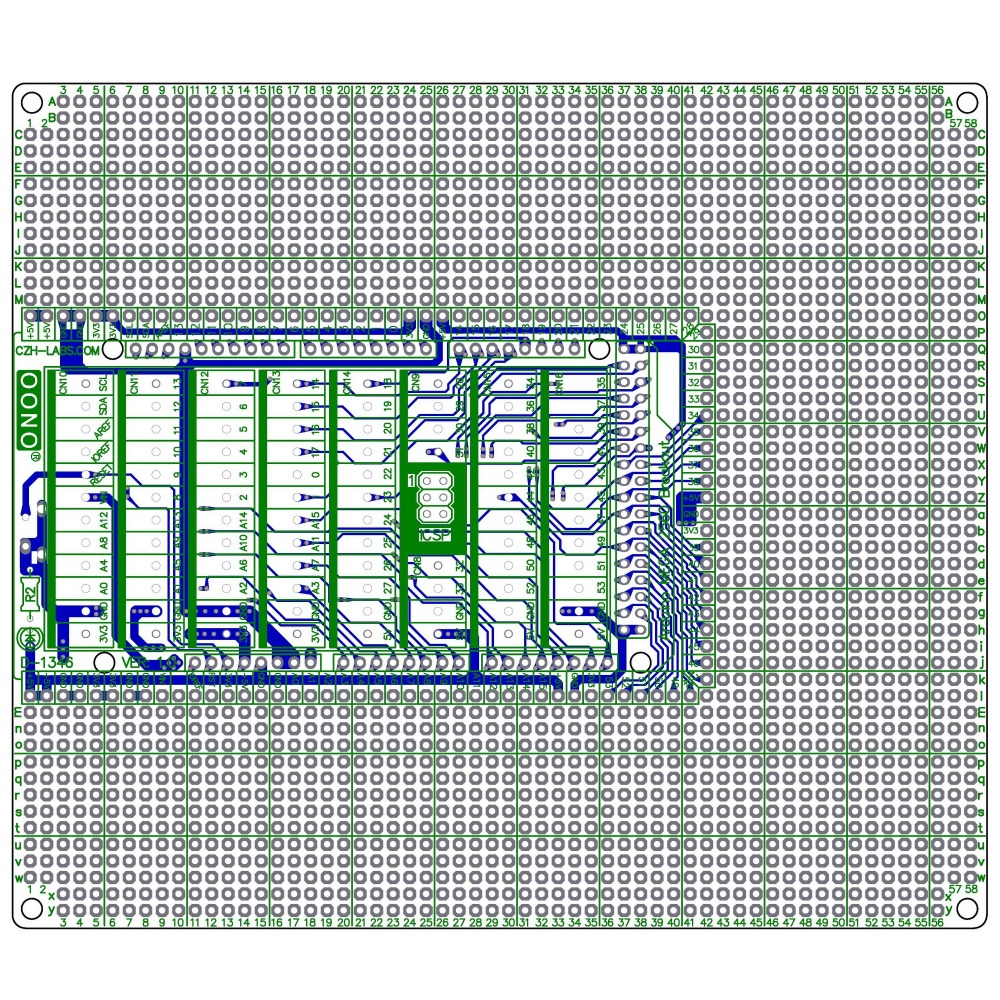

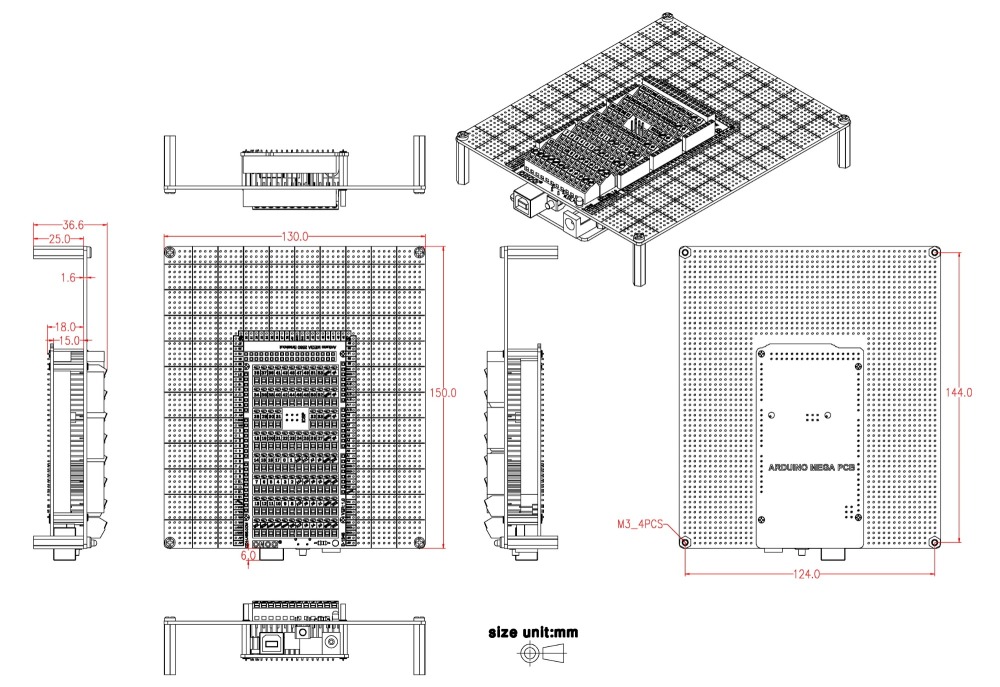

3, PCB: FR-4 fiber glass PCB, dual copper layers, size 130mm x 150mm, pads grid / pitch 2.54mm, hole diameter 1mm.
4, Terminal block pitch 3.5mm/0.138", wire size range 26AWG to 16AWG, strip length 5mm, screw M2 steel, pin header and cage copper.
