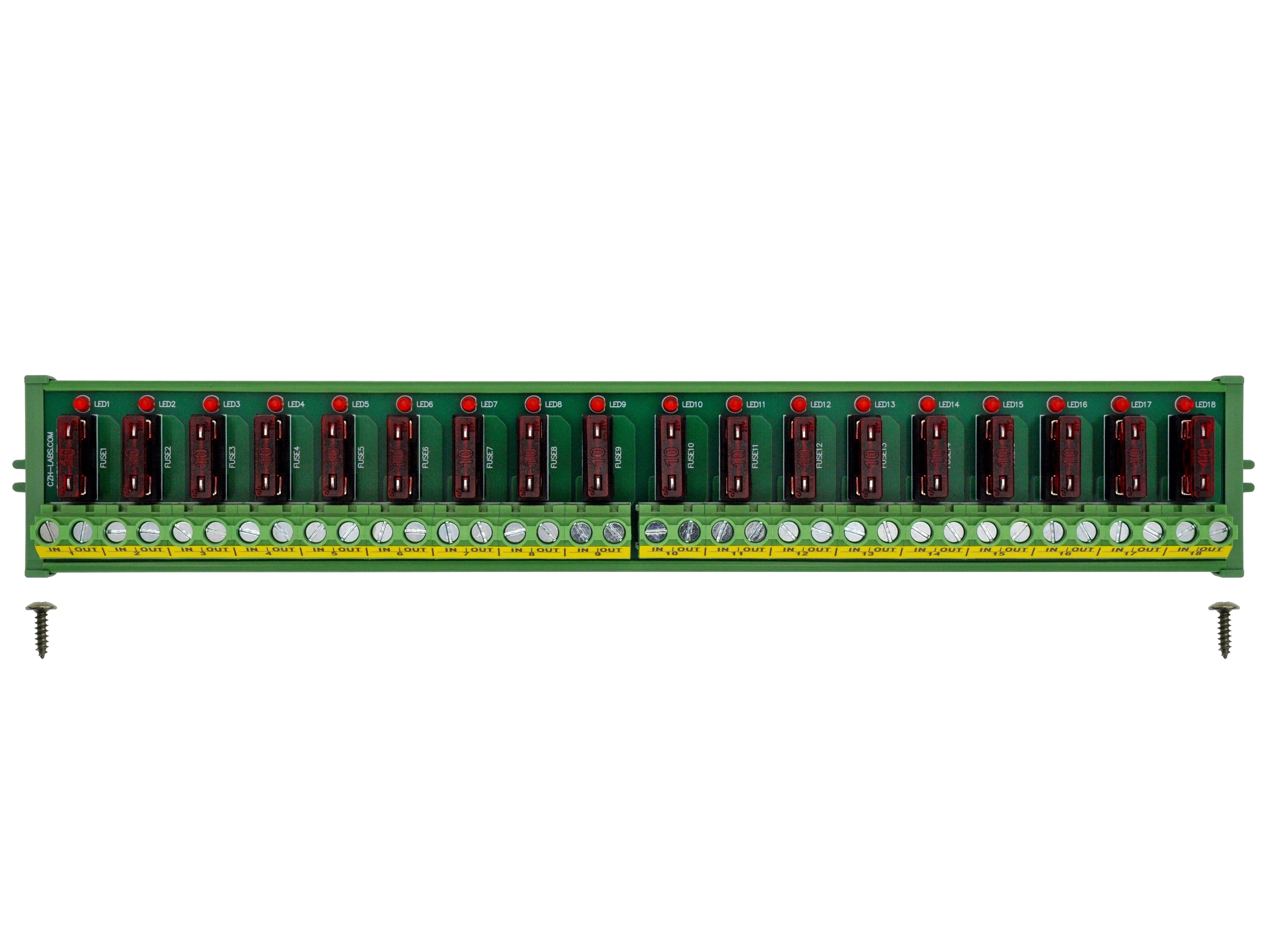

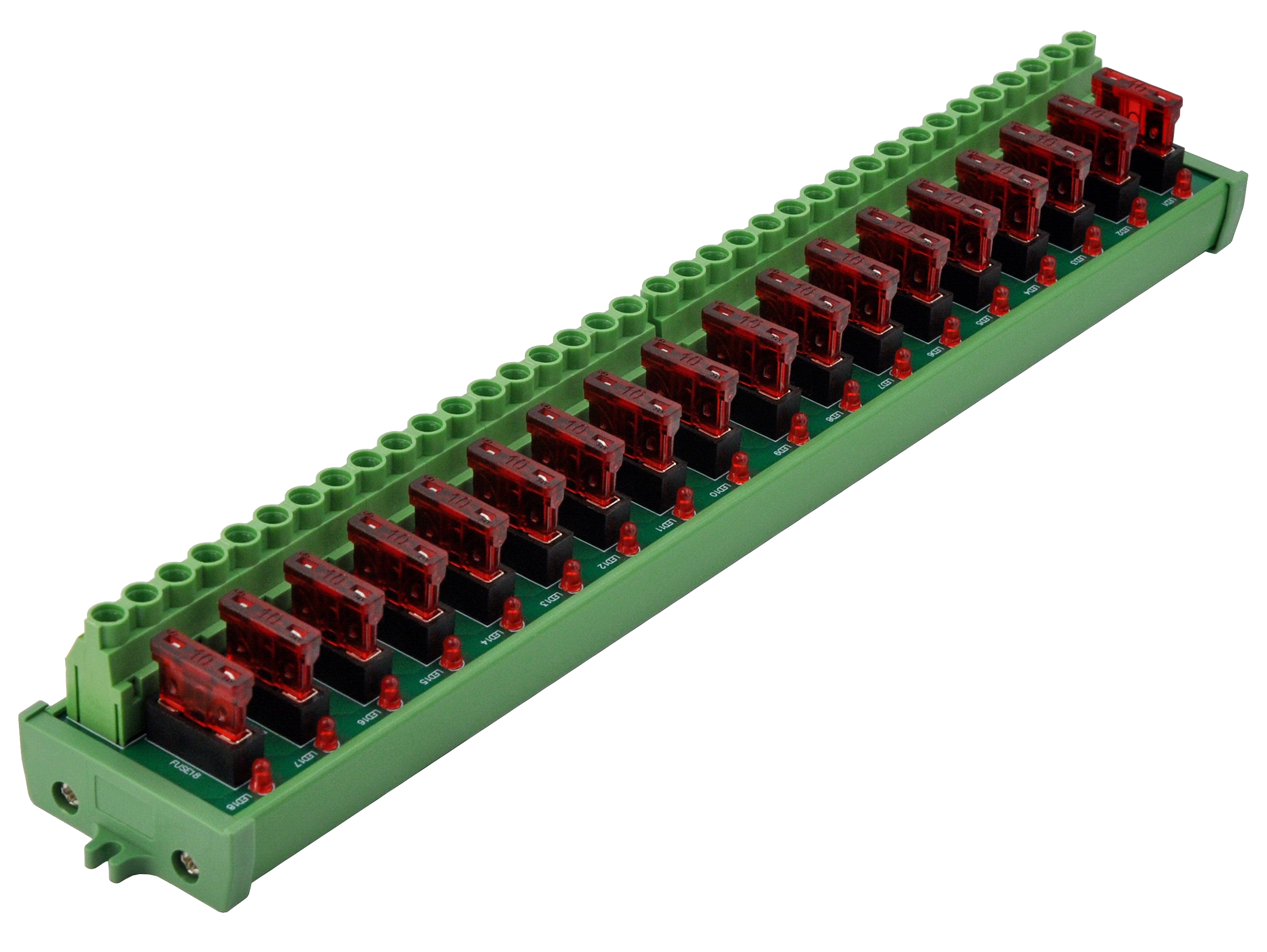

Screw Mount DC 5 - 32V 18 Channel ATO Fuse Module, CZH-LABS D-1709P/32V

Name: Screw Mount DC 5 - 32V 18 Channel ATO Fuse Module, CZH-LABS D-1709P/32V
Brand: Xiken Tech
SKU: D-1709P/32V
Price: 48 USD
Availability: InStock

SKU: D-1709P/32V

$48.00 ~~$48.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

1, Rated voltage DC 32V. Raterd current 10 Amp for per channel.

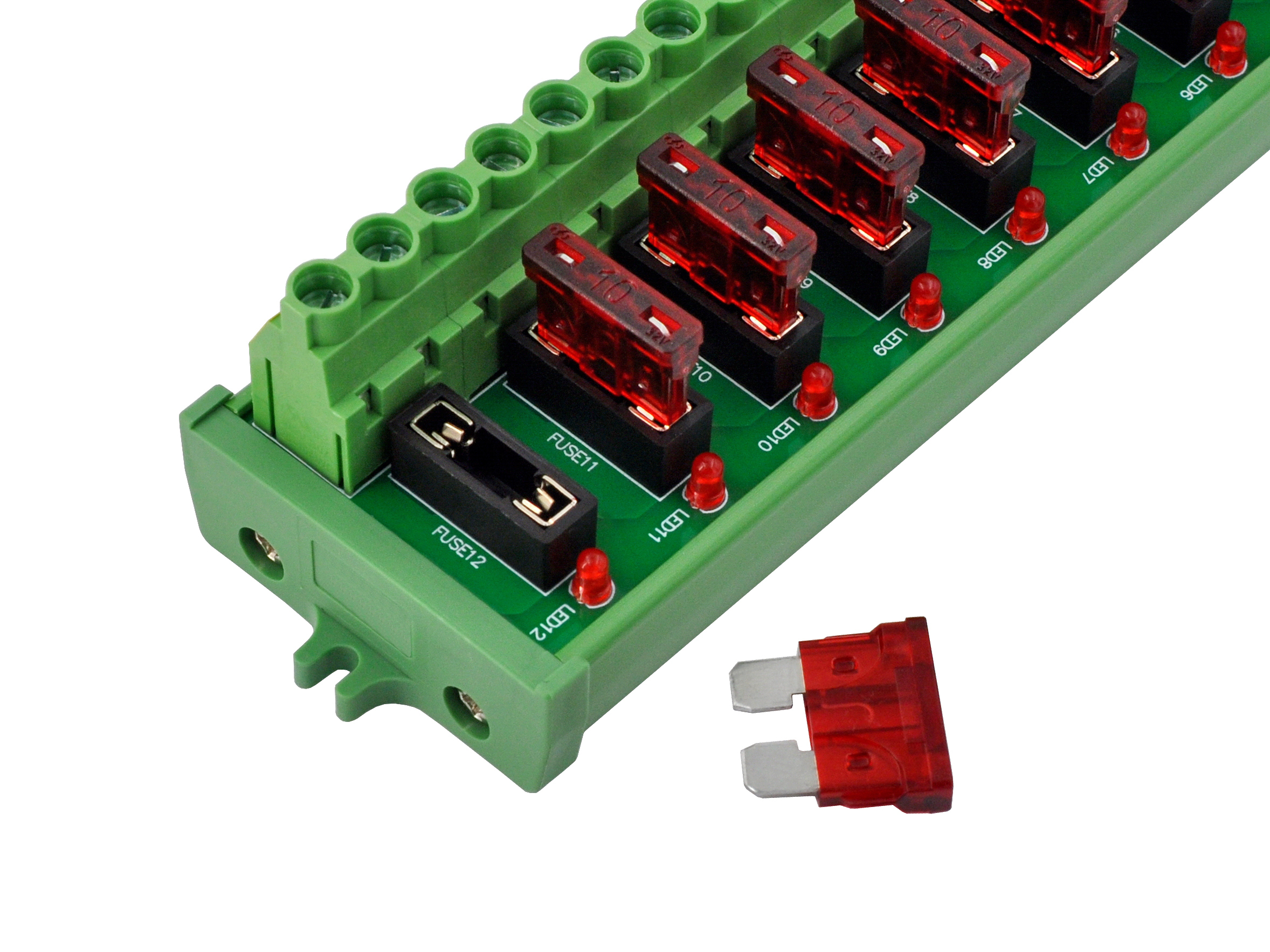

2, Fuse holders for Medium Blade ATO/ATC Fuse, factory-installed fuses 10 Amp. The fuse can be replaced very easily, you can replace these fuses with current ranges of 1 - 30 Amp, but not exceeding 30 Amp.

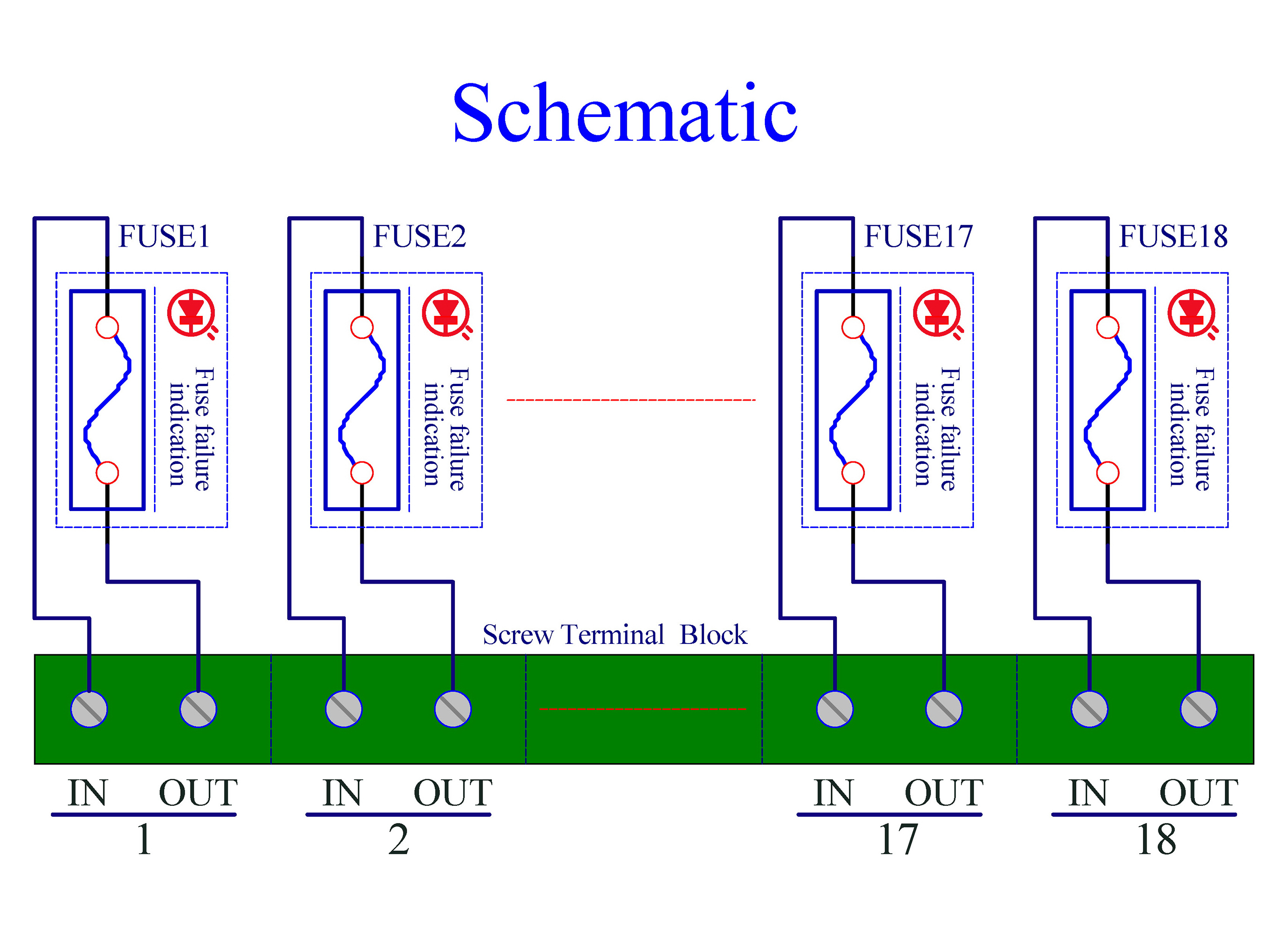

3, Each channel is equipped with a red fault indicator light. When a load is connected and the fuse is blown, the indicator light will light up to serve as a reminder (if no load is connected to form a current loop, the indicator light will not light up).

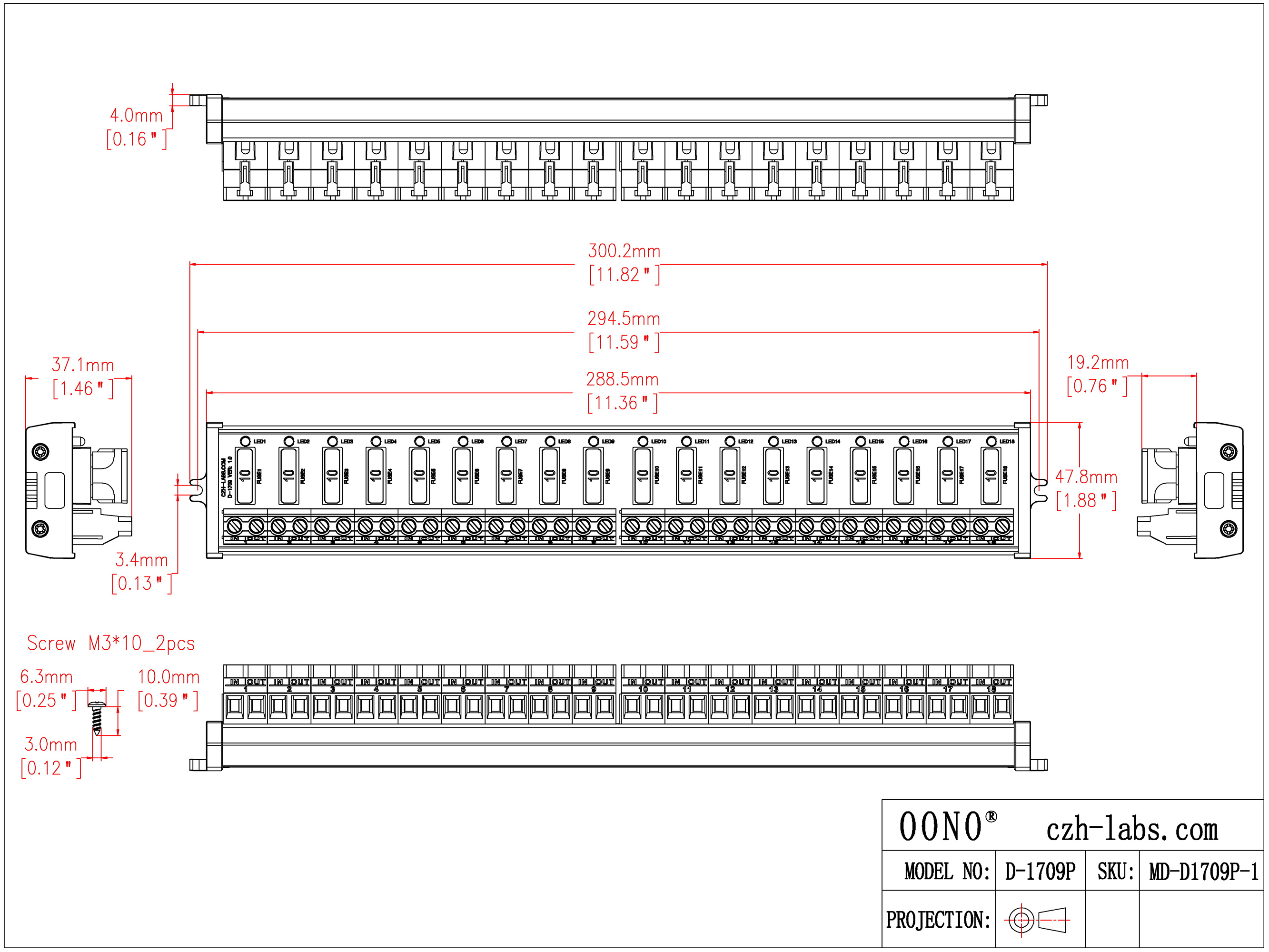

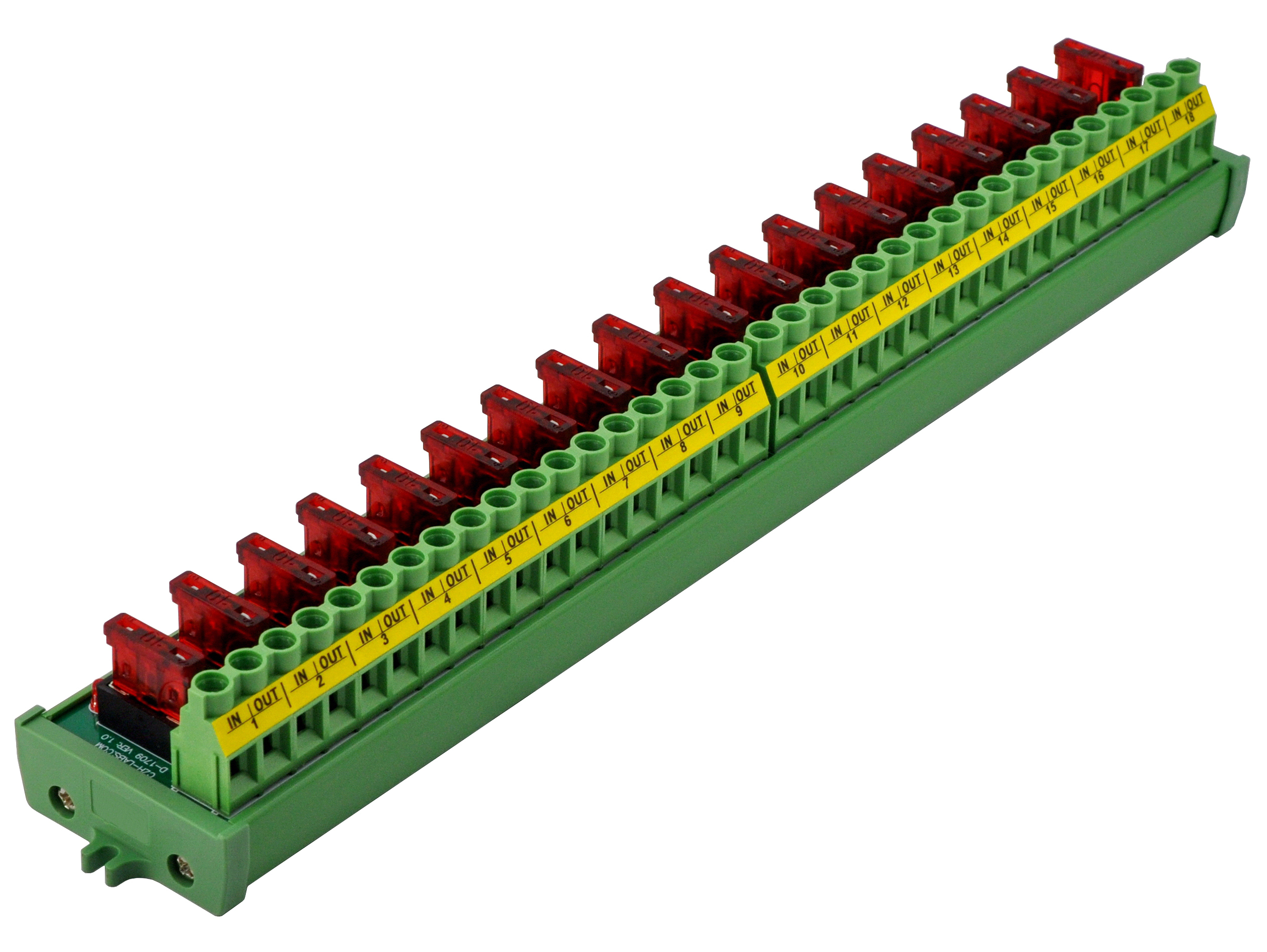

4, Terminal Block: Maximum current 30 Amp. Pin pitch 7.62mm/0.3", wire size 26 - 10 AWG / 4 square milliseconds, stripping length 8mm, Metric M3 slotted screw.

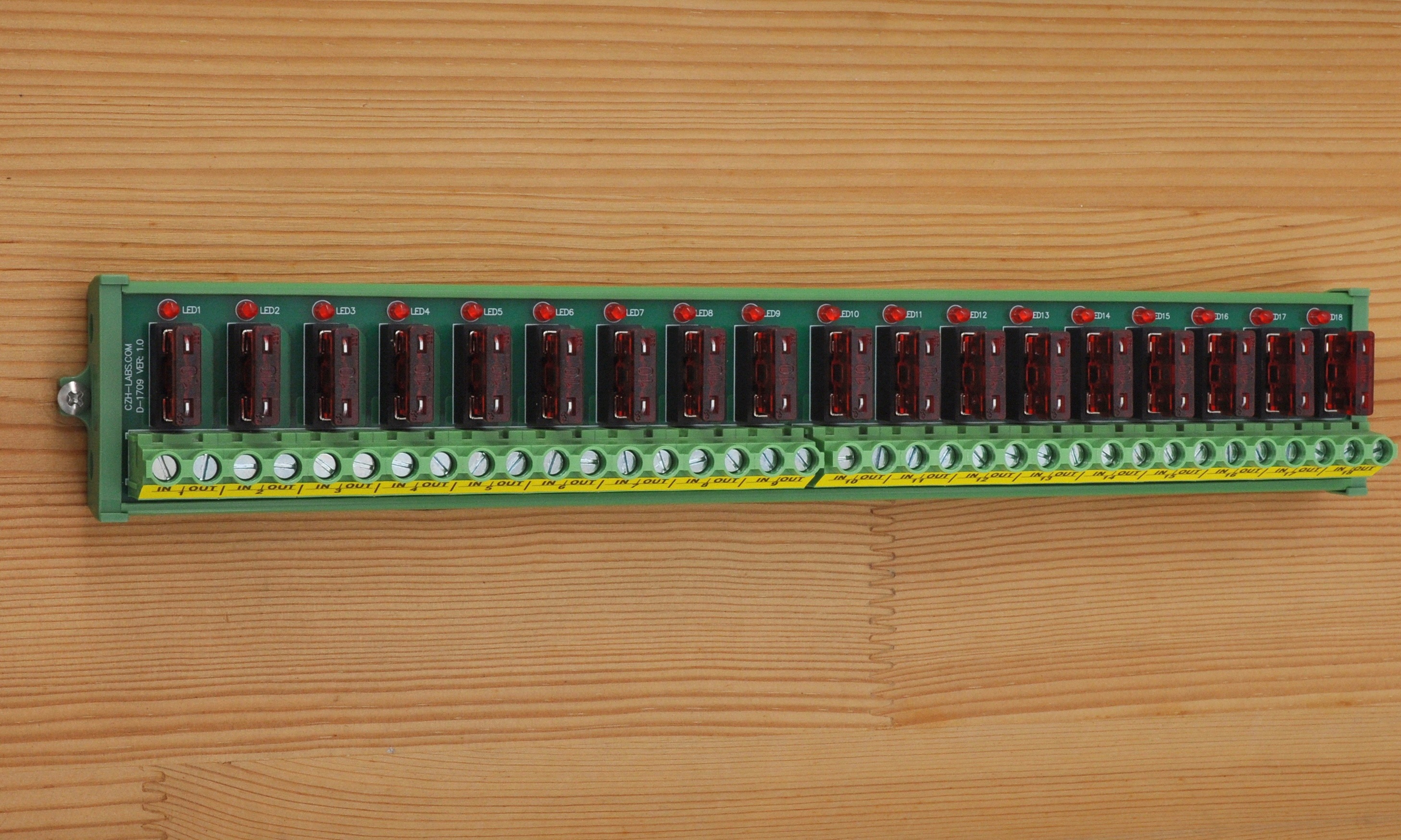

5, High quality fireproof nylon material mount carrier, included two M3 x 10mm wood screws, you can easily mount it on a wooden board.
6, UL CE certified screw mount carrier. UL VDE CCC certified fuse. UL 94-V0 certified FR-4 fiberglass PCB. UL CE CQC certified terminal blocks.
7, Operating Temperature: -20 to 85C.
