FEATURES:

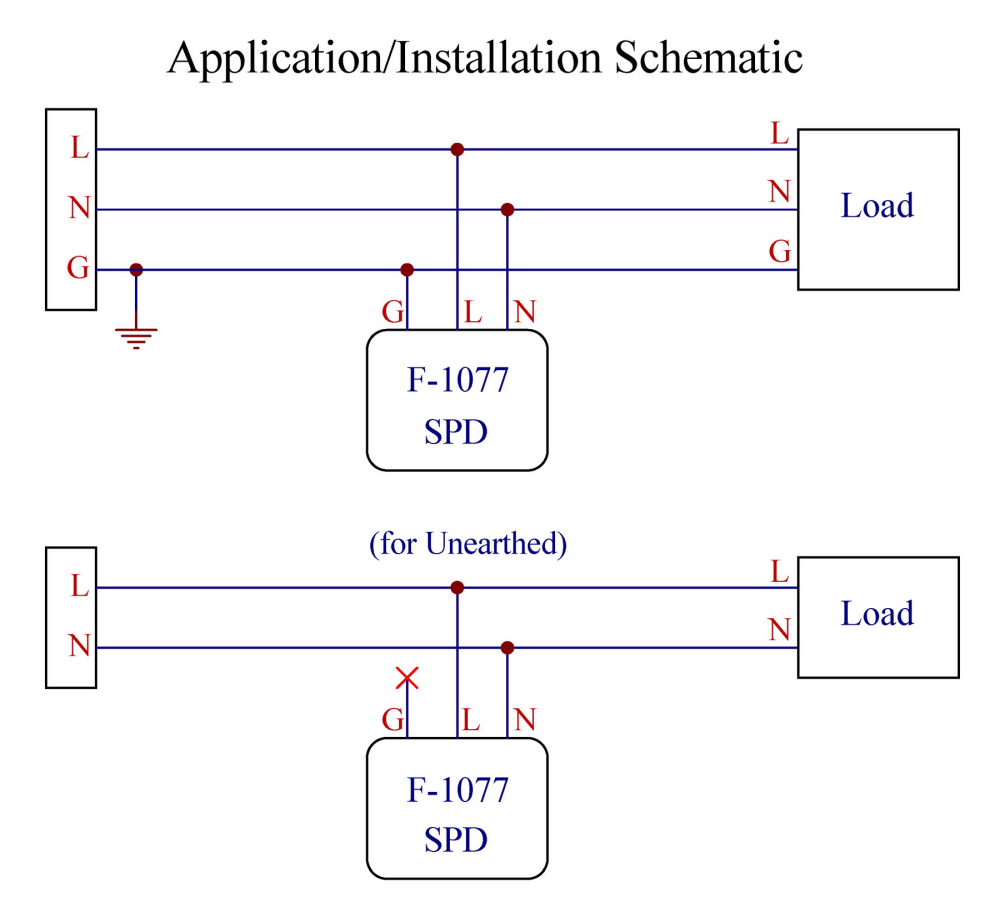

1, OONO F-1077, Safeguard your HVAC equipment and home appliances with the Surge Protective Device, offering three modes of protection (L-N, L-G, N-G) to shield against power surges and prevent potential damage.
2, T-MOV surge protection technology: The T-MOV varistors offer quick thermal response due to the close proximity of the integrated thermal element to the MOV body, avoiding the danger of MOV overheating or even burning.
3, A green LED indicator provides the status of protection, ON = protected, OFF = unprotected (must replace SPD).

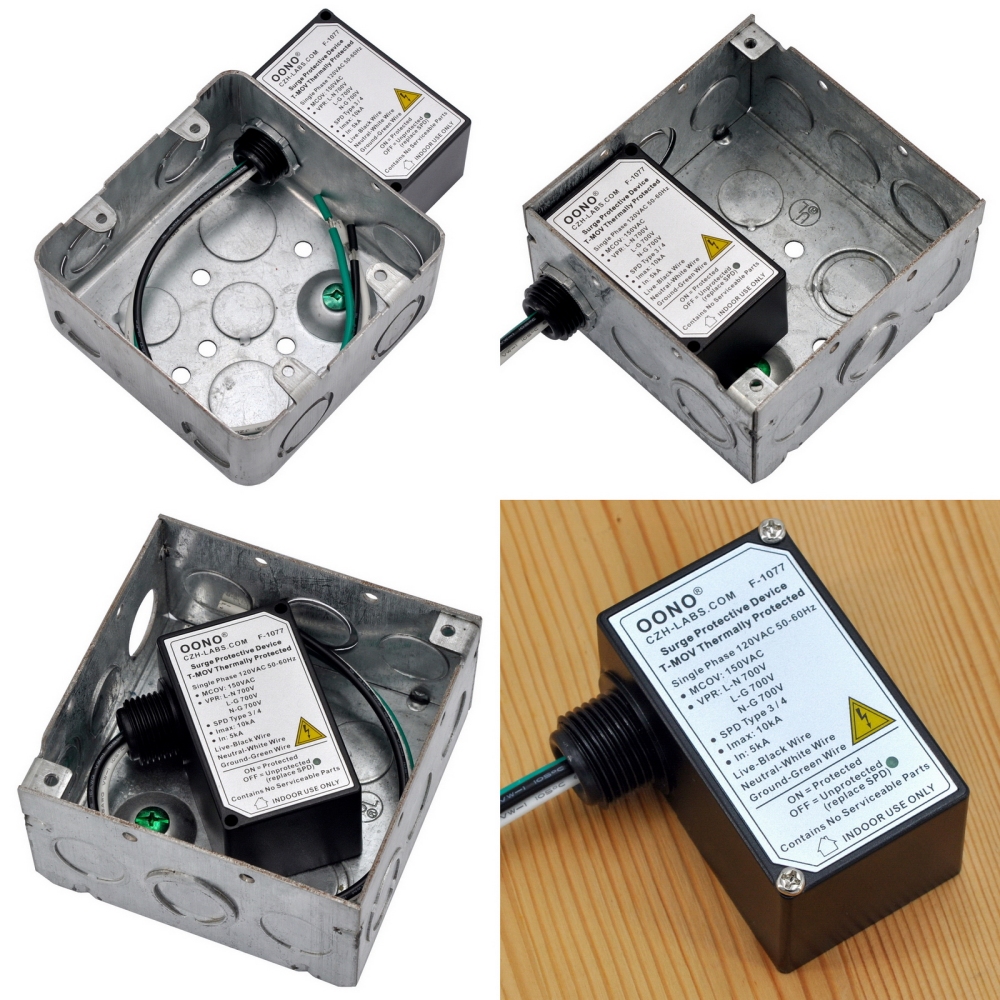

4, Polycarbonate plastic enclosure with a NPT 1/2” mounting nipple, LED indicator and pre-wired for a money-saving installation that is easy and quick.

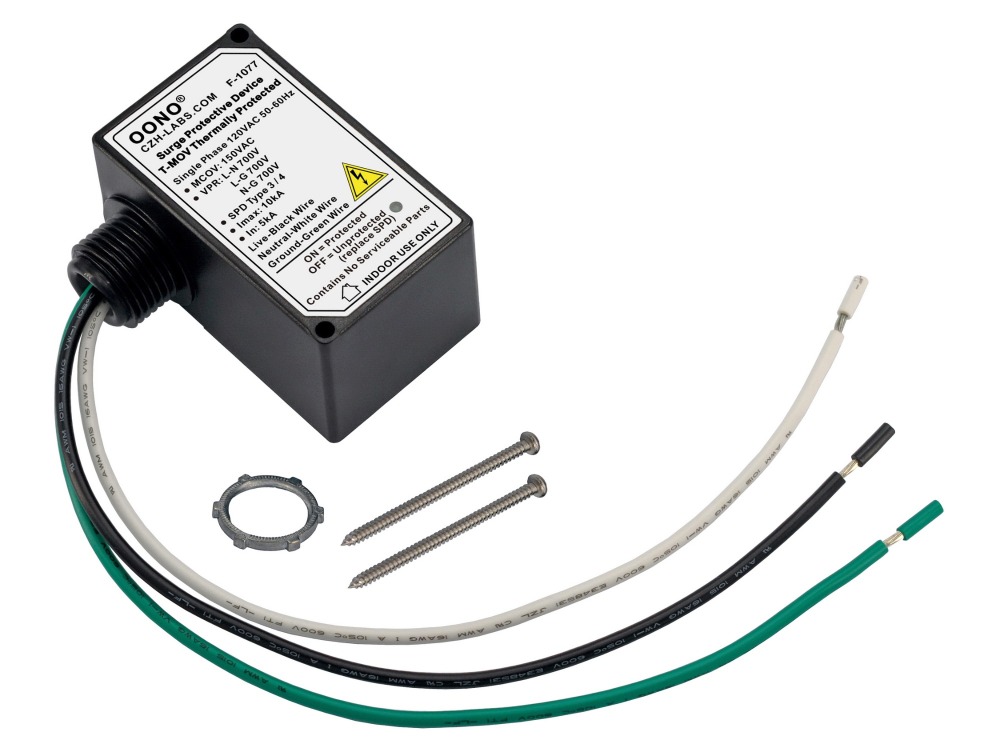

5, Packing list: 1x SPD module, 1x NPT 1/2” Zinc alloy conduit locknut, 2x M3x50mm screws.
SPECIFICATIONS:
Normal continuous operating voltage: Single phase 120VAC 50-60Hz
Maximum continuous operating voltage (MCOV): 150VAC
Voltage Protection Rating (VPR): 700V, L-N L-G N-G
Nominal discharge current (In): 5k Amps (8/20 μs)
Maximum discharge current (Imax): 10k Amps (8/20 μs)
Wire length: 230mm / 9”, UL AWM Style 1015, 16 AWG
Operating temperature: -20 to 60C / -4 to 140F
Enclosure material: Polycarbonate plastic.

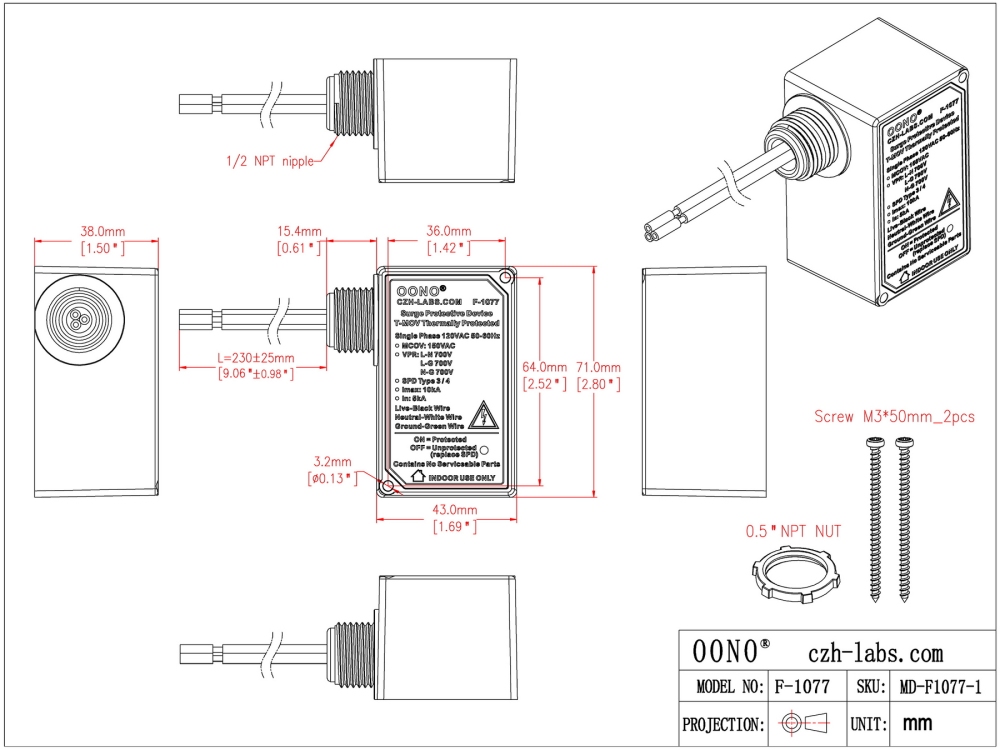

Enclosure size: 71mm x 59mm x 38mm / 2.8” x 2.3” x 1.5”
Net weight: 76g
