FEATURES:

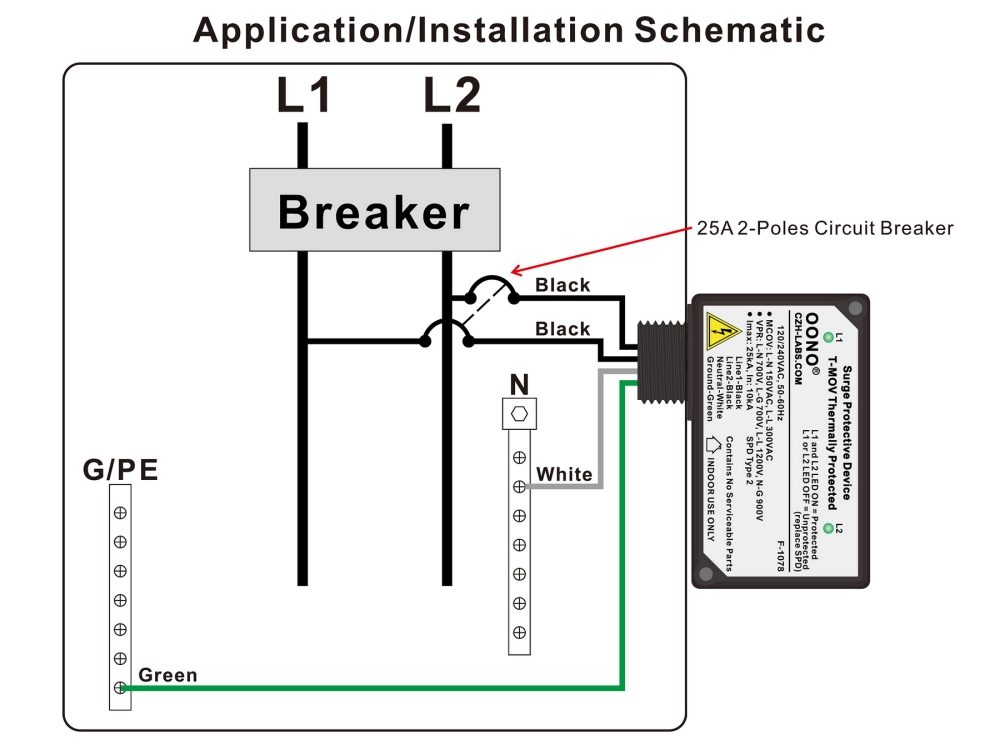

1, Split-phase 120/240VAC Surge Protective Device, universally connects to any manufacturer’s load center (breaker box), easy to mount cable protection modules. Safeguard your HVAC equipment and home appliances with the Surge Protective Device, offering four modes of protection (L-L, L-N, L-G, N-G) to shield against power surges and prevent potential damage.
2, T-MOV surge protection technology: The T-MOV varistors offer quick thermal response due to the close proximity of the integrated thermal element to the MOV body, avoiding the danger of MOV overheating or even burning.

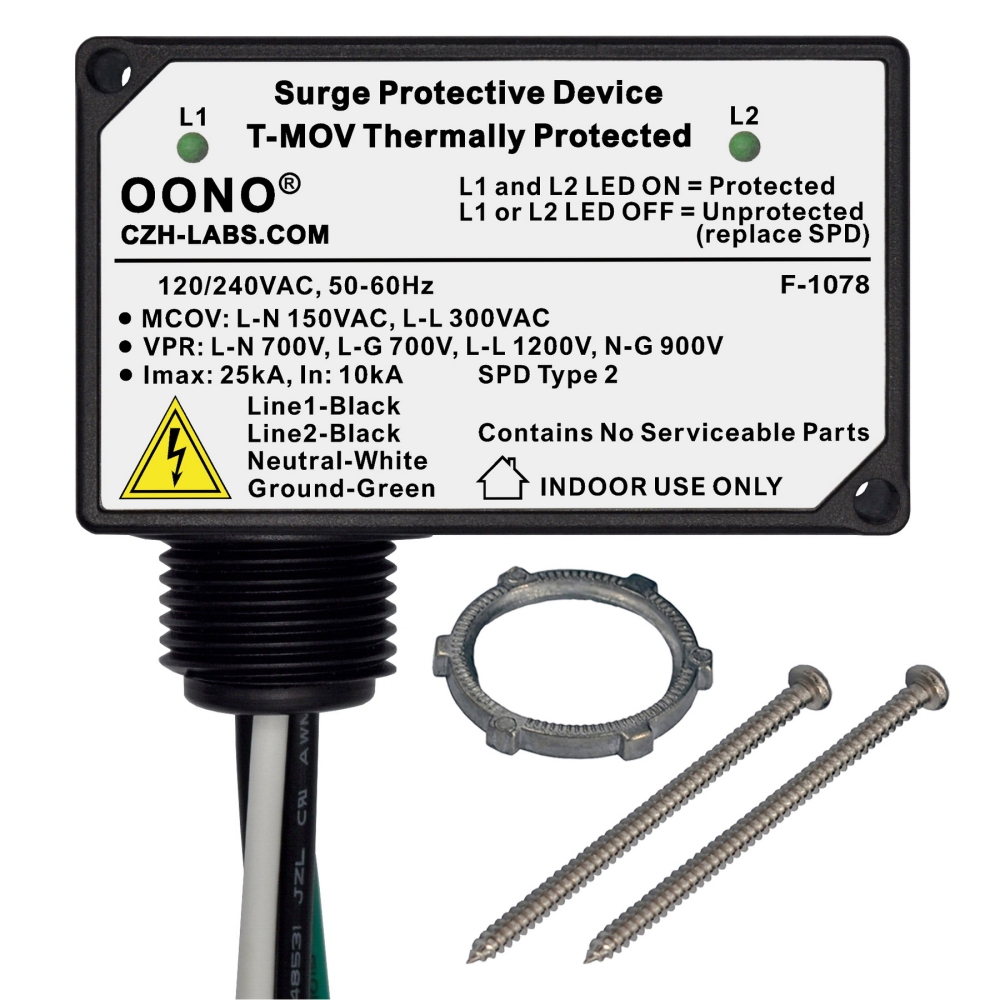

3, Two green LED indicators provides the status of protection, ON = protected, OFF = unprotected (must replace SPD).

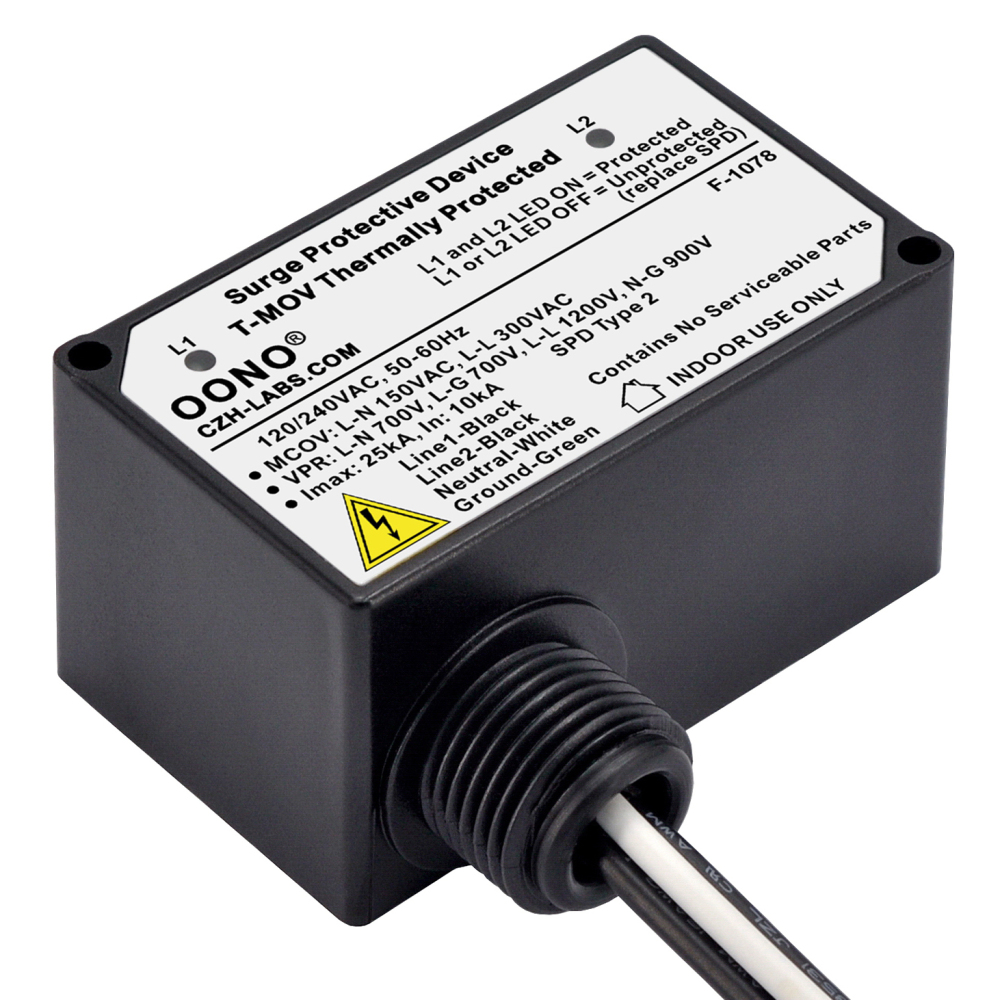

4, Polycarbonate plastic enclosure with a NPT 1/2” mounting nipple, LED indicator and pre-wired for a money-saving installation that is easy and quick.

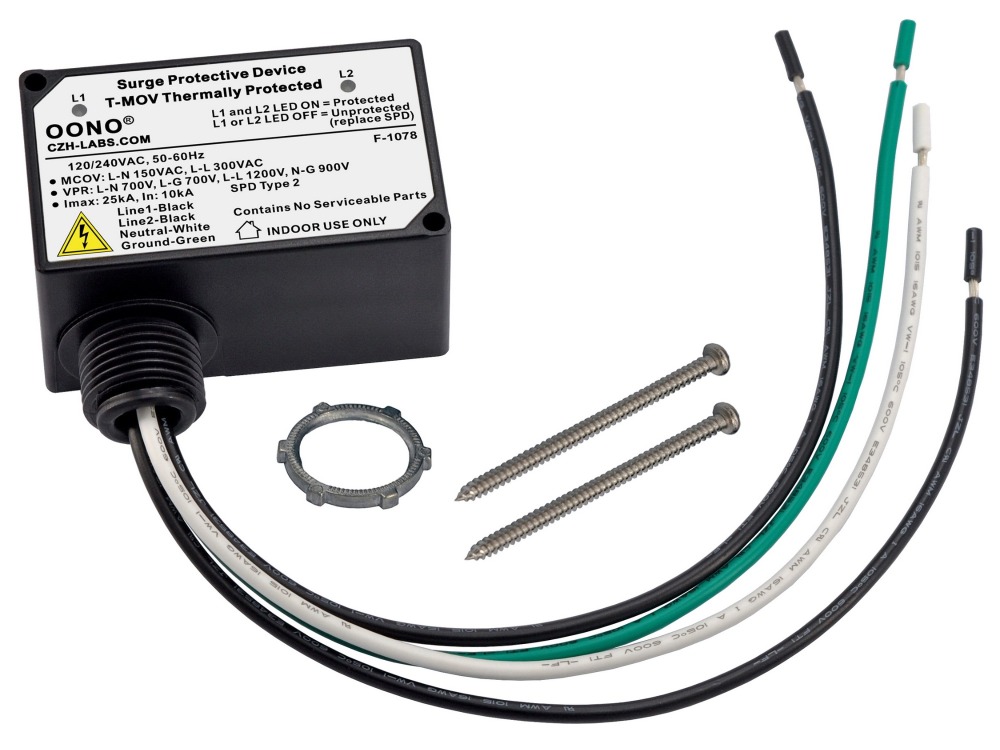

5, Packing list: 1x SPD module, 1x NPT 1/2” Zinc alloy conduit locknut, 2x M3x50mm screws.
SPECIFICATIONS:
Normal continuous operating voltage: Split phase 120/240VAC 50-60Hz
Maximum continuous operating voltage (MCOV): L-N 150VAC, L-L 300VAC
Voltage Protection Rating (VPR): L-N L-G 700V, L-L 1200V, N-G 900V
Nominal discharge current (In): 10k Amps (8/20 μs)
Maximum discharge current (Imax): 25k Amps (8/20 μs)
Wire length: 500mm / 20”, UL AWM Style 1015, 16 AWG
Operating temperature: -20 to 60C / -4 to 140F
Enclosure material: Polycarbonate plastic.

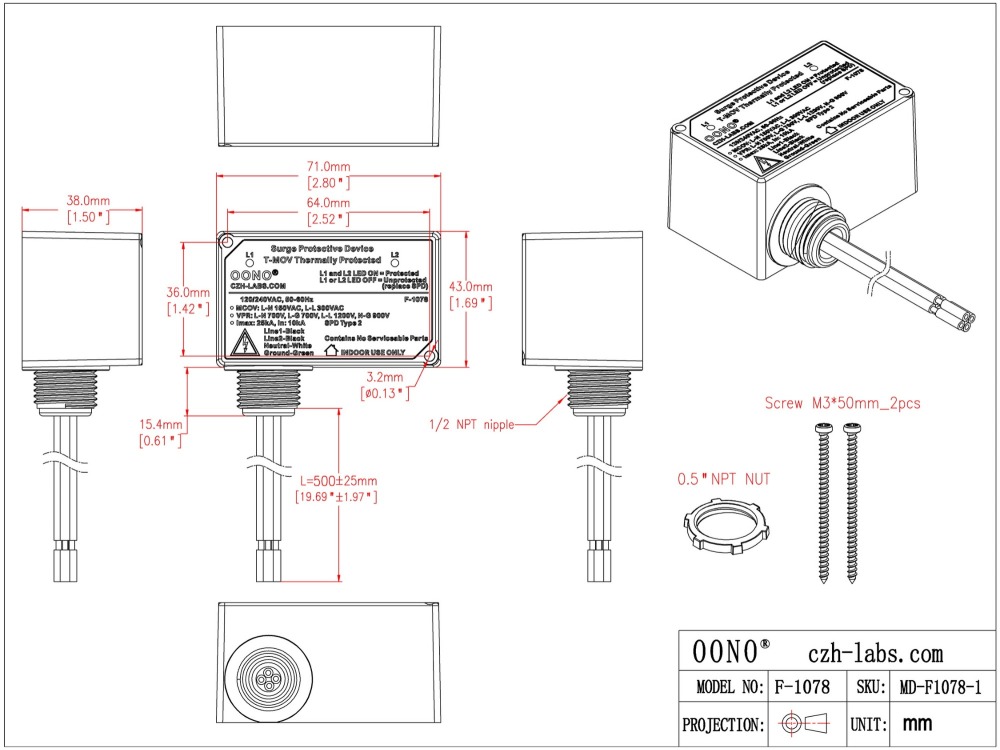

Enclosure size: 71mm x 59mm x 38mm / 2.8” x 2.3” x 1.5”
Net weight: 150g
