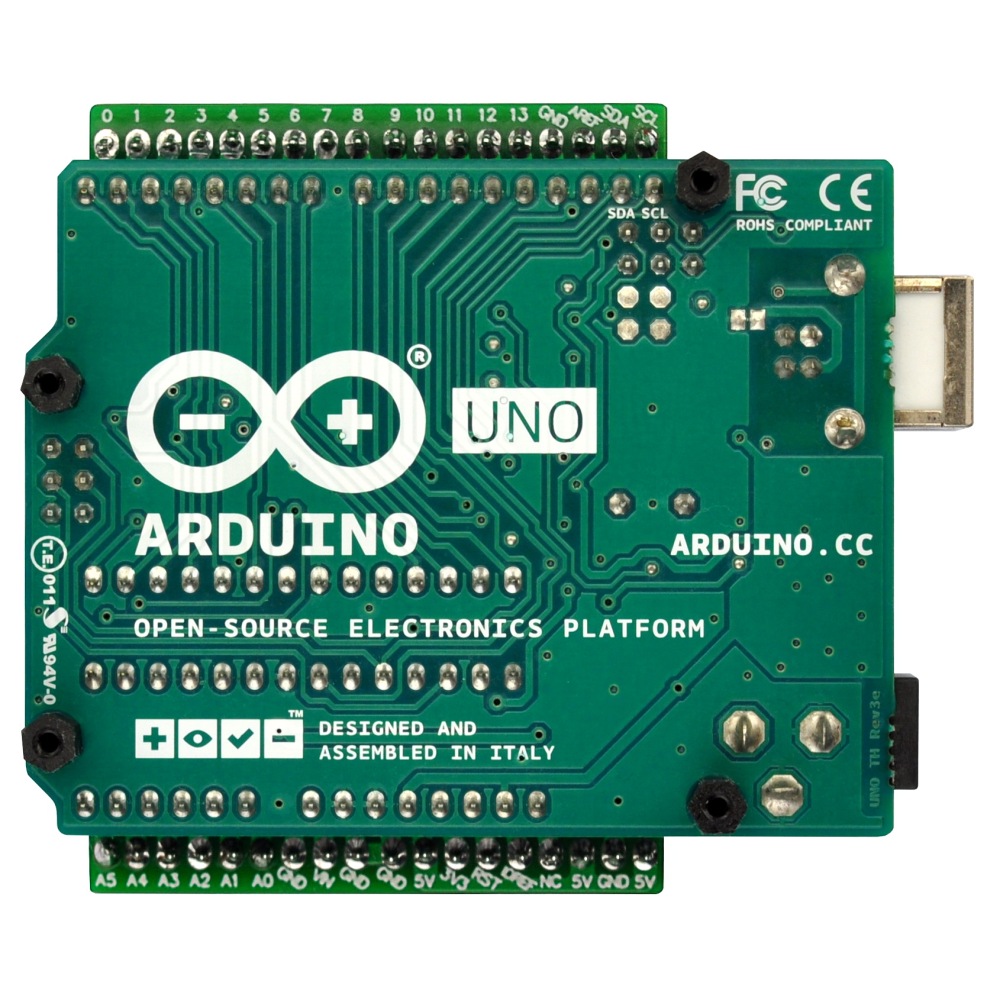

Ultra-small GPIO Terminal Block Breakout Board Module for Arduino UNO R3

Name: Ultra-small GPIO Terminal Block Breakout Board Module for Arduino UNO R3
Brand: Xiken Tech
SKU: D-1408
Price: 15.9 USD
Availability: InStock

SKU: D-1408

$15.90 ~~$15.90~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

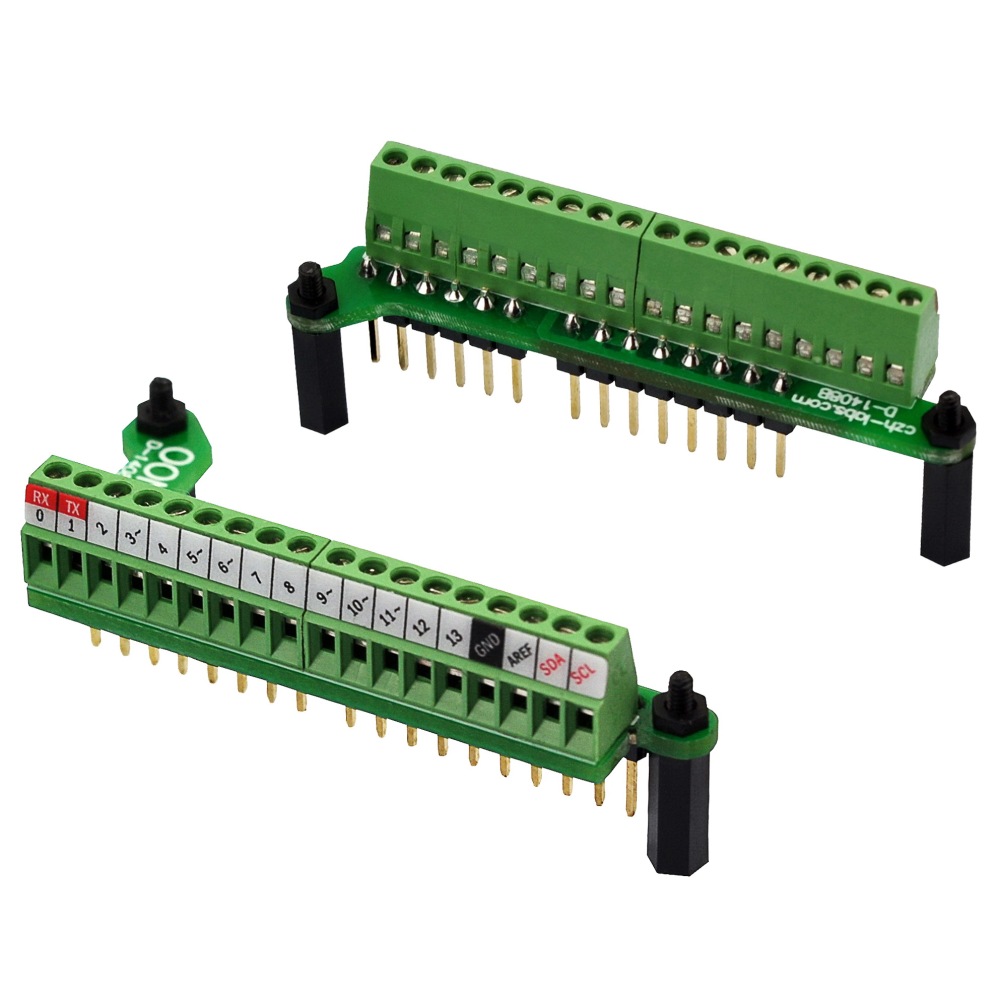

1, The item has been soldered and assembled. Support for Arduino Uno R3.
2, Terminal block pitch 2.54mm/0.1", wire size range 28AWG to 18AWG, strip length 4.5mm, screw M1.6 steel, pin header and cage copper.
3, FR-4 fiber glass PCB, dual copper layers.

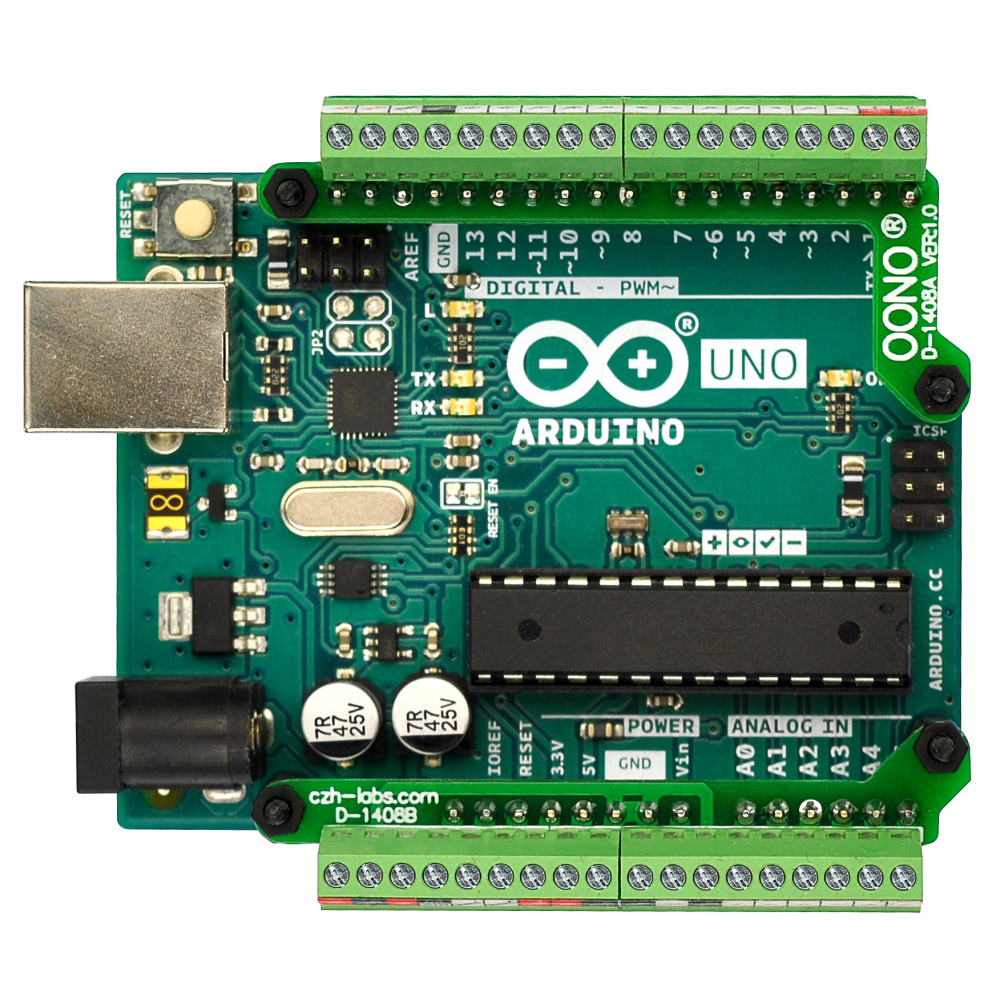

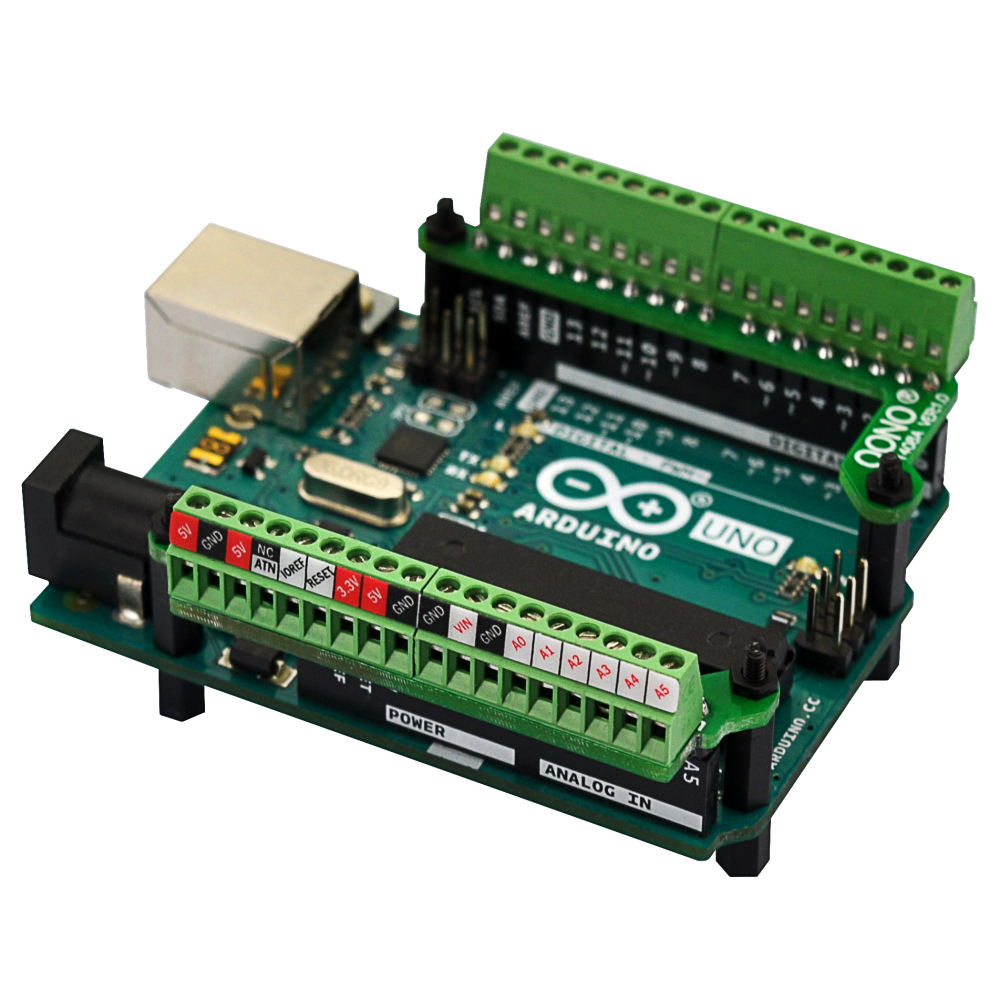

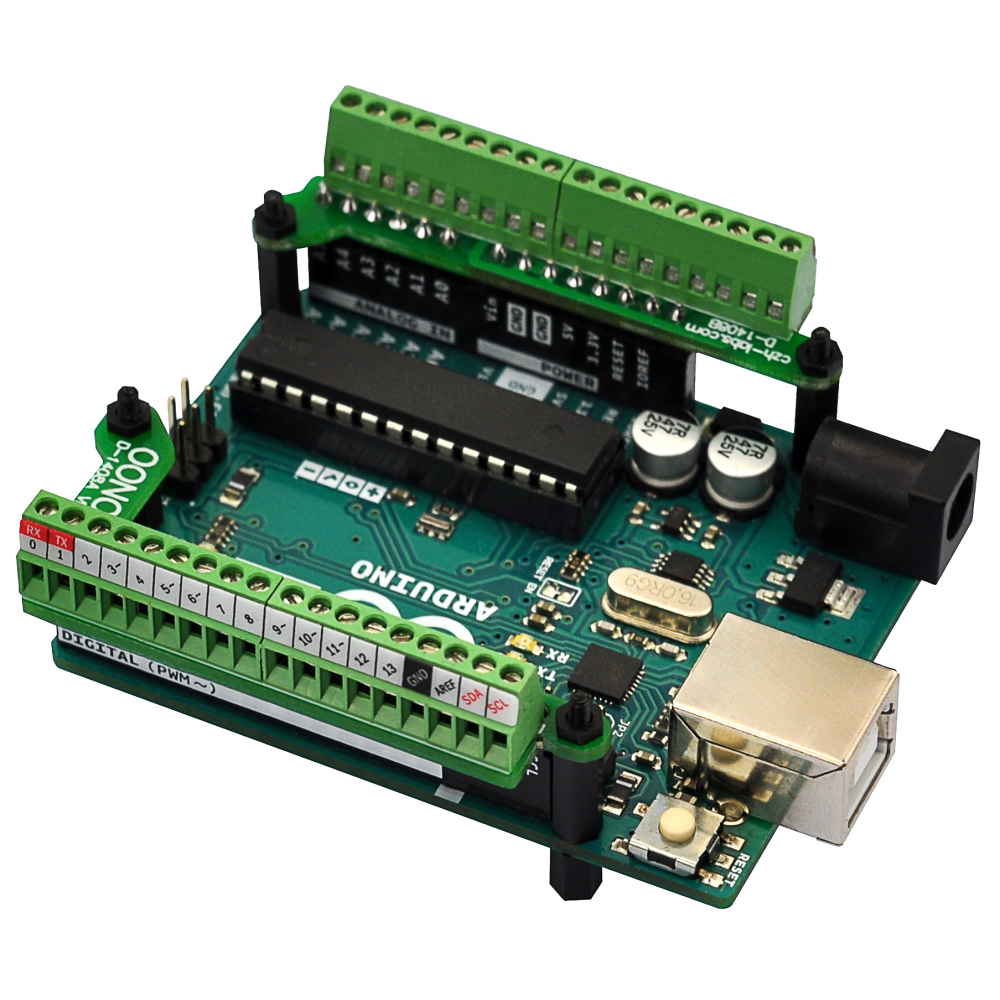

4, Pin header connect to Arduino board. The breakout board is firmly fixed to Arduino-Uno through standoffs and nut, and will not shake.

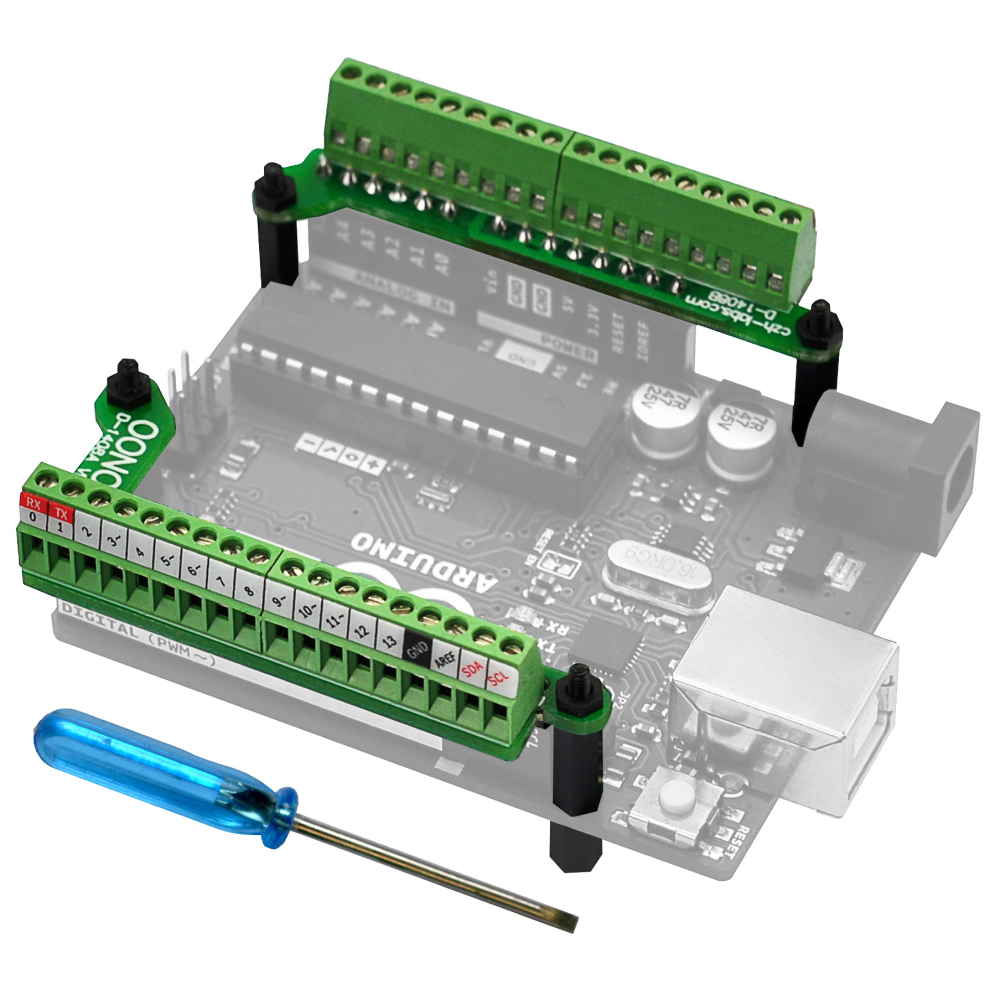

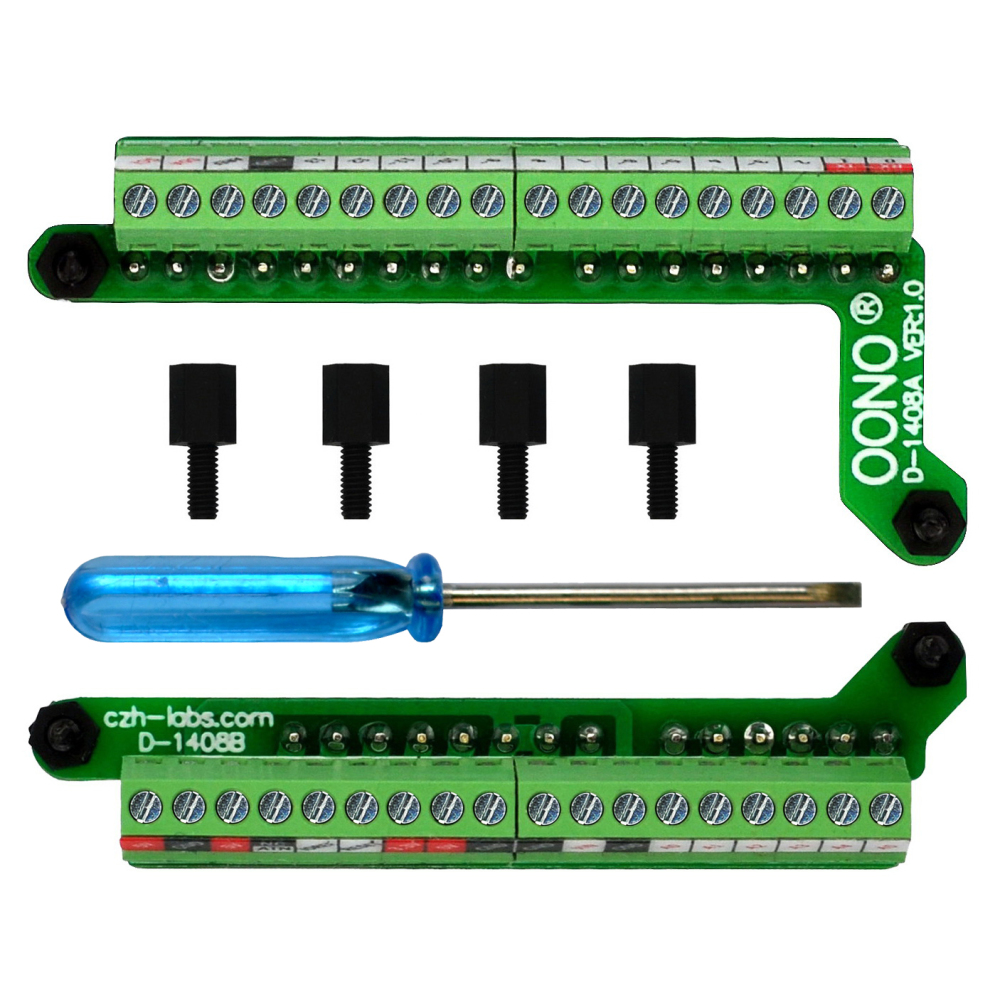

5, Packing list: 2x(1 set, A and B each one) terminal block breakout modules, 4x 11mm nylon standoffs. 4x 6mm nylon standoffs. 4x nylon nuts, 1x small slotted screwdriver (NOTE: the item not include Arduino Uno module).
